SELECT A DIAGRAM

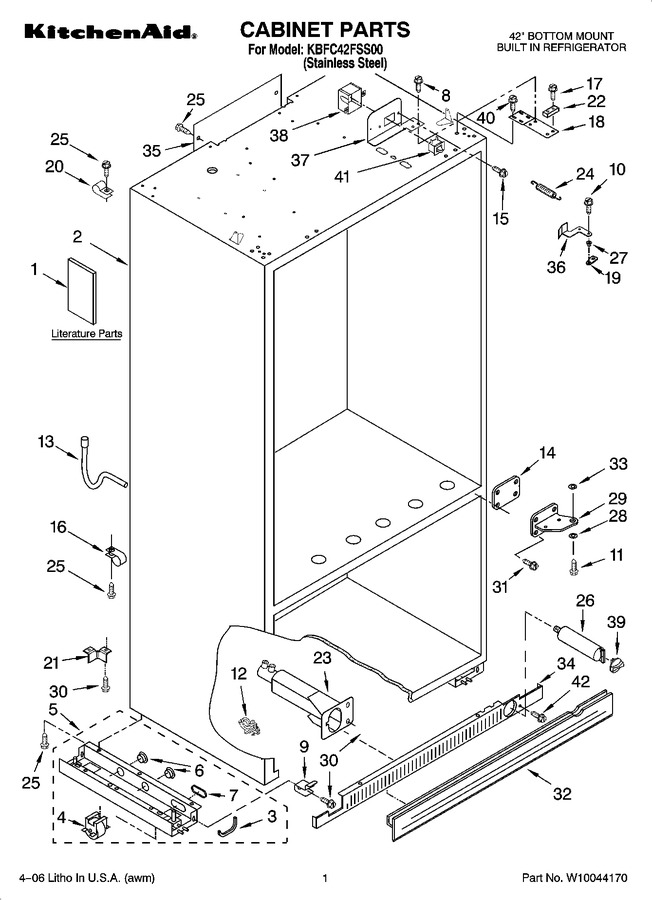

01 - Cabinet Parts


02 - Cabinet And Breaker Trim Parts


03 - Top Grille And Unit Cover Parts


04 - Refrigerator Liner Parts


05 - Freezer Liner Parts


06 - Shelf Parts


07 - Refrigerator Door Parts


08 - Freezer Door And Basket Parts


09 - Upper Unit Parts


10 - Lower Unit And Tube Parts


11 - Icemaker Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2316852		Service & Wiring Sheet		Appelez-nous	-
1	2317821		Use & Care Guide		Appelez-nous	-
1	2309317		Energy Label		Appelez-nous	-
1	2309309		Installation Instructions		Appelez-nous	-
1	2317849		Main Control Service Sheet		Appelez-nous	-
1	2317840		Modular Icemaker Service Sheet		Appelez-nous	-
3	2005004		Grommet, Crossover Tube		Appelez-nous	-
4	WPW10138054		Roller, Front & Rear (4)   (Replaces: 1112023)				$ 45.34
5	W10860448		Support, Leveler Assembly (refrigerator Side)   (Replaces: 2004506)			Immediately	$ 383.00
5	W10860229		Support, Leveler Assembly (freezer Side)   (Replaces: 2004505)				$ 381.83
6	2005006		Grommet, Wiring		Appelez-nous	-
7	2005007		Grommet, Flexible		Appelez-nous	-
8	WP8281164		Screw   (Replaces: 8281164)				$ 11.33
9	2006442		Mounting Bracket, Grill		Appelez-nous	-
10	W11177574		Screw   (Replaces: W10004850)				$ 14.84
11	W10004860		Screw			Immediately	$ 15.50
12	2004514		Clamp		Appelez-nous	-
13	2314064		Tube, Drain				$ 93.88
14	2207470		Shim-hinge, Door			Immediately	$ 52.27
15	WP965173		Screw,8-18 X 3/8   (Replaces: 487415)			Immediately	$ 11.87
16	WP488366		Clamp Tube   (Replaces: 2208136)				$ 11.92
17	W11227370		Screw, Door Stop   (Replaces: W10005070)			Immediately	$ 14.91
18	W11218690		Hinge, Door Refrigerator Top   (Replaces: 2316759)			Immediately	$ 78.29
19	2316860		Cam-closer, Door		Appelez-nous	-
20	W10833902		Clamp, Tube   (Replaces: 2221070)				$ 11.54
21	2006617		Bracket, Support Door		Appelez-nous	-
22	W11403572		Stop, Door   (Replaces: 2316758)			Immediately	$ 70.48
23	WP2209022		Housing, Water Filter   (Replaces: 2209022)			Immediately	$ 246.56
24	W11805224		Spring, Door Closure   (Replaces: 2221242)		Appelez-nous	-
25	W11624204		Screw   (Replaces: 486194)				$ 14.72
26	2255709		Filter, Water		Appelez-nous	-
27	WP2316859		Bushing-arm, Extension   (Replaces: 2316859)			Immediately	$ 54.20
28	WP2004994		Bushing, Hinge (2) (lock-adjustable)   (Replaces: 2004994)			Immediately	$ 8.39
29	W10337505		Hinge, Bottom Refrigerator Door   (Replaces: 2302889)			Immediately	$ 141.32
30	WP489464		Screw 8-18 X 1/2   (Replaces: 489464)			Immediately	$ 8.38
31	W11474472		Screw   (Replaces: 489282)			Immediately	$ 8.63
32	2209025B		Skirt, Grille Bottom				$ 48.90
33	2314023		Bushing, Hinge (2)				$ 48.67
34	2316607B		Grille Base, Front		Appelez-nous	-
35	2215612		Cover, Air Duct		Appelez-nous	-
36	W11298172		Arm, Extension (left)   (Replaces: 2266881)			Immediately	$ 87.43
36	W10847927		Arm, Extension (right)   (Replaces: 2266882)				$ 99.91
37	W10741111		Bracket, Switch (right)   (Replaces: 2221097)				$ 67.37
37	2221096		Bracket, Switch (left)				$ 97.86
38	2215938		Cover, Switch				$ 94.78
39	WP2186494B		Cap Water Filter   (Replaces: 2186494B)			Immediately	$ 55.86
40	W11721628		Screw   (Replaces: 8533913)			Immediately	$ 14.78
41	W11384469		Switch, Rocker Arm (2)   (Replaces: 1118894)			Immediately	$ 39.09
42	WP489464		Screw, 8-18 X 1/2   (Replaces: W10005050)			Immediately	$ 8.38

    View Diagram in Separate Window       Print Part List
