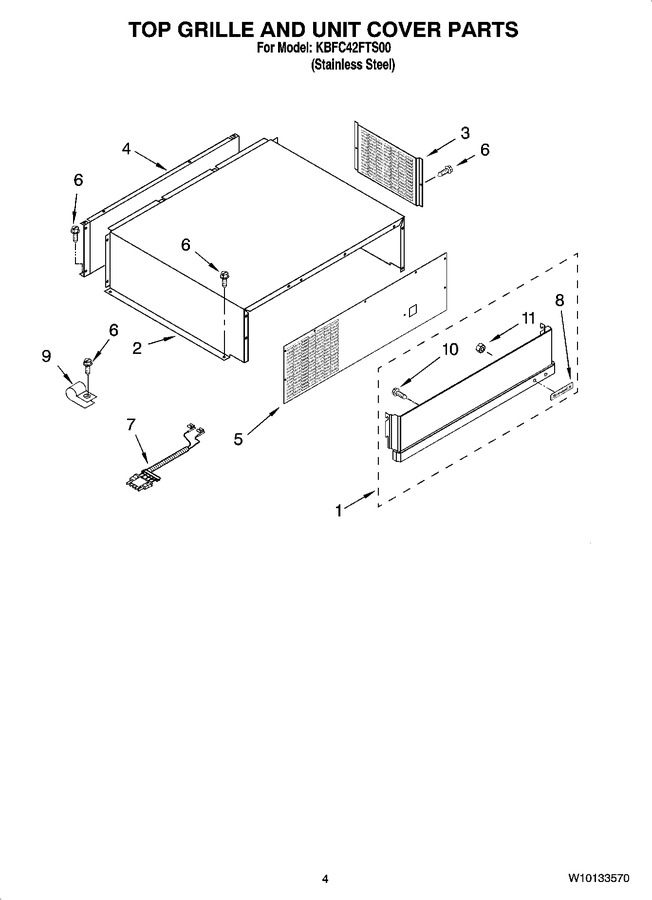

03 - Top Grille And Unit Cover Parts


04 - Refrigerator Liner Parts


05 - Freezer Liner Parts


06 - Shelf Parts


07 - Refrigerator Door Parts


08 - Freezer Door And Basket Parts


09 - Upper Unit Parts


10 - Lower Unit And Tube Parts


11 - Icemaker Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2316737S		Top Grille Assembly		Appelez-nous	-
2	2320502		Cover, Unit		Appelez-nous	-
3	2317881		Grille, Condenser		Appelez-nous	-
4	2256466		Back Panel				$ 327.22
5	2307682		Front, Unit Cover		Appelez-nous	-
6	WP965173		Screw   (Replaces: 487415)			Immediately	$ 11.87
7	2187946		Wire Assembly, Light Switch				$ 97.71
8	2317923S		Nameplate		Appelez-nous	-
9	489348		Clamp		Appelez-nous	-
10	WP489399		Screw (5)   (Replaces: 489399)				$ 7.30
11	WP2004333		Nut   (Replaces: 2004333)				$ 11.24
