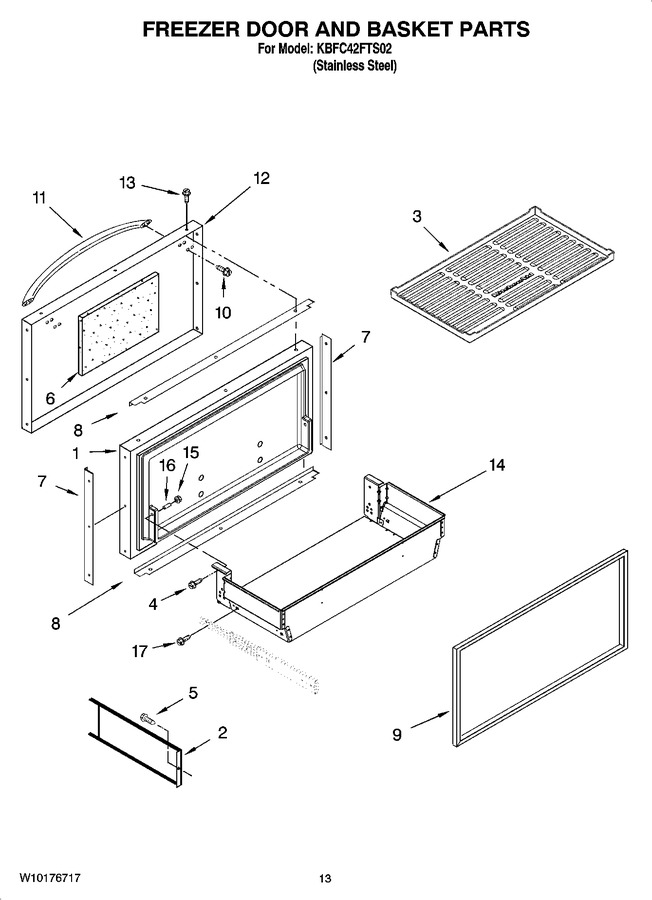

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2327400		Freezer Door (includes 9)		Appelez-nous	-
2	2317101		Divider, Basket (2)		Appelez-nous	-
3	W10665413		Mat, Basket   (Replaces: 2314024)				$ 283.65
4	W10001170		Screw, 5/16 X 1		Appelez-nous	-
5	WPW10001160		Screw   (Replaces: W10001160)				$ 10.33
6	2309219		Filler, Foam				$ 277.62
7	2316788		Spacer, Door Edge - Side		Appelez-nous	-
8	2309221		Spacer, Door Edge Top & Bottom		Appelez-nous	-
9	2309216		Door Gasket, Magnetic				$ 318.75
10	WP308544		Screw, 10-24 X 1/2   (Replaces: 308544)			Immediately	$ 8.30
11	WP2316868		Handle, Door   (Replaces: 2316868)			Immediately	$ 281.43
12	2316733		Skin, Door		Appelez-nous	-
13	WP8281250		Screw 8-15 X 1/2   (Replaces: 8281250)				$ 11.42
14	2327532		Basket Assembly, Freezer		Appelez-nous	-
15	WP2207454		Nut, Hex   (Replaces: 2207454)				$ 11.38
16	W10001190		Washer				$ 8.80
17	W10001170		Screw, 5/16-24 X 1 (basket To Slide)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
