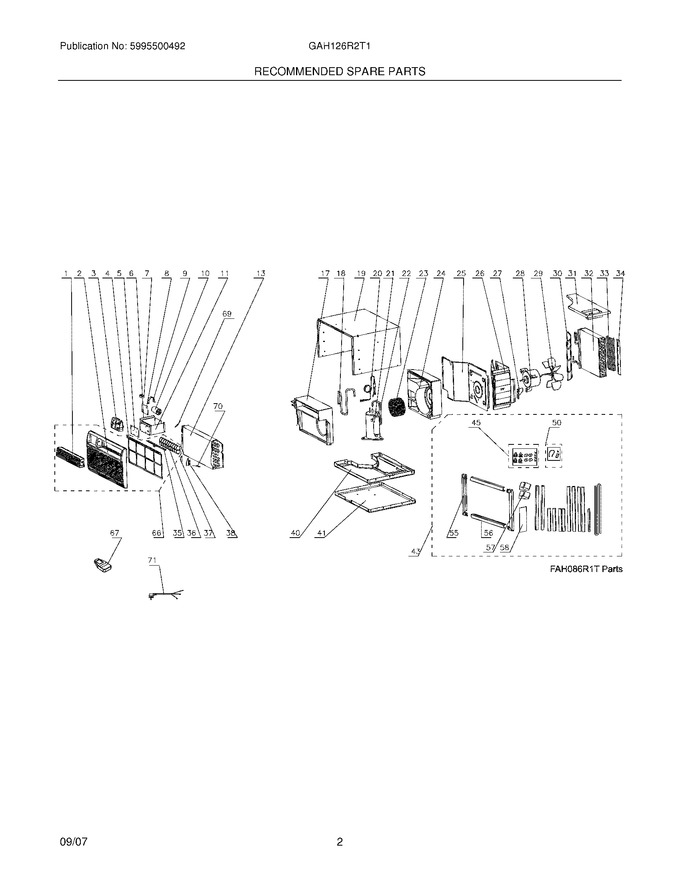

03 - Recommended Spare Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 5304459669 | Panel,front Grille |
|
$ 189.79 | |||||
| 3 | 5304459670 | Control Panel,display Console |
|
- | |||||
| 9 | 5304459676 | Strap,capacitor Clamp |
|
- | |||||
| 11 | 5304463747 | Control Box |
|
- | |||||
| 17 | 5304459681 | Scroll,blower Housing ,front |
|
- | |||||
| 19 | 5304459683 | Cabinet,wrapper/sleeve |
|
- | |||||
| 24 | 5304459688 | Scroll,blower Housing ,rear |
|
- | |||||
| 25 | 5304459689 | Bulkhead,air System |
|
- | |||||
| 26 | 5304459709 | Shroud,fan Housing ,condenser |
|
- | |||||
| 27 | 5304459690 | Baffle,splash/motor |
|
- | |||||
| 30 | 5304459698 | Shroud,condenser Fan |
|
- | |||||
| 31 | 5304459699 | Cover,condenser/fan ,top |
|
- | |||||
| 33 | 5304459703 | Grille,rear |
|
- | |||||
| 34 | 5304459704 | Panel,baffle ,rear Grille |
|
- | |||||
| 35 | 5304459705 | Link,vertical Louver ,with Handle |
|
- | |||||
| 37 | 5304459194 | Clip,sensor Support |
|
- | |||||
| 38 | 5304459776 | Deflector,air Filter ,guide |
|
- | |||||
| 40 | 5304459707 | Tray,drip Pan |
|
- | |||||
| 41 | 5304463748 | Base,unit Chassis |
|
- | |||||
| 45 | 5304459817 | Fastener Kit,screws,washers |
|
- | |||||
| 55 | 5304459820 | Trim,cabinet Frame ,side |
|
$ 44.69 | |||||
| 56 | 5304459821 | Trim,cabinet Frame ,top/bottom |
|
$ 45.09 | |||||
| 57 | 5304459822 | Block,spacer Support ,(2) |
|
- | |||||
| 58 | 5304459823 | Spacer,tapered Board ,baffle |
|
- | |||||
| F1 | 5304459668 | Louver,horizontal |
|
- | |||||
| F10 | 5304459717 | Capacitor |
|
$ 137.60 | |||||
| F13 | 5304459721 | Evaporator |
|
- | |||||
| F18 | 5304459711 | Tube,suction |
|
- | |||||
| F20 | 5304459722 | Tube,capillary |
|
- | |||||
| F21 | 5304459723 | Compressor |
|
- | |||||
| F22 | 5304459724 | Tube,discharge |
|
- | |||||
| F23 | 5304459687 | Blower Wheel,centrifugal Fan |
|
- | |||||
| F28 | 5304459725 | Motor,fan |
|
- | |||||
| F29 | 5304459697 | Fan Blade,propeller |
|
- | |||||
| F32 | 5304459726 | Condenser |
|
- | |||||
| F36 | 5304459706 | Louver,vertical |
|
- | |||||
| F4 | 5304459671 | Filter,air |
|
$ 40.06 | |||||
| F43 | 5304459816 | Installation Kit,complete |
|
- | |||||
| F5 | 5304459672 | Pc Board,display/input |
|
- | |||||
| F50 | 5304459818 | Grounding Kit |
|
- | |||||
| F6 | 5304459673 | Connector,electric ,pole |
|
- | |||||
| F66 | 5304459825 | Front Assembly,complete Panel |
|
- | |||||
| F67 | 5304460065 | Remote Control,transmitter |
|
- | |||||
| F69 | 5304459793 | Thermistor,evap Sensor ,defrost |
|
$ 69.60 | |||||
| F7 | 5304459674 | Terminal,electric ,board 2-8 |
|
- | |||||
| F70 | 5304459792 | Thermistor,temp Sensor ,ambient |
|
$ 64.16 | |||||
| F71 | 5304463745 | Power Cord,electric ,lcdi |
|
- | |||||
| F8 | 5304459716 | Pc Board,control ,main |
|
$ 262.71 |
