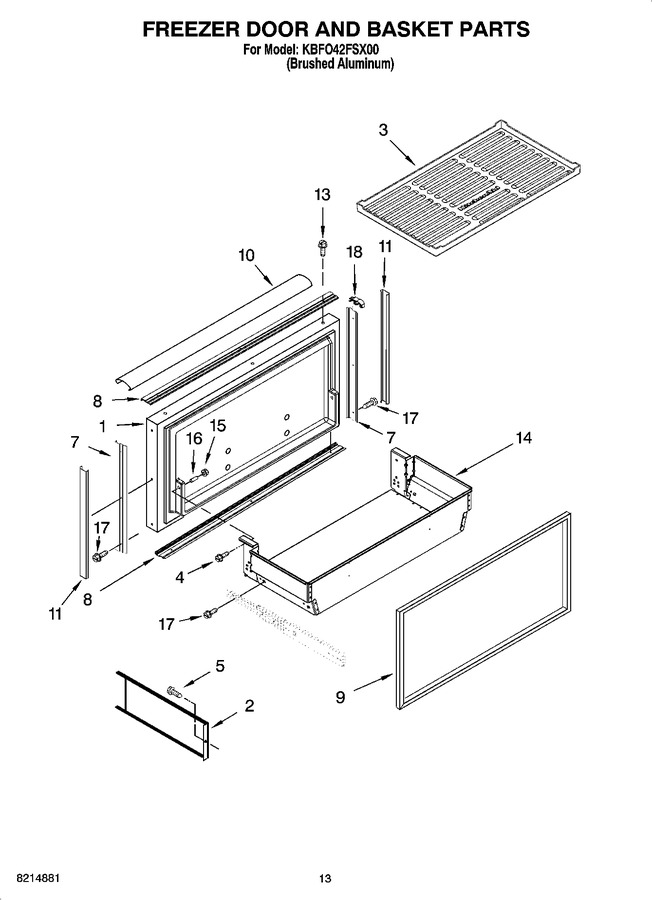

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2257798		Freezer Door Panel (includes Item 9)		Appelez-nous	-
2	2317101		Divider, Basket (2)		Appelez-nous	-
3	W10665413		Mat, Basket   (Replaces: 2314024)				$ 283.65
4	W10001170		Screw, 5/16 X 1		Appelez-nous	-
5	WPW10001160		Screw   (Replaces: W10001160)				$ 10.33
7	2313999S		Trim-door, Side				$ 216.57
8	2313998S		Trim-door, Top & Bottom				$ 290.87
9	2309216		Door Gasket, Magnetic				$ 318.75
10	2309033S		Cover, Trim				$ 86.05
11	2309213S		Cover-trim, Side				$ 91.94
13	WP8281250		Screw 8-15 X 1/2   (Replaces: 8281250)				$ 11.42
14	2309401		Basket Assembly, Freezer		Appelez-nous	-
15	WP2207454		Nut, Hex   (Replaces: 2207454)				$ 11.38
16	W10001190		Washer				$ 8.80
17	W10071450		Screw, 10-24 X 1/2 (basket To Slide)		Appelez-nous	-
18	2258903		Cap, Door (4) (corner)				$ 204.47
