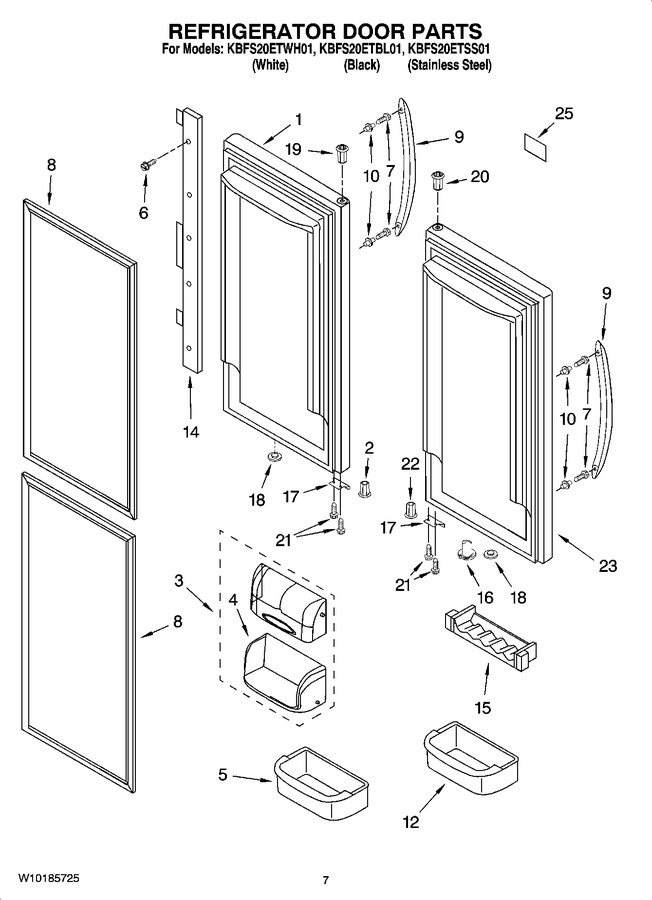

04 - Refrigerator Door Parts


05 - Unit Parts


06 - Shelf Parts


07 - Freezer Door Parts


08 - Icemaker Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	13024006W		Door, Left (white)		Appelez-nous	-
1	13024006B		Door, Left (black)		Appelez-nous	-
1	W10185727		Door, Left (stainless Steel)		Appelez-nous	-
2	WP67002721		Bushing, Door (bottom Left) (black)   (Replaces: 67002721)			Immediately	$ 7.86
2	12028601W		Bushing, Door (bottom Left) (white)   (Replaces: 67002732)				$ 22.89
3	WP12744905		Compartment, Door (includes Item 4)   (Replaces: 67003819)				$ 108.56
4	WP67001279		Tray, Dairy   (Replaces: 67001279)			Immediately	$ 83.82
5	WPW10371195		Bucket, Shelf (2) (medium)   (Replaces: 67005672)			Immediately	$ 83.21
6	W11311945		Screw   (Replaces: 67006786)				$ 14.02
7	WP3387230		Screw   (Replaces: 67002935)			Immediately	$ 8.54
8	W10830189		Gasket, Door (white)   (Replaces: W10137006)			Immediately	$ 228.91
8	W11368721		Gasket, Door (black)   (Replaces: 12723206B)			Immediately	$ 169.21
9	2319727W		Door Handle (white)				$ 106.80
9	2319727B		Door Handle (black)				$ 109.87
9	2319727S		Door Handle (stainless)				$ 133.96
10	WP67006113		Mount, Handle   (Replaces: 67006113)			Immediately	$ 11.96
12	WPW10289498		Bucket, Shelf (2) (gallon)   (Replaces: 67005673)				$ 109.26
14	WP12722803B		Mullion, Door (black)   (Replaces: 67004131)			Immediately	$ 206.80
14	WP12722803W		Mullion, Door (white)   (Replaces: 67003434)			Immediately	$ 261.21
15	WP67005626		Caddy, Can   (Replaces: 67005626)				$ 77.61
16	WP67003638		Closure, Door (white)   (Replaces: 67003638)			Immediately	$ 7.76
16	WP67003639		Closure, Door (black)   (Replaces: 67003639)				$ 86.02
17	W11708403		Stop, Door (black)   (Replaces: 67007011)			Immediately	$ 14.05
17	12968202W		Stop, Door (white)				$ 65.99
18	67004838		Plug, Vent (black)				$ 10.68
18	10712401		Plug, Vent (white)				$ 7.79
19	12395501B		Bushing, Door (upper Left) (black)		Appelez-nous	-
19	67002722		Bushing, Door (upper Left) (white)				$ 21.11
20	WP67004977		Bushing, Door (upper Right) (white)   (Replaces: 67004977)				$ 7.81
20	67004978		Bushing, Door (upper Right) (black)				$ 21.05
21	WP98165		Screw   (Replaces: 67006287)				$ 8.00
22	12028601W		Bushing, Door (lower Right) (white)   (Replaces: 67002732)				$ 22.89
22	WP67002731		Bushing, Door (lower Right) (black)   (Replaces: 67002731)			Immediately	$ 7.85
23	13024005W		Door, Right (white)		Appelez-nous	-
23	13024005B		Door, Right (black)				$ 206.34
23	W10185728		Door Right (stainless Steel)		Appelez-nous	-
25	W10046610		Nameplate (grey)				$ 33.40
25	WPW10243393		Nameplate (white)   (Replaces: W10046670)				$ 66.65
25	WPW10243392		Nameplate (black)   (Replaces: W10046640)				$ 70.19
