SELECT A DIAGRAM

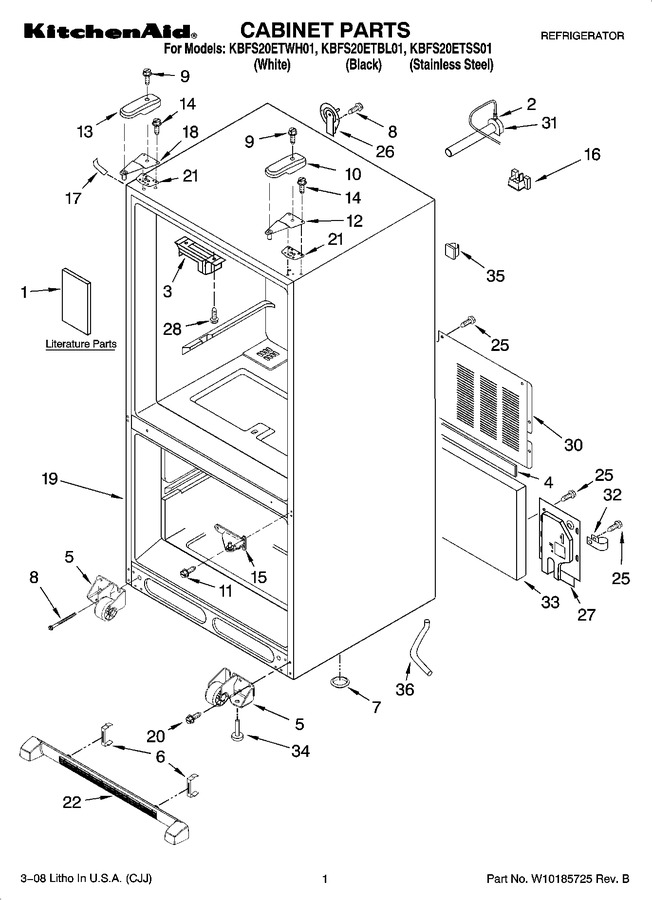

01 - Cabinet Parts


02 - Freezer Liner Parts


03 - Refrigerator Liner Parts


04 - Refrigerator Door Parts


05 - Unit Parts


06 - Shelf Parts


07 - Freezer Door Parts


08 - Icemaker Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	67006616		Tech Sheet		Appelez-nous	-
1	W10185726		Tag, Energy		Appelez-nous	-
1	W10137643		Owners Manual		Appelez-nous	-
2	WPM0114003		Clip   (Replaces: M0114003)				$ 11.05
3	WP67003405		Plate, Pivot   (Replaces: 67003405)			Immediately	$ 7.82
4	B5759649		Gasket		Appelez-nous	-
5	W11820444		Roller Foot Assembly (lh)   (Replaces: W10130460)			Immediately	$ 35.57
5	W11820445		Roller Foot Assembly (rh)   (Replaces: W10130459)			Immediately	$ 35.57
6	12627302		Clip, Grille				$ 5.84
7	A3076901		Plug, Bottom				$ 5.70
8	71003131		Bolt, Adjustable   (Replaces: 67006611)			Immediately	$ 6.74
9	WP8281196		Screw   (Replaces: 67006521)			Immediately	$ 7.19
10	12684202B		Cover, Right Hinge (black)		Appelez-nous	-
10	12684202W		Cover, Right Hinge (white)		Appelez-nous	-
11	W11573362		Screw   (Replaces: 67006380)				$ 14.02
12	WP12566606ED		Hinge, Top Right   (Replaces: 12566604ED)			Immediately	$ 44.89
13	12684201W		Cover, Left Hinge (white)		Appelez-nous	-
13	12684201B		Cover, Left Hinge (black)		Appelez-nous	-
14	WP489349		Screw   (Replaces: 67006303)			Immediately	$ 7.88
15	W10918164		Hinge, Center (2) (black (rt))   (Replaces: 67006443)				$ 86.64
15	67006442		Hinge, Center (2) (black (lt))				$ 115.02
15	67006379		Hinge, Center (2) (white (rt))		Appelez-nous	-
15	W10918113		Hinge, Center (2) (white (lt))   (Replaces: 67006277)				$ 93.26
16	67004092		Block, Filter		Appelez-nous	-
17	67003484		Cover, Corner (white)				$ 20.40
17	67003485		Cover, Corner (black)			Immediately	$ 21.09
18	WP12566607ED		Hinge, Top Left   (Replaces: 12566605ED)				$ 86.75
20	67006564		Screw (8)			Immediately	$ 7.69
21	12579702		Shim, Hinge		Appelez-nous	-
22	W10131134		Grille Assembly (includes Clips) (black)				$ 53.25
22	W10131133		Grille Assembly (includes Clips) (white)		Appelez-nous	-
25	67006425		Screw (10)			Immediately	$ 6.95
26	12726003		Cover, Water Line   (Replaces: 67003331)				$ 18.28
27	67004098		Cover, Water Valve		Appelez-nous	-
28	WP7101P126-60		Screw   (Replaces: 67006669)			Immediately	$ 7.61
30	12575101ED		Cover, Unit		Appelez-nous	-
31	W11176463		Elbow, Fill Tube   (Replaces: W10137519)			Immediately	$ 114.15
32	67001067		Clip, Drain Tube				$ 9.20
33	67003796		Insulation, Sound				$ 19.27
34	WPW10141622		Foot Brake   (Replaces: W10141622)			Immediately	$ 7.85
35	WPM0104106		Clip, Tube   (Replaces: M0104106)				$ 7.78
36	W10164397		Tube, Drain				$ 14.79
