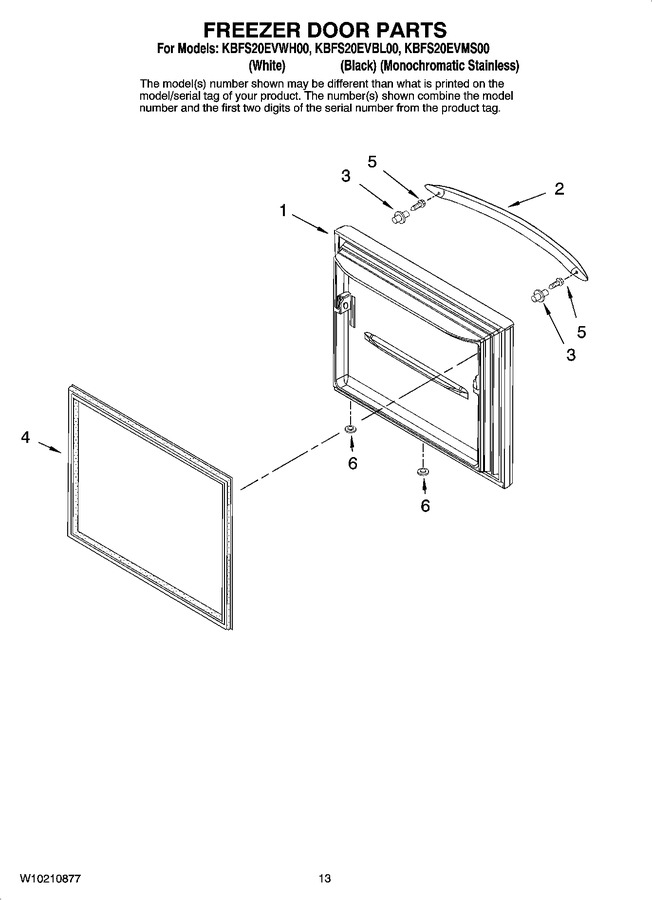

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	13092233WQ		Door, Freezer (white)		Appelez-nous	-
1	13092233BQ		Door, Freezer (black)		Appelez-nous	-
1	13092234SQ		Door, Freezer (stainless)		Appelez-nous	-
2	WPW10314515		Handle, Door (white)   (Replaces: W10119642)				$ 238.49
2	W10119643		Handle, Door (black)		Appelez-nous	-
2	WPW10314517K		Handle, Door (stainless)   (Replaces: W10119644)				$ 243.37
3	WP67006113		Mount, Handle   (Replaces: 67006113)			Immediately	$ 12.56
4	W10443319		Gasket, Door (white)   (Replaces: W10164040)				$ 281.76
4	W10436252		Gasket, Door (black)   (Replaces: W10164041)			Immediately	$ 362.28
4	W10443320		Gasket, Door (apollo Grey)   (Replaces: W10164042)			Immediately	$ 125.25
5	67006901		Screw			Immediately	$ 9.49
6	10712401		Plug, Vent (2) (white)				$ 7.79
6	67004838		Plug, Vent (2) (black)				$ 11.21
