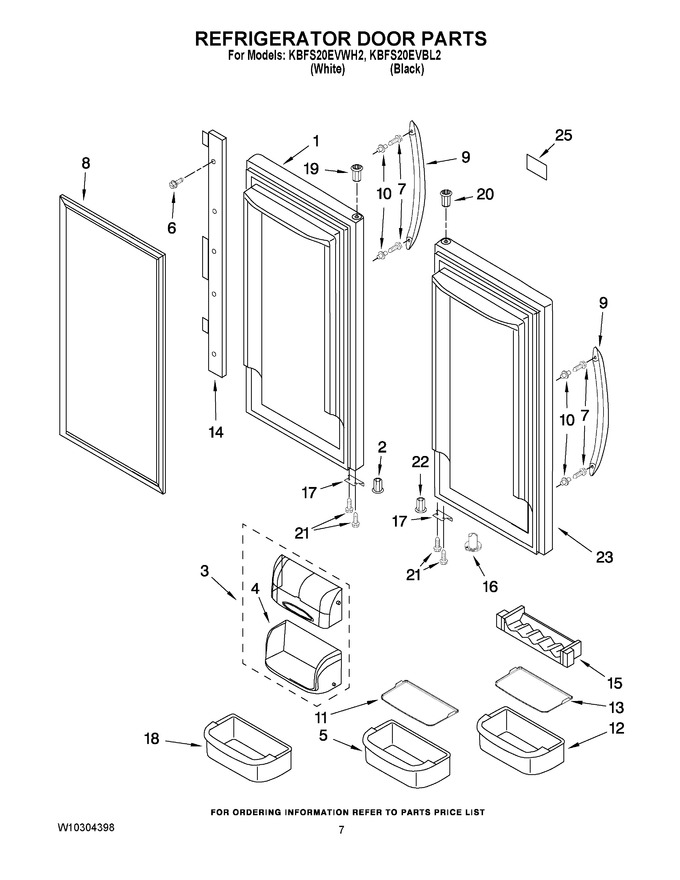

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	13024048WQ		Door, Refrigerator (white)		Appelez-nous	-
1	13024048BQ		Door, Refrigerator (black)		Appelez-nous	-
2	WP67002721		Bushing, Door (bottom Left) (black)   (Replaces: 12699301B)			Immediately	$ 7.86
2	12028601W		Bushing, Door (bottom Left) (white)				$ 22.89
3	WP12744905		Door, Dairy (includes No.4)   (Replaces: 12744905)				$ 108.56
4	WP67001279		Tray, Dairy   (Replaces: 12369502SP)			Immediately	$ 83.82
5	WPW10371195		Bucket, Medium   (Replaces: 12849114SP)			Immediately	$ 83.21
6	W11311945		Screw   (Replaces: 12990204)				$ 14.02
7	WP3387230		Screw   (Replaces: 3196181)			Immediately	$ 8.54
8	W10830189		Gasket, Door (white)   (Replaces: W10163894)			Immediately	$ 228.91
8	W11368721		Gasket, Door (black)   (Replaces: W10163895)			Immediately	$ 169.21
9	W10119643		Handle, Door (black)		Appelez-nous	-
9	WPW10314515		Handle, Door (white)   (Replaces: W10119642)				$ 227.13
10	12691403		Mount, Handle		Appelez-nous	-
11	WPW10450021		Gripper, Medium   (Replaces: 12567321SP)			Immediately	$ 96.12
12	WPW10289498		Bucket, Gallon   (Replaces: 12699210SP)				$ 109.26
13	W11402028		Gripper, Gallon   (Replaces: 12567320SP)			Immediately	$ 85.47
14	WP12722803B		Mullion, Door (black)   (Replaces: 12722803B)			Immediately	$ 206.80
14	WP12722803W		Mullion, Door (white)   (Replaces: 12722803W)			Immediately	$ 261.21
15	WP67005626		Caddy, Can   (Replaces: 12690102)				$ 77.61
16	WP67003638		Closure, Door (white)   (Replaces: 12028505W)			Immediately	$ 7.76
16	WP67003639		Closure, Door (black)   (Replaces: 12028505B)				$ 86.02
17	12968202W		Stop, Door (white)   (Replaces: 10447111)				$ 65.99
17	W11708403		Stop, Door (black)   (Replaces: 10447112)			Immediately	$ 14.05
18	WPW10371195		Bucket, Medium   (Replaces: 12849114)			Immediately	$ 83.21
19	67002722		Bushing, Door Upper Left (white)   (Replaces: 12699301W)				$ 21.11
19	WP67002721		Bushing, Door Upper Left (black)   (Replaces: 12699301B)			Immediately	$ 7.86
20	67004978		Bushing, Door (upper Right) (black)   (Replaces: 10961006B)				$ 21.05
20	WP67004977		Bushing, Door (upper Right) (white)   (Replaces: 10961006W)				$ 7.81
21	WP98165		Screw   (Replaces: 12990504)				$ 8.00
22	12028601W		Bushing, Door (lower Right) (white)				$ 22.89
22	WP67002731		Bushing, Door (lower Right) (black)   (Replaces: 12028601B)			Immediately	$ 7.85
23	13024047BQ		Door, Right (black)		Appelez-nous	-
23	13024047WQ		Door, Right (white)		Appelez-nous	-
25	WPW10243392		Nameplate (black)   (Replaces: W10046640)				$ 70.19
25	WPW10243393		Nameplate (white)   (Replaces: W10046670)				$ 66.65
