SELECT A DIAGRAM

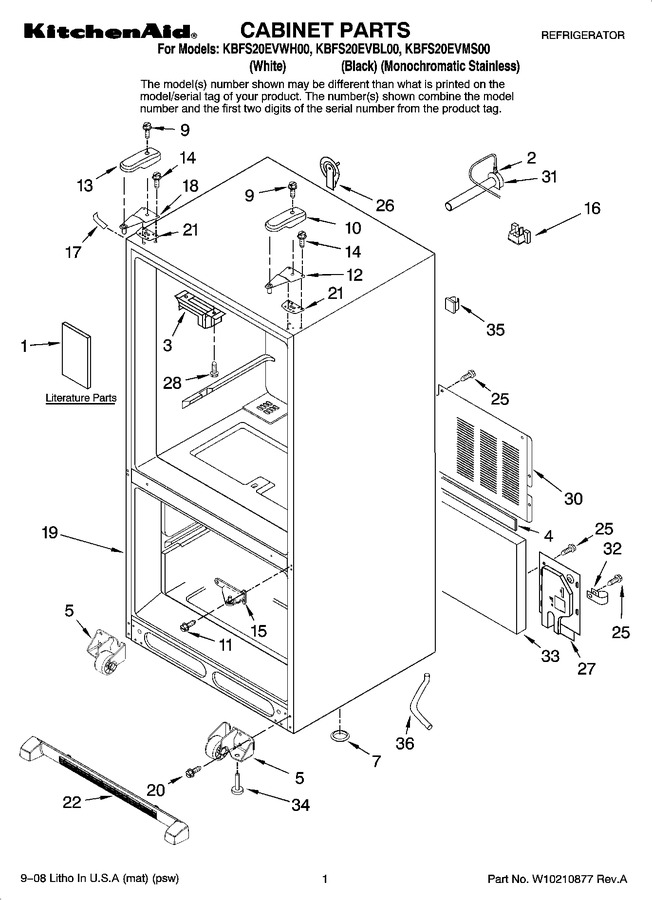

01 - Cabinet Parts


02 - Freezer Liner Parts


03 - Refrigerator Liner Parts


04 - Refrigerator Door Parts


05 - Unit Parts


06 - Shelf Parts


07 - Freezer Door Parts


08 - Icemaker Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10208326		Energy Guide		Appelez-nous	-
1	67006616		Tech Sheet		Appelez-nous	-
1	W10137643		Use & Care Guide		Appelez-nous	-
2	WPM0114003		Clip   (Replaces: M0114003)				$ 11.05
3	WP67003405		Plate, Block   (Replaces: 67003405)			Immediately	$ 7.82
4	B5759649		Gasket		Appelez-nous	-
5	W11820444		Roller Foot Assembly (lh)   (Replaces: W10237085)			Immediately	$ 35.57
5	W11820445		Roller Foot Assembly (rh)   (Replaces: W10237087)			Immediately	$ 35.57
7	A3076901		Plug, Bottom				$ 5.70
9	WP8281196		Screw   (Replaces: 67006521)			Immediately	$ 7.19
10	12629801B		Cover, Right Hinge (black)				$ 25.13
10	12629801AP		Cover, Right Hinge (apollo Grey)				$ 13.71
10	12629801W		Cover, Right Hinge (white)				$ 24.68
11	W11573362		Screw   (Replaces: 67006380)				$ 14.02
12	12626910ED		Hinge, Top Right				$ 118.92
13	W10217485		Cover, Left Hinge (black)   (Replaces: 67006726)				$ 21.64
13	W10217487		Cover, Left Hinge (apollo Grey)   (Replaces: 12629803AP)				$ 21.41
13	67007156		Cover, Left Hinge (white)		Appelez-nous	-
14	WP489349		Screw   (Replaces: 67006303)			Immediately	$ 7.88
15	12655102AP		Hinge, Center (2) (apollo Grey)				$ 143.69
15	12655102AP		Hinge, Center (2) (white)   (Replaces: 67002028)				$ 143.69
15	12655103ED		Hinge, Center (2) (black)   (Replaces: 67002027)				$ 85.01
16	67004092		Block, Filter		Appelez-nous	-
17	WP12587703AP		Cover, Corner (apollo Grey)   (Replaces: 12587703AP)				$ 7.69
17	67003484		Cover, Corner (white)				$ 20.40
17	67003485		Cover, Corner (black)			Immediately	$ 21.09
18	12626911ED		Hinge, Top Left				$ 84.81
20	67006564		Screw (8)			Immediately	$ 7.69
21	12579702		Shim, Hinge		Appelez-nous	-
22	W10131133		Grille Assembly (includes Clips) (white)		Appelez-nous	-
22	WPW10534155		Grille Assembly (includes Clips) (apollo Grey)   (Replaces: W10120000)			Immediately	$ 119.56
22	W10131134		Grille Assembly (includes Clips) (black)				$ 53.25
25	67006425		Screw			Immediately	$ 6.95
26	12726003		Cover, Water Line   (Replaces: 67003331)				$ 18.28
27	12751509		Cover, Water Valve		Appelez-nous	-
28	WP7101P126-60		Screw   (Replaces: 67006669)			Immediately	$ 7.61
30	67006102		Cover, Unit		Appelez-nous	-
31	W11176463		Elbow, Fill Tube   (Replaces: W10137519)			Immediately	$ 114.15
32	W10157973		Clip, Drain Tube				$ 7.80
33	67003796		Insulation, Sound				$ 19.27
34	WPW10141622		Foot Brake   (Replaces: W10141622)			Immediately	$ 7.85
35	WPM0104106		Clip, Tube   (Replaces: M0104106)				$ 7.78
36	W10164397		Tube, Drain				$ 14.79

    View Diagram in Separate Window       Print Part List
