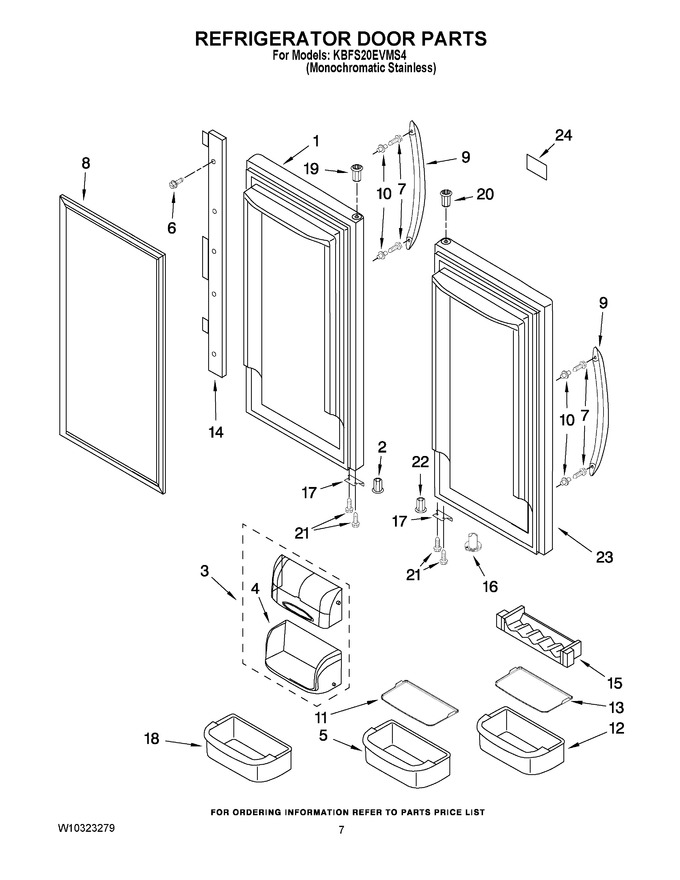

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	13107708SQ		Door, Refrigerator (left) (stainless)		Appelez-nous	-
2	12699301AP		Bushing, Door (bottom Left) (apollo Grey)				$ 13.44
3	WP12744905		Door, Dairy (includes No.4)   (Replaces: 12744905)				$ 113.99
4	WP67001279		Tray, Dairy   (Replaces: 12369502SP)			Immediately	$ 88.01
5	WPW10371195		Bucket, Medium   (Replaces: 12849114SP)			Immediately	$ 87.37
6	W11311945		Screw   (Replaces: 12990204)				$ 14.72
7	W10290759		Screw				$ 5.83
8	W10830162		Gasket, Door (apollo Grey)   (Replaces: W10179332)			Immediately	$ 212.57
9	WPW10314517K		Handle, Door (stainless)   (Replaces: W10119644)				$ 243.37
10	12691403		Mount, Handle		Appelez-nous	-
11	WPW10450021		Gripper, Medium   (Replaces: 12567321SP)			Immediately	$ 100.93
12	WPW10289498		Bucket, Gallon   (Replaces: 12699210SP)				$ 109.26
13	W11402028		Gripper, Gallon   (Replaces: 12567320SP)			Immediately	$ 89.74
14	WP12722803AP		Mullion, Door (apollo Grey)   (Replaces: 12722803AP)			Immediately	$ 177.93
15	WP67005626		Caddy, Can   (Replaces: 12690102)				$ 81.49
16	WP12028505AP		Closure, Door (apollo Grey)   (Replaces: 12028505AP)			Immediately	$ 61.46
17	W11401472		Stop, Door (apollo Grey)   (Replaces: 10447114)			Immediately	$ 23.56
18	WPW10371195		Bucket, Medium   (Replaces: 12849114)			Immediately	$ 87.37
19	12395501AP		Bushing, Door Upper Left (apollo Grey)				$ 12.05
20	10961006AP		Bushing, Door (upper Right) (apollo Grey)				$ 9.65
21	WP98165		Screw   (Replaces: 12990504)				$ 8.57
22	12028601AP		Bushing, Door (lower Right) (apollo Grey)				$ 5.71
23	13107710SQ		Door, Right (stainless)				$ 767.95
24	W10046610		Nameplate (grey)				$ 33.40
