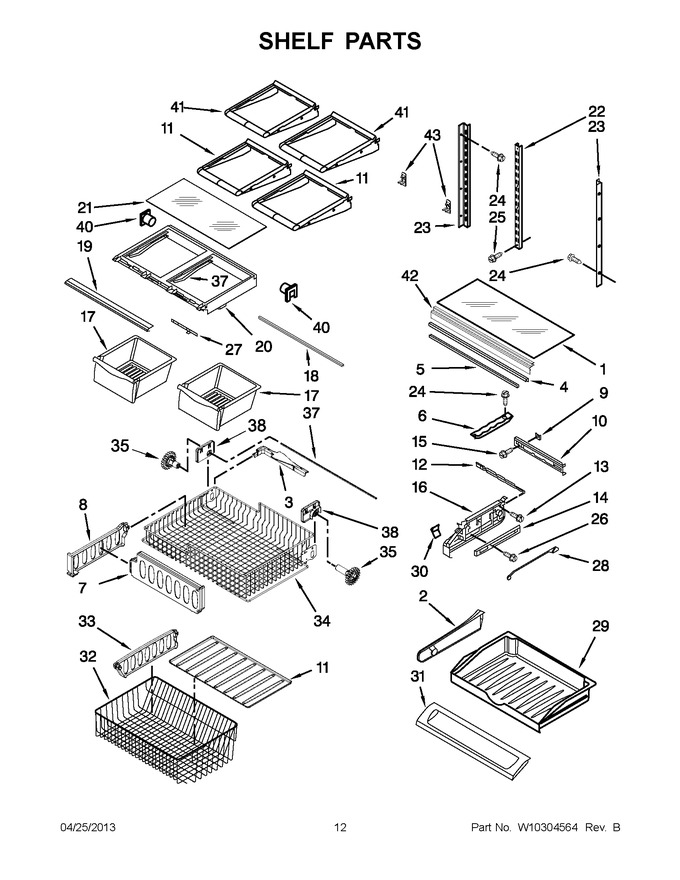

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10165870 | Glass, Pantry (Replaces: 12204820N) |
|
$ 218.67 | |||||
| 2 | WPW10165967 | Divider, Pantry Drawer (Replaces: 13048601SP) |
|
Immediately | $ 48.32 | ||||
| 3 | W10149389 | Lift-bail Arm |
|
$ 88.25 | |||||
| 4 | W10166785 | Trim, Pantry Glass (Replaces: 12655903) |
|
$ 94.49 | |||||
| 5 | WP12227302WD | Brace, Pantry (Replaces: 12227301WD) |
|
$ 106.29 | |||||
| 6 | WP67001719 | Track, Deli Drawer (Replaces: 12531901) |
|
Immediately | $ 8.56 | ||||
| 7 | W10311695 | Divider, Upper |
|
$ 28.76 | |||||
| 8 | W10241046 | Divider, Upper |
|
Immediately | $ 27.80 | ||||
| 9 | 12656902 | Gasket, Pantry |
|
- | |||||
| 10 | W10165876 | Housing, Control (Replaces: 13048301) |
|
$ 77.02 | |||||
| 11 | W11402521 | Shelf, Glide Out (Replaces: 12463310V) |
|
$ 220.55 | |||||
| 12 | W10165882 | Slide, Temperature (Replaces: 13048401) |
|
$ 15.48 | |||||
| 13 | WP67006415 | Screw (Replaces: 12990512) |
|
$ 7.80 | |||||
| 14 | WPW10235370 | Glide, Pantry (Replaces: W10235370) |
|
Immediately | $ 199.80 | ||||
| 15 | 67006425 | Screw (Replaces: 12990513) |
|
Immediately | $ 6.95 | ||||
| 16 | W11197396 | Endcap, Pantry (right Hand) (Replaces: 13047701) |
|
Immediately | $ 51.27 | ||||
| 16 | W11197396 | Endcap, Pantry (left Hand) (Replaces: 13047801) |
|
Immediately | $ 51.27 | ||||
| 17 | WP67002633 | Pan, Crisper (Replaces: 12530505SP) |
|
Immediately | $ 149.12 | ||||
| 18 | WP12227303WD | Brace, Crisper Cover (Replaces: 12227303WD) |
|
$ 105.95 | |||||
| 19 | W10231483 | Trim, Crisper |
|
$ 111.44 | |||||
| 20 | WPW10568041 | Frame, Crisper (Replaces: 12530401SP) |
|
Immediately | $ 137.23 | ||||
| 21 | WP67006878 | Glass, Crisper (Replaces: 12204822N) |
|
Immediately | $ 185.19 | ||||
| 22 | W10273463 | Ladder, Center |
|
$ 28.20 | |||||
| 23 | W10251969 | Ladder, Side |
|
$ 29.94 | |||||
| 24 | 67006425 | Screw (Replaces: 12990513) |
|
Immediately | $ 6.95 | ||||
| 25 | WP489474 | Screw (Replaces: 12990519) |
|
Immediately | $ 7.97 | ||||
| 26 | WP98165 | Screw (Replaces: 12990504) |
|
$ 8.00 | |||||
| 27 | WP67005864 | Slide, Humidity Control (Replaces: 12530805SP) |
|
Immediately | $ 7.81 | ||||
| 28 | W10165910 | Bar, Control (Replaces: 13048201) |
|
$ 14.73 | |||||
| 29 | W11513151 | Drawer, Pantry (Replaces: 13048501SP) |
|
Immediately | $ 132.45 | ||||
| 30 | W11498983 | Knob, Control (Replaces: 12655204V) |
|
$ 29.18 | |||||
| 31 | W10827914 | Lid, Pantry (Replaces: 12656823) |
|
Immediately | $ 174.01 | ||||
| 32 | WPW10503183 | Basket, Freezer (lower) (Replaces: W10150038) |
|
Immediately | $ 237.48 | ||||
| 33 | W10205416 | Divider, Basket (lower) |
|
- | |||||
| 34 | W10348238 | Basket, Freezer (upper) (Replaces: W10169950) |
|
$ 217.27 | |||||
| 35 | WPW10474716 | Gear (right Hand) (Replaces: W10158749) |
|
Immediately | $ 30.88 | ||||
| 35 | WPW10474715 | Gear (left Hand) (Replaces: W10146446) |
|
Immediately | $ 31.20 | ||||
| 37 | W10802339 | Shaft, Rack (Replaces: 12812905WD) |
|
$ 99.21 | |||||
| 38 | W10348259 | Mount, Gear (left Hand) (Replaces: W10233898) |
|
$ 85.59 | |||||
| 38 | W10348260 | Mount, Gear (right Hand) (Replaces: W10233899) |
|
$ 85.62 | |||||
| 40 | WP67001722 | Support, Crisper (right Hand) (Replaces: 12531002) |
|
Immediately | $ 8.93 | ||||
| 40 | WP67001721 | Support, Crisper (left Hand) (Replaces: 12531001) |
|
Immediately | $ 8.70 | ||||
| 41 | W11402523 | Shelf, Stationary (Replaces: 12463509) |
|
Immediately | $ 221.39 | ||||
| 42 | W11245261 | Trim, Pantry Glass (Replaces: 13048801) |
|
Immediately | $ 81.53 | ||||
| 43 | WP67001716 | Hook, Ladder (Replaces: 12531802) |
|
Immediately | $ 10.61 |
