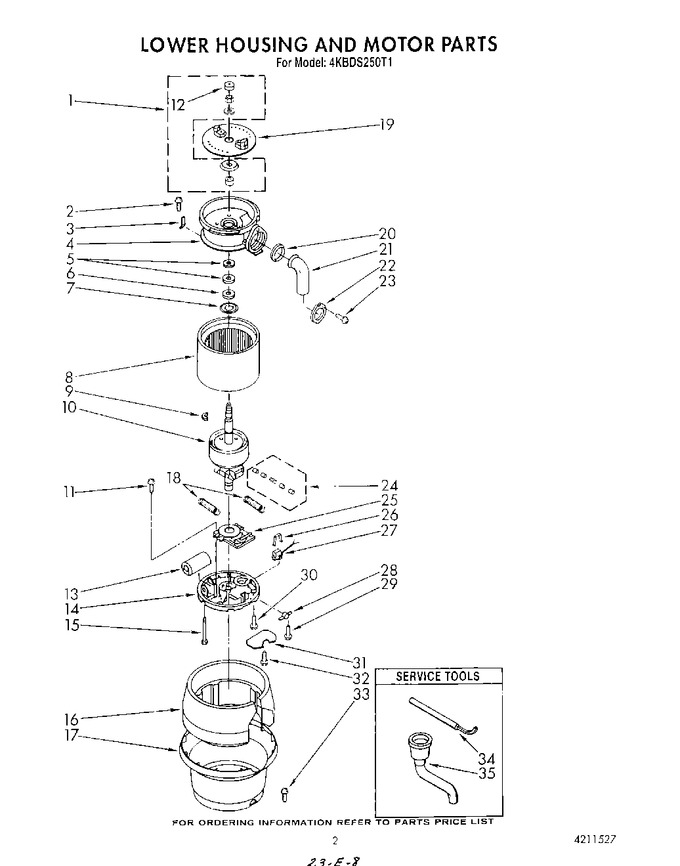

SELECT A DIAGRAM

01 - Section


02 - Section


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4211578		Kit, Sleeve And Seal (includes Nut, Washer, Slinger & Sleeve)   (Replaces: 4211311)				$ 124.78
2	WP7101P246-60		Screw, Shield   (Replaces: 4211329)				$ 8.24
3	4211422		Shield, Wire Cover		Appelez-nous	-
4	4211492		End Bell Assembly, Upper				$ 164.46
5	4211405		Washer, Phenolic (2)		Appelez-nous	-
6	4211406		Washer, Rubber		Appelez-nous	-
7	4211493		Washer, Thrust		Appelez-nous	-
8	4211424		Stator Assembly		Appelez-nous	-
9	4211376		Ring, C		Appelez-nous	-
10	4211494		Rotor And Shaft Assembly		Appelez-nous	-
11	4211380		Screw (4)		Appelez-nous	-
12	4211578		Plug   (Replaces: 4211341)				$ 124.78
13	4211385		Capacitor		Appelez-nous	-
14	4211470		End Frame Assembly (lower)		Appelez-nous	-
15	4211389		Bolt, Thru (4)		Appelez-nous	-
16	4211393		Insulation, Bottom		Appelez-nous	-
17	4211462		Shell Assembly,		Appelez-nous	-
18	4211378		Spring (2) (centrifugal Actuator)		Appelez-nous	-
19	4211368		Shredder Assembly, Rotating		Appelez-nous	-
20	4211344		Gasket, Tailpipe				$ 5.83
21	4211317		Tailpipe   (Replaces: 4211370)				$ 82.65
22	4211345		Flange, Tailpipe				$ 6.40
23	WP8204624		Screw, Tailpipe   (Replaces: 4211346)				$ 17.48
24	4211468		Transfer Assembly		Appelez-nous	-
25	4211469		Switch Assembly, Start		Appelez-nous	-
26	4211383		Clip, Overload		Appelez-nous	-
27	4211425		Protector, Overload		Appelez-nous	-
28	4211387		Clamp, Bx		Appelez-nous	-
29	4211388		Screw, Clamp (2)		Appelez-nous	-
30	4211390		Screw, Ground		Appelez-nous	-
31	4211391		Cover, Terminal		Appelez-nous	-
32	4211380		Screw		Appelez-nous	-
33	4211395		Screw, Tapping		Appelez-nous	-
34	WP8174310		Emergency, Wrench Assembly   (Replaces: 4211435)				$ 22.35
35	4211396		Adapter, Sink Assembly		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
