SELECT A DIAGRAM

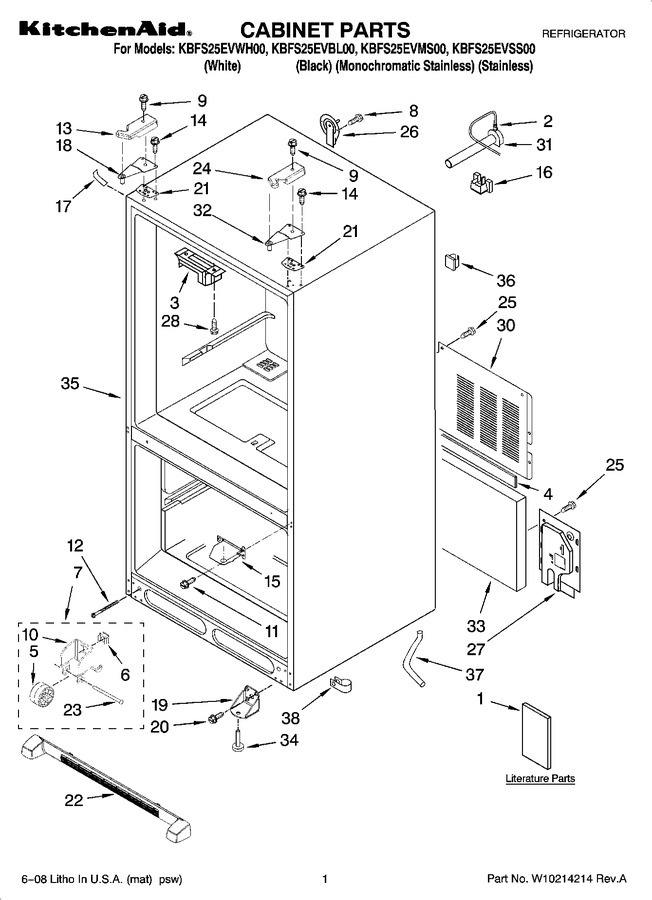

01 - Cabinet Parts


02 - Freezer Liner Parts


03 - Refrigerator Liner Parts


04 - Refrigerator Door Parts


05 - Unit Parts


06 - Shelf Parts


07 - Freezer Door Parts


08 - Icemaker Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10198858		Tech Sheet		Appelez-nous	-
1	W10187309		Owners Manual		Appelez-nous	-
1	W10187812		Tag, Energy		Appelez-nous	-
2	W11176463		Elbow, Fill Tube   (Replaces: 8170414)			Immediately	$ 119.86
3	WP67003405		Plate, Pivot   (Replaces: 67003405)			Immediately	$ 8.21
4	8170924		Gasket		Appelez-nous	-
5	WP10450603		Roller   (Replaces: 67005127)				$ 8.27
6	M0286708		Nut, Speed				$ 47.85
7	67006118		Roller Assembly		Appelez-nous	-
8	WP98165		Screw   (Replaces: 67006287)				$ 8.57
9	WP8281196		Screw   (Replaces: 67006521)			Immediately	$ 7.55
10	12456801V		Bracket, Roller   (Replaces: 12456801)				$ 53.10
11	W11573362		Screw   (Replaces: 67006380)				$ 14.72
12	71003131		Bolt, Adjusting (front)   (Replaces: 67006611)			Immediately	$ 7.08
13	W10217485		Cover, Left Hinge (black)   (Replaces: 67006726)				$ 22.72
13	67007156		Cover, Left Hinge (white)		Appelez-nous	-
14	WP489349		Screw   (Replaces: 67006303)			Immediately	$ 8.43
15	12655103ED		Hinge, Center (rt) (black)				$ 89.26
15	12655102AP		Hinge, Center (rt) (apollo Grey)				$ 150.87
15	12655102AP		Hinge, Center (rt) (white)   (Replaces: 67002028)				$ 150.87
16	67004092		Block, Filter		Appelez-nous	-
17	67003484		Cover, Corner (white)				$ 21.42
17	67003485		Cover, Corner (black)			Immediately	$ 22.14
17	WP12587703AP		Cover, Corner (apollo Grey)   (Replaces: 12587703AP)				$ 8.07
18	12626911ED		Hinge, Top Left				$ 89.05
19	W10208641		Bracket, Foot (2)		Appelez-nous	-
20	67006564		Screw			Immediately	$ 8.15
21	12579702		Shim, Hinge		Appelez-nous	-
22	WPW10534153		Grille Assembly (includes Clips) (black)   (Replaces: 67006375)				$ 154.57
22	WPW10534154		Grille Assembly (includes Clips) (white)   (Replaces: 67006377)				$ 153.66
22	WPW10534155		Grille Assembly (includes Clips) (apollo Grey)   (Replaces: 12880103AP)			Immediately	$ 119.56
23	M1205302		Pin				$ 5.85
24	12629801AP		Cover, Right Hinge (apollo Grey)				$ 13.71
24	12629801B		Cover, Right Hinge (black)				$ 25.13
24	12629801W		Cover, Right Hinge (white)				$ 24.68
25	67006425		Screw			Immediately	$ 7.30
26	12726003		Cover, Water Line   (Replaces: 67003331)				$ 19.19
27	67004098		Cover, Water Valve		Appelez-nous	-
28	WP7101P126-60		Screw   (Replaces: 67006669)			Immediately	$ 8.36
30	B5759649		Cover, Unit		Appelez-nous	-
31	W11817981		Fill Tube Assy.   (Replaces: 67004099)			Immediately	$ 91.27
32	12626910ED		Hinge, Top Right				$ 124.87
33	67003796		Insulation, Sound				$ 19.27
34	W11177593		Foot Brake   (Replaces: 67003868)				$ 12.18
36	WPM0104106		Clip   (Replaces: M0104106)				$ 8.17
37	W10164397		Tube, Drain				$ 15.53
38	W10157973		Clip, Drain Tube				$ 7.80

    View Diagram in Separate Window       Print Part List
