SELECT A DIAGRAM

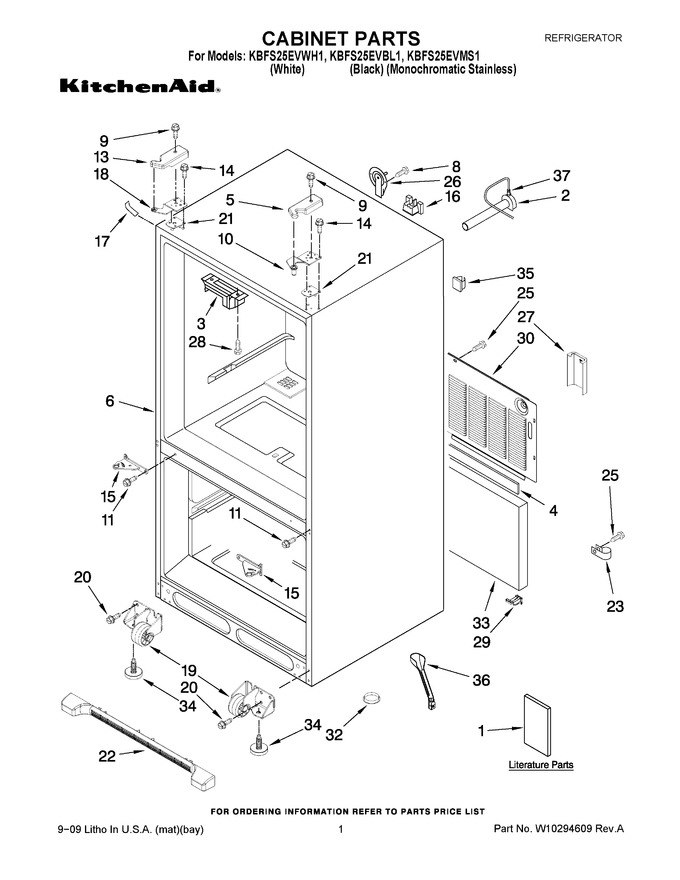

01 - Cabinet Parts


02 - Freezer Liner Parts


03 - Refrigerator Liner Parts


04 - Refrigerator Door Parts


05 - Unit Parts


06 - Shelf Parts


07 - Freezer Door Parts


08 - Icemaker Parts


09 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10238846		Tech Sheet		Appelez-nous	-
1	W10187812		Energy Guide		Appelez-nous	-
1	W10187309		Owners Manual		Appelez-nous	-
2	W11176463		Elbow, Fill Tube   (Replaces: 10463203SP)			Immediately	$ 119.86
3	WP67003405		Block, Pivot   (Replaces: 12698403)			Immediately	$ 8.21
4	B5759649		Gasket		Appelez-nous	-
5	12629801W		Cover, Right Hinge (white)				$ 24.68
5	12629801B		Cover, Right Hinge (black)				$ 25.13
5	12629801AP		Cover, Right Hinge (apollo Grey)				$ 13.71
6	N/P		Cabinet (not A Serviceable Part)		Appelez-nous	-
8	WP98165		Screw   (Replaces: 12990504)				$ 8.57
9	WP8281196		Screw   (Replaces: 12992602)			Immediately	$ 7.55
10	WP12566606ED		Hinge, Top Right   (Replaces: 12566604ED)			Immediately	$ 47.13
11	W11573362		Screw (6)   (Replaces: 12992201)				$ 14.72
13	W10217484		Cover, Left Hinge (white)				$ 33.55
13	W10217485		Cover, Left Hinge (black)				$ 22.72
13	W10217487		Cover, Left Hinge (apollo Grey)				$ 22.48
14	WP489349		Screw (6)   (Replaces: 12992403)			Immediately	$ 8.43
15	12655103ED		Hinge, Center (black)				$ 89.26
15	12655102AP		Hinge, Center (apollo Grey)				$ 150.87
15	12655102AP		Hinge, Center (white)   (Replaces: 12655102WD)				$ 150.87
16	12777701		Block, Fill Tube				$ 7.17
17	12587703W		Cover, Corner (2) (white)				$ 22.90
17	WP12587703AP		Cover, Corner (2) (apollo Grey)   (Replaces: 12587703AP)				$ 8.07
17	67003485		Cover, Corner (2) (black)   (Replaces: 12587703B)			Immediately	$ 22.14
18	WP12566607ED		Hinge, Top Left   (Replaces: 12566605ED)				$ 91.09
19	W11820445		Roller Assembly (right)   (Replaces: W10275849)			Immediately	$ 37.35
19	W11820444		Roller Assembly (left)   (Replaces: W10275850)			Immediately	$ 37.35
20	67006564		Screw (8)   (Replaces: 12991302)			Immediately	$ 8.15
21	12579702		Shim, Hinge		Appelez-nous	-
22	WPW10534153		Grille, Toe (black)   (Replaces: W10244561)				$ 154.57
22	WPW10534155		Grille, Toe (apollo Grey)   (Replaces: W10244558)			Immediately	$ 119.56
22	WPW10534154		Grille, Toe (white)   (Replaces: W10244559)				$ 153.66
23	W10833902		Clamp, Tube   (Replaces: M0108105)				$ 11.54
25	67006425		Screw (10)   (Replaces: 12990511)			Immediately	$ 7.30
26	12726003		Cover, Water Line				$ 19.19
27	W10208593		Guard-water Valve				$ 15.71
28	WP7101P126-60		Screw (2)   (Replaces: 12990303)			Immediately	$ 8.36
29	12831101		Sweep, Dual Tube				$ 13.03
30	WPW10211855		Cover, Unit   (Replaces: W10211855)				$ 207.99
32	A3076901		Plug, Button				$ 5.70
33	12820505		Insulation, Sound				$ 71.70
34	10354002		Brake, Foot			Immediately	$ 7.38
35	WPM0104106		Clip (2)   (Replaces: M0104106)				$ 8.17
36	W10619951		Tube, Drain   (Replaces: W10210988)			Immediately	$ 42.39
37	WPM0114003		Clip   (Replaces: M0114003SP)				$ 11.60

    View Diagram in Separate Window       Print Part List
