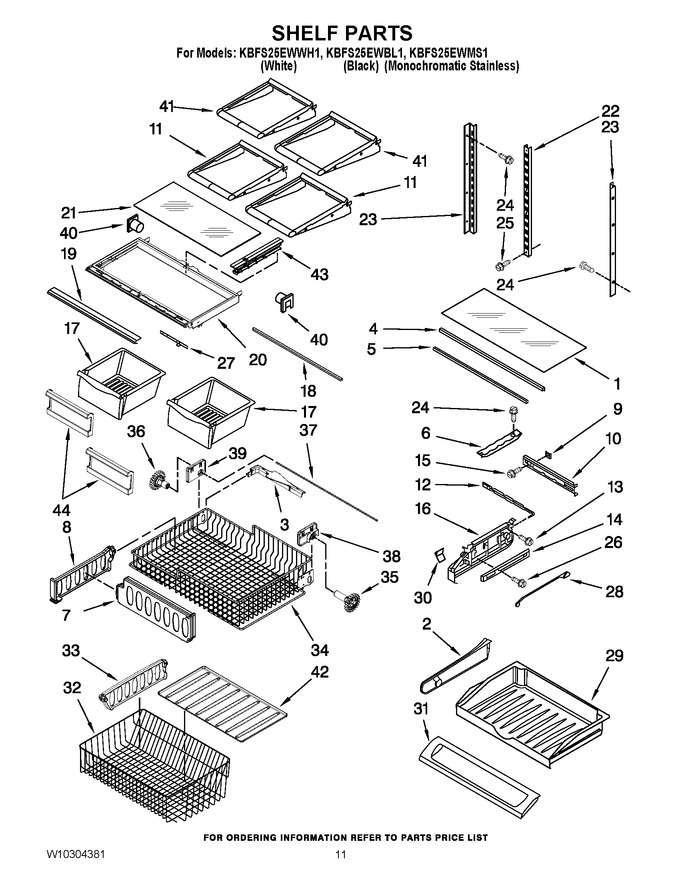

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11033333 | Glass, Pantry (Replaces: 12204830) |
|
$ 227.27 | |||||
| 2 | WP67002759 | Divider, Pantry Drawer (Replaces: 12731901) |
|
Immediately | $ 58.33 | ||||
| 3 | W10149389 | Lift, Bail Arm |
|
$ 88.25 | |||||
| 4 | W11812285 | Extr, Glass Support (2) (Replaces: 12655902SP) |
|
$ 50.79 | |||||
| 5 | WP12227305WD | Brace, Pantry (2) (Replaces: 12227305WD) |
|
$ 103.20 | |||||
| 6 | WP67001719 | Track, Pantry (Replaces: 12531901) |
|
Immediately | $ 8.56 | ||||
| 7 | W10171558 | Divider, Upper Basket |
|
$ 40.47 | |||||
| 8 | W10241046 | Divider, Upper Basket |
|
Immediately | $ 27.80 | ||||
| 9 | 67002329 | Gasket, Pantry (Replaces: 12656901) |
|
$ 21.04 | |||||
| 10 | 12656202 | Housing, Control |
|
$ 141.75 | |||||
| 11 | 12654610 | Shelf, Glide |
|
- | |||||
| 12 | WP67003793 | Slide, Temperature (Replaces: 12655402) |
|
Immediately | $ 74.75 | ||||
| 13 | WP67006415 | Screw (4) (Replaces: 12990512) |
|
$ 7.80 | |||||
| 14 | WPW10235370 | Glide, Drawer(2) (Replaces: 13058101V) |
|
Immediately | $ 199.80 | ||||
| 15 | 67006425 | Screw (Replaces: 12990513) |
|
Immediately | $ 6.95 | ||||
| 16 | W10874836 | Endcap, Pantry (left) (Replaces: 12656106) |
|
Immediately | $ 38.43 | ||||
| 16 | W10874836 | Endcap, Pantry (right) (Replaces: 12656022) |
|
Immediately | $ 38.43 | ||||
| 17 | WP67004515 | Pan, Crisper (2) (Replaces: 12804601SP) |
|
Immediately | $ 168.30 | ||||
| 18 | WP12642303WD | Brace, Crisper (Replaces: 12642303WD) |
|
$ 106.91 | |||||
| 19 | W10231484 | Trim, Crisper |
|
$ 51.36 | |||||
| 20 | WP67003854 | Frame, Crisper (Replaces: 12796301SP) |
|
Immediately | $ 227.55 | ||||
| 21 | WP67006704 | Glass, Crisper Cover (Replaces: 12204824) |
|
$ 212.77 | |||||
| 22 | W10273463 | Ladder, Center |
|
$ 28.20 | |||||
| 23 | W10251971 | Ladder, Side |
|
$ 56.64 | |||||
| 24 | 67006425 | Screw (6) (Replaces: 12990513) |
|
Immediately | $ 6.95 | ||||
| 25 | W10709795 | Screw (2) (Replaces: 12990515) |
|
$ 13.13 | |||||
| 26 | WP98165 | Screw (4) (Replaces: 12990504) |
|
$ 8.00 | |||||
| 27 | WP67005864 | Slide, Humidity Control (Replaces: 12530805SP) |
|
Immediately | $ 7.81 | ||||
| 28 | WP67003795 | Rod, Temperature Control (Replaces: 12655304) |
|
$ 8.05 | |||||
| 29 | WP67003531 | Drawer, Pantry (Replaces: 12731302) |
|
$ 162.82 | |||||
| 30 | W11498983 | Knob, Temperature Control (Replaces: 12655204V) |
|
$ 29.18 | |||||
| 31 | WP67005930 | Door, Pantry Drawer (Replaces: 12656817) |
|
Immediately | $ 81.56 | ||||
| 32 | W10150039 | Basket, Freezer (lower) |
|
$ 128.38 | |||||
| 33 | W10847995 | Divider, Lower Basket (Replaces: W10146440) |
|
$ 88.08 | |||||
| 34 | WPW10348246 | Basket, Freezer (upper) (Replaces: W10209706) |
|
$ 261.88 | |||||
| 35 | WPW10474715 | Gear (Replaces: W10146446) |
|
Immediately | $ 31.20 | ||||
| 36 | WPW10474716 | Gear (Replaces: W10158749) |
|
Immediately | $ 30.88 | ||||
| 37 | W11173556 | Shaft (Replaces: 12812904WD) |
|
$ 30.84 | |||||
| 38 | W10348260 | Mount, Rh (Replaces: W10233899) |
|
$ 85.62 | |||||
| 39 | W10348259 | Mount, Lh (Replaces: W10233898) |
|
$ 85.59 | |||||
| 40 | WP13062602 | Support, Crisper (Replaces: 13062602) |
|
$ 80.83 | |||||
| 41 | W10205737 | Shelf, Stationary (Replaces: 12654710) |
|
$ 289.68 | |||||
| 42 | WP67006104 | Tray, Lower (Replaces: 13025201) |
|
$ 85.06 | |||||
| 43 | WPW10326469 | Rail, Center (Replaces: W10326469) |
|
Immediately | $ 30.70 | ||||
| 44 | 12909404SP | Front, Crisper |
|
$ 29.86 |
