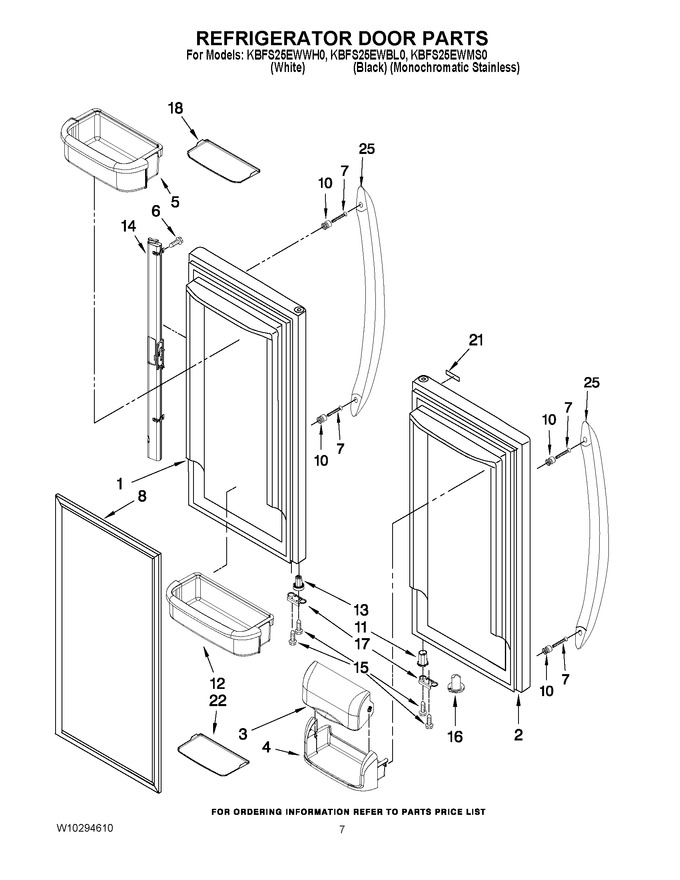

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10199095		Door, Left (white)		Appelez-nous	-
1	12978051SQ		Door, Left Stainless		Appelez-nous	-
1	12978074BQ		Door, Left (black)		Appelez-nous	-
2	12978052SQ		Door, Right Stainless		Appelez-nous	-
2	12978075BQ		Door, Right (black)		Appelez-nous	-
2	W10199092		Door, Right (white)		Appelez-nous	-
3	WP67003637		Door, Dairy   (Replaces: 12804701SP)			Immediately	$ 78.73
4	WP67001279		Tray, Dairy   (Replaces: 12369502SP)			Immediately	$ 83.82
5	WPW10371193		Bucket, Medium   (Replaces: 12849104SP)			Immediately	$ 74.80
6	W11311945		Screw   (Replaces: 12990204)				$ 14.02
7	WP3387230		Screw, Mount   (Replaces: 3196181)			Immediately	$ 8.54
8	W10830162		Gasket, Door (2) (apollo Grey)   (Replaces: W10179332)			Immediately	$ 212.57
8	W10830189		Gasket, Door (2) (white)   (Replaces: W10163894)			Immediately	$ 228.91
8	W11368721		Gasket, Door (2) (black)   (Replaces: W10163895)			Immediately	$ 169.21
10	12691403		Mount, Handle		Appelez-nous	-
11	WP67002731		Bushing, Door (bottom Right) (black)   (Replaces: 12028601B)			Immediately	$ 7.85
11	12028601AP		Bushing, Door (bottom Right) (apollo Grey)				$ 5.71
11	12028601W		Bushing, Door (bottom Right) (white)				$ 22.89
12	WPW10289497		Bucket, Gallon   (Replaces: 12699206SP)			Immediately	$ 77.23
13	67002722		Bushing, Door (bottom Left) (white)   (Replaces: 12699301W)				$ 21.11
13	WP67002721		Bushing, Door (bottom Left) (black)   (Replaces: 12699301B)			Immediately	$ 7.86
13	12699301AP		Bushing, Door (bottom Left) (apollo Grey)				$ 13.44
14	WP12722803B		Mullion, Door (black)   (Replaces: 12722803B)			Immediately	$ 206.80
14	WP12722803AP		Mullion, Door (apollo Grey)   (Replaces: 12722803AP)			Immediately	$ 177.93
14	WP12722803W		Mullion, Door (white)   (Replaces: 12722803W)			Immediately	$ 261.21
15	WP98165		Screw   (Replaces: 12990504)				$ 8.00
16	WP12028505AP		Closure, Door (stainless)   (Replaces: 12028505AP)			Immediately	$ 61.46
16	WP67003638		Closure, Door (white)   (Replaces: 12028505W)			Immediately	$ 7.76
16	WP67003639		Closure, Door (black)   (Replaces: 12028505B)				$ 86.02
17	W11708403		Stop, Door (black)   (Replaces: 12968202B)			Immediately	$ 14.05
17	W11703060		Stop, Door (apollo Grey)   (Replaces: 12968202AP)				$ 14.72
17	12968202W		Stop, Door (white)				$ 65.99
18	WPW10450021		Mat, Medium   (Replaces: 12567321SP)			Immediately	$ 96.12
21	W10046610		Nameplate (stainless)				$ 33.40
21	WPW10243392		Nameplate (black)   (Replaces: W10046640)				$ 70.19
21	WPW10243393		Nameplate (white)   (Replaces: W10046670)				$ 66.65
22	W11402028		Mat, Gallon   (Replaces: 12567320SP)			Immediately	$ 85.47
25	W10119643		Handle, Door (black)		Appelez-nous	-
25	WPW10314517K		Handle, Door (stainless)   (Replaces: W10119644)				$ 231.78
25	WPW10314515		Handle, Door (white)   (Replaces: W10119642)				$ 227.13
