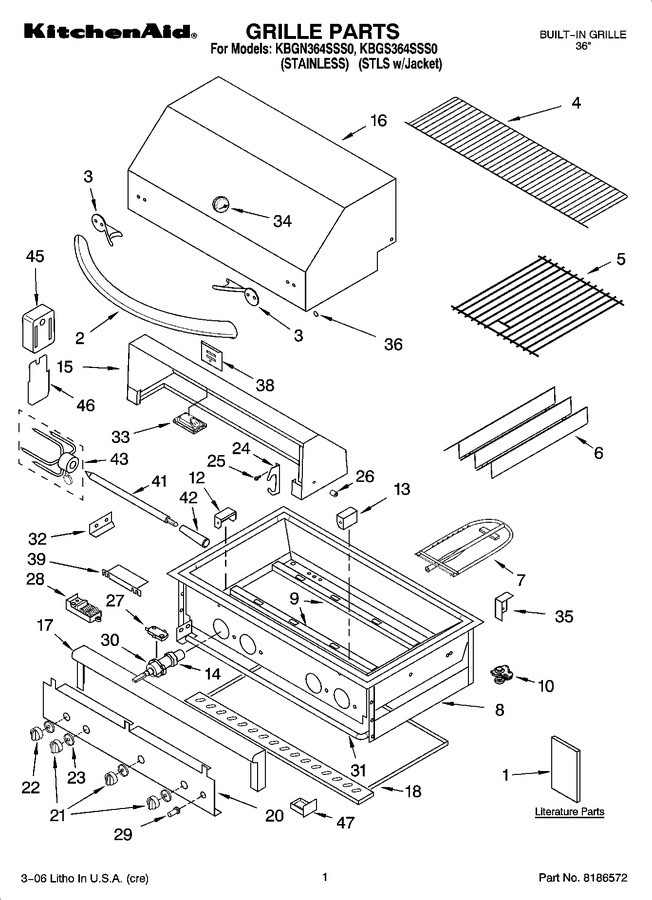

01 - Grille Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 9763754 | U & C Guide / Instructions, Installation |
|
- | |||||
| 2 | 8186576 | Handle, Hood |
|
- | |||||
| 3 | 8186540 | Insulator, Handle |
|
- | |||||
| 4 | 8186641 | Shelf, Warmer |
|
- | |||||
| 5 | 8186636 | Grate (2) |
|
- | |||||
| 6 | 8186579 | Plate, Sear (3) |
|
- | |||||
| 7 | 8190632 | Burner, Main (3) |
|
$ 0.01 | |||||
| 9 | 8186594 | Hanger, Burner (2) |
|
- | |||||
| 10 | 8186608 | Regulator |
|
- | |||||
| 12 | 8186593 | Left Collector Box |
|
- | |||||
| 13 | 8186592 | Right Collectr Box |
|
- | |||||
| 14 | 8186642 | Orifice (main Burner (3)) |
|
- | |||||
| 14 | 8186627 | Orifice (ir) |
|
- | |||||
| 14 | 8186644 | Orifice (ir) |
|
- | |||||
| 15 | 8186560 | Hood Asy, Rear |
|
- | |||||
| 16 | 8186559 | Hood Asy, Front |
|
- | |||||
| 17 | 8186561 | Bullnose Asy |
|
- | |||||
| 18 | 8186538 | Tray, Drip |
|
- | |||||
| 20 | 8186537 | Panel, Front |
|
- | |||||
| 21 | 8186542 | Knob, Burner (3) |
|
- | |||||
| 22 | 8186543 | Knob, Ir |
|
- | |||||
| 23 | 8186578 | Bezel (5) |
|
- | |||||
| 24 | 8186620 | Saddle, Spit (2) |
|
- | |||||
| 25 | WPW10068250 | Screw (Replaces: 8190032) |
|
$ 3.84 | |||||
| 26 | 8186619 | Spacer, Hood (2) |
|
- | |||||
| 27 | 8190638 | Switch, Igniter |
|
- | |||||
| 28 | 8186554 | Module, Spark (4 Spark) |
|
- | |||||
| 29 | 8186657 | Switch, Light |
|
- | |||||
| 30 | 8186541 | Valve, Burner (main (3)) |
|
- | |||||
| 30 | 8186567 | Valve, Burner (ir) |
|
- | |||||
| 31 | 8190189 | Manifold |
|
- | |||||
| 32 | 8186611 | Jack, Plug |
|
- | |||||
| 33 | 8186655 | Light, Halogen |
|
- | |||||
| 34 | 8186656 | Thermometer |
|
- | |||||
| 35 | 8186586 | Stop, Hood (right) |
|
- | |||||
| 35 | 8186581 | Stop, Hood (left) |
|
- | |||||
| 36 | 8186603 | Plug, Hole (4) |
|
- | |||||
| 38 | 8186588 | Cover, Rear |
|
- | |||||
| 39 | 8186575 | Shield, Igniter (2) |
|
- | |||||
| 41 | 8186606 | Rod, Spit |
|
- | |||||
| 42 | 8186638 | Handle, Rotisserie |
|
- | |||||
| 43 | 8186610 | Skewer (2) |
|
- | |||||
| 45 | 8190015 | Motor, Rotisserie |
|
- | |||||
| 46 | 8186563 | Bracket, Motor |
|
- | |||||
| 47 | 8190033 | Clip, J Type 8-32 |
|
- | |||||
| 47 | 8190122 | Nut, Combination |
|
- | |||||
| 47 | 8190123 | Lockwasher 1/4ss |
|
- | |||||
| 47 | 8190124 | Screw 1/4-20x1/2ss (hex Bolt) |
|
- | |||||
| 47 | W11708395 | Washer, Flat (Replaces: 8190125) |
|
$ 4.02 | |||||
| 47 | 8186568 | Washer, Flat (7) (3/8 X 3/4 X 1/16) |
|
- | |||||
| 47 | 8186565 | Tray, Battery Assy |
|
- | |||||
| 47 | 8186580 | Logo, Kitchenaid |
|
- | |||||
| 47 | WP2004333 | Clip, Logo (4) (Replaces: 8190114) |
|
$ 10.12 | |||||
| 47 | 8190158 | Tubing, Ir 3/8x4` |
|
- | |||||
| 47 | 8190178 | Elbow, Ir Safety |
|
- | |||||
| 47 | 8190140 | Plug, Pipe 1/8 C/s Hex Head |
|
- | |||||
| 47 | 8190174 | Valve, Ir Safety |
|
- | |||||
| 47 | 8186639 | Thermocouple, Ir |
|
- | |||||
| 47 | 8186548 | Electrode/wire Kit |
|
- | |||||
| 47 | 8186614 | Infared Weld Asy |
|
- | |||||
| 47 | 8186615 | Bracket, Ir Igntr |
|
- | |||||
| 47 | 8186616 | Cover, Ir Igntr |
|
- | |||||
| 47 | 8186607 | Washer, Fiber (4) (handle Hood) |
|
- | |||||
| 47 | 8186598 | Transformer |
|
- | |||||
| 47 | 8186550 | Cover, Bullnose |
|
- | |||||
| 47 | WP8281196 | Screw 8-32x1`` Ss (spark Target) (Replaces: 8190633) |
|
Immediately | $ 6.80 | ||||
| 47 | WP488130 | Nut, Hex Lock (8-32 Ss Spark) (Replaces: 8190634) |
|
$ 6.59 | |||||
| 47 | WPW10139757 | Nut, Hex 1/4-20ss (Replaces: 8190116) |
|
$ 7.93 | |||||
| 47 | 8190117 | Screw 1/4-20x3/8ss |
|
- | |||||
| 47 | WP67006715 | Screw 1/4-20x7/8 (hex Cap) (Replaces: 8190118) |
|
$ 6.80 | |||||
| 47 | 8190121 | Screw 18x1/2 Pan |
|
- |
