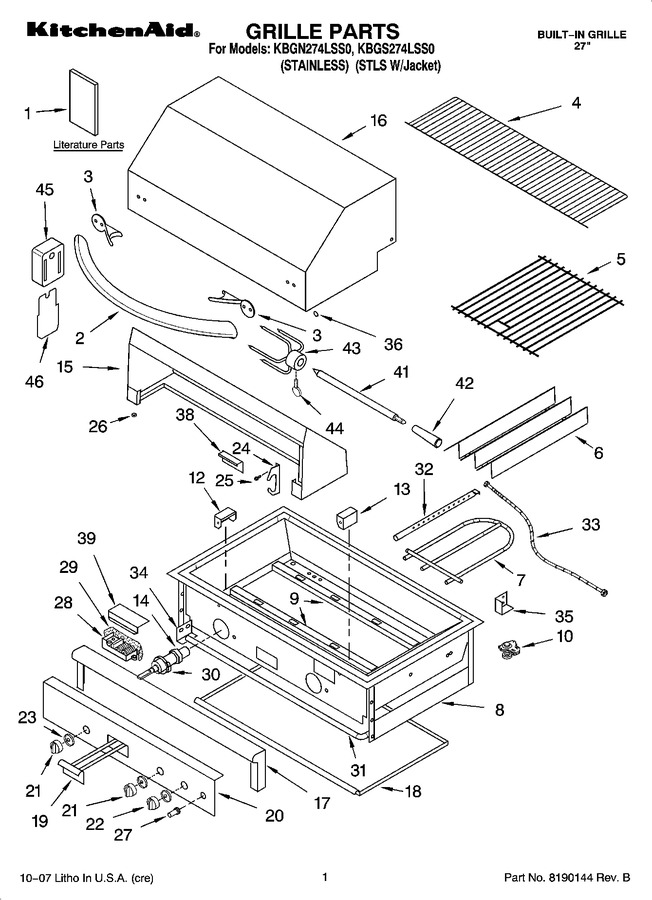

01 - Grille Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LIT8285450 | Literature Parts (u & C Guide / Instructions, Installation) |
|
- | |||||
| 2 | 8190085 | Handle, Hood |
|
- | |||||
| 3 | 8190084 | Insulator, Handle |
|
- | |||||
| 4 | 8190112 | Shelf, Warmer |
|
- | |||||
| 5 | 8190126 | Grate (2) |
|
- | |||||
| 6 | 8190088 | Plate, Sear (2) |
|
- | |||||
| 7 | 8190103 | Burner, Main (2) |
|
- | |||||
| 9 | 8190131 | Hanger, Burner (2) |
|
- | |||||
| 10 | 8190426 | Regulator |
|
- | |||||
| 12 | 8190100 | Left Collector Box |
|
- | |||||
| 13 | 8190099 | Right Collectr Box |
|
- | |||||
| 14 | 4396312 | Orifices-nat Gas |
|
$ 164.14 | |||||
| 15 | 8190160 | Hood Asy, Rear |
|
- | |||||
| 16 | 8190108 | Hood Asy, Front |
|
- | |||||
| 17 | 8190109 | Bullnose Asy |
|
- | |||||
| 18 | 8190082 | Tray, Drip |
|
- | |||||
| 19 | 8190110 | Tray Asy, Smoker |
|
- | |||||
| 20 | 8190157 | Panel, Front |
|
- | |||||
| 21 | 8190028 | Knob, Burner (2) |
|
$ 23.95 | |||||
| 22 | 8190030 | Knob, Smoker |
|
- | |||||
| 23 | 8190027 | Bezel (3) |
|
- | |||||
| 24 | 8190111 | Saddle, Spit (2) |
|
- | |||||
| 25 | WPW10068250 | Screw (Replaces: 8190032) |
|
$ 3.84 | |||||
| 26 | 8190031 | Spacer, Hood (2) |
|
- | |||||
| 27 | 8190029 | Switch, Igniter |
|
- | |||||
| 28 | 8190459 | Module, Spark |
|
- | |||||
| 29 | 8190130 | Insulation, Module |
|
- | |||||
| 30 | 8190141 | Valve, Burner (smoker / Ir) |
|
- | |||||
| 30 | 8190024 | Valve, Burner (main (2)) |
|
- | |||||
| 31 | 8190137 | Manifold |
|
- | |||||
| 32 | 8190127 | Burner, Smoker |
|
- | |||||
| 33 | 8190128 | Flex Tube, Smoker |
|
- | |||||
| 34 | 8190139 | Bracket, Manifold |
|
- | |||||
| 35 | 8190091 | Stop, Hood (left) |
|
- | |||||
| 35 | 8190092 | Stop, Hood (right) |
|
- | |||||
| 36 | 8190104 | Plug, Hole (4) |
|
- | |||||
| 38 | 8190094 | Cover, Rear |
|
- | |||||
| 39 | 8190081 | Shield, Igniter |
|
- | |||||
| 41 | 8190172 | Rod, Spit |
|
- | |||||
| 42 | 8190171 | Handle, Rotisserie |
|
- | |||||
| 43 | 8190170 | Skewer (2) |
|
- | |||||
| 44 | 8190119 | Screw, Thumb (2) |
|
- | |||||
| 45 | 8190015 | Motor, Rotisserie |
|
- | |||||
| 46 | 8190159 | Bracket, Motor |
|
- | |||||
| 8190090 | Logo, Kitchenaid |
|
- | ||||||
| 8190737 | 27`` Insulated Jacket (model Kbgs274lss0 Only) |
|
- | ||||||
| WPW10139757 | Nut, Hex 1/4-20ss (Replaces: 8190116) |
|
$ 7.93 | ||||||
| 8190033 | Clip, J Type 8-32 |
|
- | ||||||
| 8190173 | Coupler, Brass |
|
- | ||||||
| 8190035 | Elbow 3/8 To 1/2 |
|
- | ||||||
| 8190169 | Union, Ir (double End 3/8) |
|
- | ||||||
| 8190167 | Elbow, Orifice (w/o Hood & Pin) |
|
- | ||||||
| 8190166 | Wire, Ir Igntr 30`` |
|
- | ||||||
| 8190105 | Cover, Bullnose |
|
- | ||||||
| 8190165 | Cover, Ir Igntr |
|
- | ||||||
| 8190162 | Bracket, Ir Igntr |
|
- | ||||||
| W11708395 | Washer, Flat (1/4x11/16ss) (Replaces: 8190125) |
|
$ 4.02 | ||||||
| 8190161 | Infared Weld Asy |
|
- | ||||||
| 8190036 | Electrode Kit |
|
- | ||||||
| 8190021 | Thermocouple, Ir |
|
- | ||||||
| 8190174 | Valve, Ir Safety |
|
- | ||||||
| 8190106 | Wire, Battery |
|
- | ||||||
| 8190156 | Battery, 9 Volt |
|
- | ||||||
| 8190140 | Plug, Pipe 1/8 C/s Hex Head |
|
- | ||||||
| 8190178 | Elbow, Ir Safety |
|
- | ||||||
| 8190158 | Tubing, Ir 3/8x4` |
|
- | ||||||
| WP2004333 | Clip, Logo (4) (Replaces: 8190114) |
|
$ 10.12 | ||||||
| 8190124 | Screw 1/4-20x1/2ss (hex Bolt) |
|
- | ||||||
| 8190123 | Lockwasher 1/4ss |
|
- | ||||||
| 8190122 | Nut, Combination |
|
- | ||||||
| 8190121 | Screw 18x1/2 Pan |
|
- | ||||||
| WP67006715 | Screw 1/4-20x7/8 (hex Cap) (Replaces: 8190118) |
|
$ 6.80 | ||||||
| 8190117 | Screw 1/4-20x3/8ss |
|
- |
