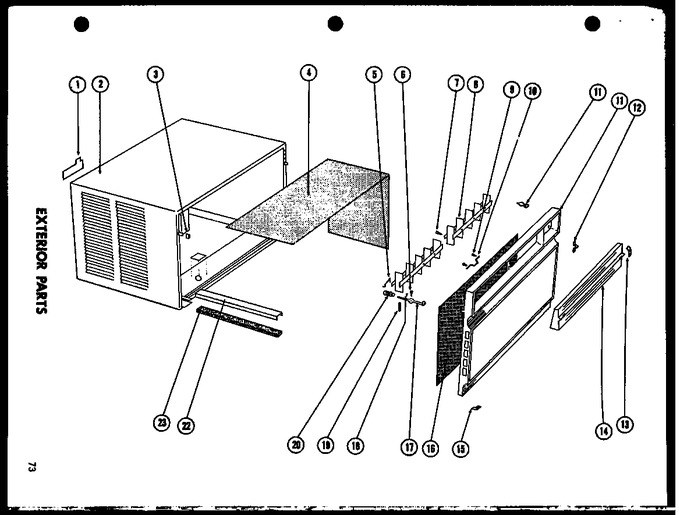

01 - Installation Kit Parts


02 - Interior Parts


03 - Page 7


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	B4772101		(+) Name Plate L		Appelez-nous	-
2	D5421001		Outer Case		Appelez-nous	-
3	A4577802		Hook, Cabinet Front Frame Bott		Appelez-nous	-
4	A4654301		Insulation, Outer Case Sides &		Appelez-nous	-
5	A4623801		Linkage Bar		Appelez-nous	-
6	M0590201		Clinch		Appelez-nous	-
7	M0229004		Screw		Appelez-nous	-
8	C5832001		Louver		Appelez-nous	-
9	M0229004		Screw		Appelez-nous	-
10	B5167101		Pin		Appelez-nous	-
11	A4660001		Strike		Appelez-nous	-
11	D5424104		Front, Cabinet		Appelez-nous	-
12	M0115701		Clip		Appelez-nous	-
13	A4664502		Friction Clip		Appelez-nous	-
14	D5423902		Horizontal, Louver Box		Appelez-nous	-
16	D5427301		Filter		Appelez-nous	-
17	A4655302		Lever		Appelez-nous	-
18	M0229004		Screw		Appelez-nous	-
19	A4623501		Pin,lever		Appelez-nous	-
20	A4624102		Spring,lever		Appelez-nous	-
22	B5169801		Glide		Appelez-nous	-
23	A4591107		Gasket, Polyethylene, Outer Ca		Appelez-nous	-
24	M0234827		Thumb, Screw		Appelez-nous	-
NI	M0288407		Speed Nut		Appelez-nous	-
NI	R9800670		Kit, Screw   (Replaces: M0211030)				$ 10.58
