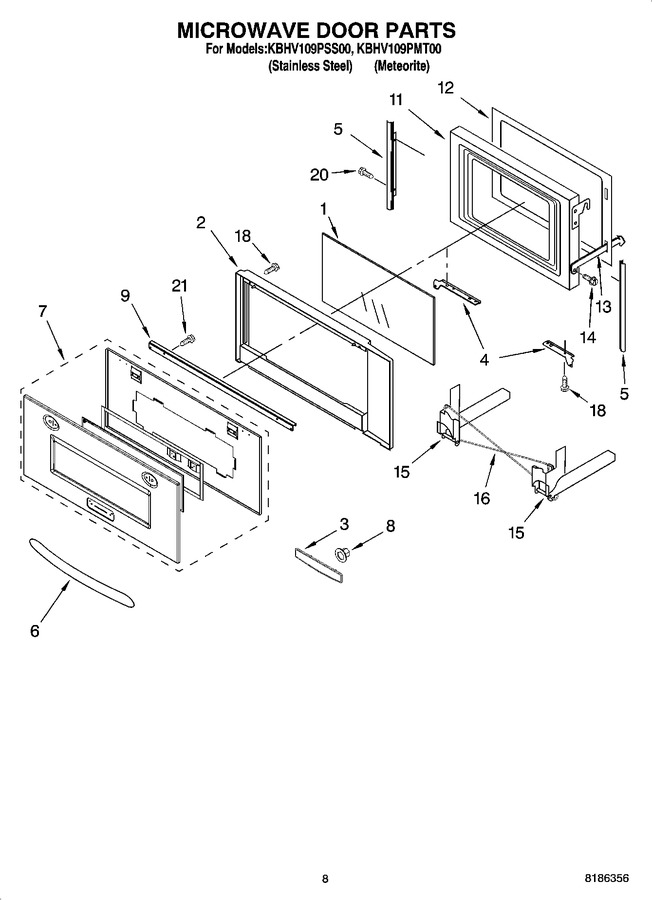

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4448937		Glass, Middle				$ 66.02
2	WP8303556		Frame, Door   (Replaces: 8303556)				$ 265.47
3	8531788		Nameplate		Appelez-nous	-
4	4449142		Bracket, Mounting (left Side)				$ 52.12
4	4449141		Bracket, Mounting (right Side)				$ 31.33
5	4449086		Filler, Side (left Side)				$ 36.10
5	4449083		Filler, Side (right Side)				$ 36.44
6	8301679		Handle, Door (stainless)		Appelez-nous	-
7	8302492		Glass, Outer (meteorite)		Appelez-nous	-
7	8302491		Glass, Outer (stainless)		Appelez-nous	-
8	4453107		Palnut		Appelez-nous	-
9	4452331		Bracket, Handle				$ 48.67
11	4375339		Door, Plate		Appelez-nous	-
12	4375414		Frame, Inner		Appelez-nous	-
13	4375330		Strap, Door		Appelez-nous	-
14	4375313		Screw		Appelez-nous	-
15	WP4375324		Hinge, Door (right)   (Replaces: 4375324)				$ 92.63
15	WP4375323		Hinge, Door (left)   (Replaces: 4375323)				$ 92.98
16	WP4451009		Spring, Torsion (bl/wh/bt Model)   (Replaces: 4451009)				$ 140.51
16	WP4452396		Spring, Torsion (stainless Model)   (Replaces: 4452396)			Immediately	$ 98.60
18	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
20	WP4450038		Screw   (Replaces: 4450038)				$ 8.30
21	312713		Screw		Appelez-nous	-
