SELECT A DIAGRAM
New Model Search:

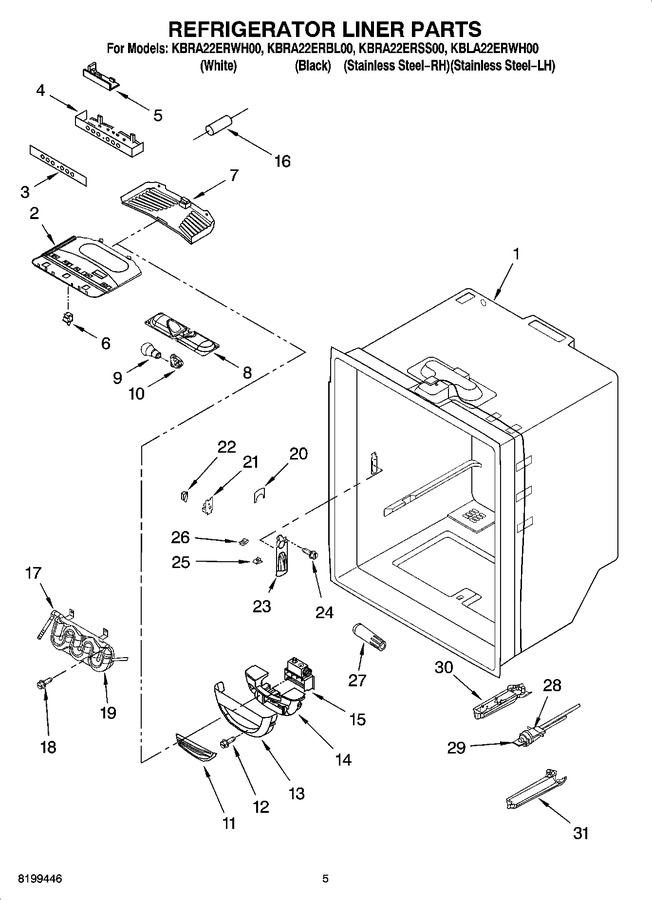

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/A | Liner (not A Serviceable Part) |
|
- | |||||
| 2 | 8208184 | Bracket, Control And Lights |
|
- | |||||
| 3 | 8208271 | Overlay |
|
- | |||||
| 4 | 8208270 | Housing Electronic Control |
|
- | |||||
| 5 | 8208269 | Electronic Control |
|
- | |||||
| 6 | W11384469 | Switch, Light (Replaces: 4344571) |
|
Immediately | $ 35.18 | ||||
| 7 | W11284721 | Cover, Light (Replaces: 8208188) |
|
$ 95.42 | |||||
| 8 | 12806601 | Housing, Light (Replaces: 8208189) |
|
$ 99.18 | |||||
| 9 | W11679940 | Bulb, Light (2) (Replaces: 8208190) |
|
Immediately | $ 10.17 | ||||
| 10 | W11447232 | Socket, Light (2) (Replaces: 8170839) |
|
Immediately | $ 12.48 | ||||
| 11 | 67003900 | Insert, Damper Cover (Replaces: 8208191) |
|
$ 7.70 | |||||
| 12 | W11772394 | Screw (Replaces: 8208192) |
|
Immediately | $ 11.90 | ||||
| 13 | WP12806701 | Cover, Damper (Replaces: 8208193) |
|
$ 106.79 | |||||
| 14 | 8208194 | Insulation |
|
- | |||||
| 15 | WP67003903 | Control, Damper (Replaces: 8208195) |
|
Immediately | $ 156.26 | ||||
| 16 | 12002355 | Thermistor (Replaces: 8208278) |
|
Immediately | $ 44.10 | ||||
| 17 | WP2300868 | Union (Replaces: 8208165) |
|
Immediately | $ 33.29 | ||||
| 18 | WP98165 | Screw (Replaces: 4343675) |
|
$ 7.71 | |||||
| 19 | 8208377 | Tank, Water |
|
- | |||||
| 20 | W11519867 | Top, Dispenser (Replaces: 8208276) |
|
Immediately | $ 23.72 | ||||
| 21 | 12707303SP | Plate, Switch (Replaces: 8171035) |
|
$ 72.38 | |||||
| 22 | WP12575501 | Switch, Limit (Replaces: 8171036) |
|
$ 65.12 | |||||
| 23 | 8171034 | Dispenser |
|
- | |||||
| 24 | 67006425 | Screw (Replaces: 4344396) |
|
Immediately | $ 6.57 | ||||
| 25 | 67002816 | Clip, Waterline (Replaces: 8171038) |
|
$ 17.24 | |||||
| 26 | 4343952 | Clip, Front |
|
- | |||||
| 27 | EDR4RXD1B | Filter, Water (Replaces: 8171249) |
|
Immediately | $ 49.99 | ||||
| 28 | WP67004106 | Housing, Water Filter Assembly (Replaces: 8171248) |
|
Immediately | $ 120.89 | ||||
| 29 | W11395888 | Head, Filter Bypass (Replaces: 8171042) |
|
Immediately | $ 45.65 | ||||
| 30 | WP67001668 | Plate, Filter (Replaces: 8171030) |
|
Immediately | $ 15.08 | ||||
| 31 | 67005644 | Harness, Controls (refrigerator) (includes 16) (Replaces: 8208311) |
|
$ 68.40 | |||||
| 31 | WP12568001 | Cover, Filter (Replaces: 8171033) |
|
Immediately | $ 78.08 | ||||
| 31 | N/A | Following Parts Not Illustrated |
|
- | |||||
| 31 | 8208197 | Harness, Damper Control |
|
- |
