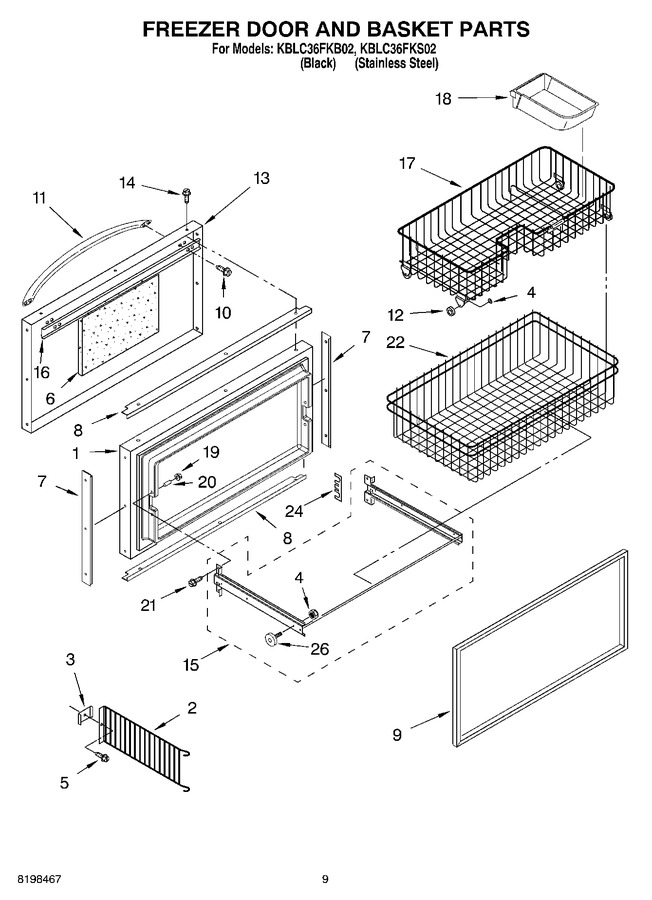

06 - Freezer Door And Basket Parts


07 - Refrigerator Door Parts


08 - Upper Unit Parts


09 - Lower Unit And Tube Parts


10 - Icemaker Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2188599		Freezer Door Panel (includes Item 9)		Appelez-nous	-
2	2204525		Divider, Basket		Appelez-nous	-
3	2207429		Clamp, Divider		Appelez-nous	-
4	2207415		Nut, Crimp				$ 14.04
5	WPW10141625		Screw   (Replaces: 488649)				$ 22.22
6	2005400		Filler, Foam		Appelez-nous	-
7	2221031		Spacer, Door Edge - Side		Appelez-nous	-
8	2221033		Spacer, Door Edge Top & Bottom		Appelez-nous	-
9	2188533		Door Gasket, Magnetic		Appelez-nous	-
10	WP308544		Screw, 10-24 X 1/2   (Replaces: 308544)			Immediately	$ 8.30
11	2209095B		Handle, Door (black)		Appelez-nous	-
11	2005290		Handle, Door (stainless Steel)				$ 130.36
12	W11214482		Roller   (Replaces: 2204542)				$ 101.03
13	2257417B		Skin, Door (black)		Appelez-nous	-
13	2005399		Skin, Door (stainless Steel)		Appelez-nous	-
14	W10851443		Screw 8-15 X 1/2 (black)   (Replaces: 8281252)			Immediately	$ 8.13
14	WP8281250		Screw 8-15 X 1/2 (stainless Steel)   (Replaces: 8281250)				$ 11.42
15	2207533		Bracket, Assembly Freezer Basket		Appelez-nous	-
16	2209202		Plate, Handle		Appelez-nous	-
17	2005376		Basket, Upper		Appelez-nous	-
18	2174124		Pan, Ice Cube		Appelez-nous	-
19	WP2207454		Nut, Hex   (Replaces: 2207454)				$ 11.38
20	2207471		Bushing		Appelez-nous	-
21	3400507		Screw		Appelez-nous	-
22	2006244		Basket, Freezer Lower		Appelez-nous	-
24	2207576		Spacer		Appelez-nous	-
26	2207550		Roller		Appelez-nous	-
