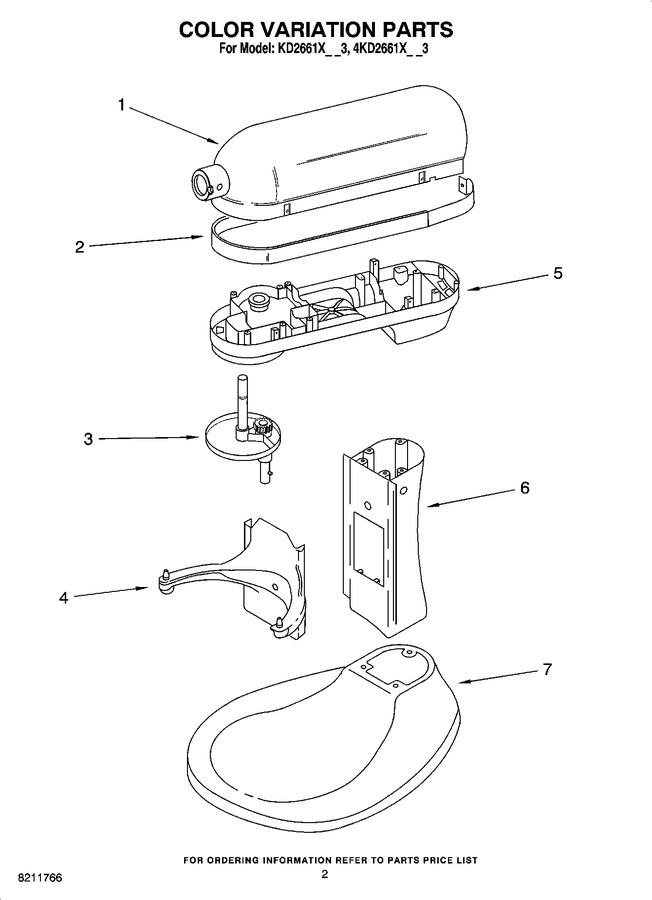

01 - Color Variation Parts
02 - Case, Gearing And Planetary Unit
03 - Base And Pedestal Unit And Accessory Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 9703433 | Motor Housing (metallic Chrome) |
|
$ 90.15 | |||||
| 2 | 9703640 | Trim Band (silver/gray) |
|
- | |||||
| 3 | WP9708175 | Planetary (metallic Chrome) (Replaces: 9708175) |
|
Immediately | $ 70.69 | ||||
| 4 | 9703397 | Bowl Support-metallic Chrome |
|
$ 76.42 | |||||
| 5 | 9706306 | Lower Gearcase (metallic Chrome) |
|
$ 82.38 | |||||
| 6 | 9703349 | Column-metallic Chrome |
|
- | |||||
| 7 | 9703346 | Base & Foot Assembly (metallic Chrome) |
|
- |
