SELECT A DIAGRAM

01 - Cabinet Parts


02 - Cabinet And Breaker Trim Parts


03 - Top Grille And Unit Cover Parts


04 - Refrigerator Liner Parts


05 - Freezer Liner Parts


06 - Shelf Parts


07 - Refrigerator Door Parts


08 - Freezer Door And Basket Parts


09 - Upper Unit Parts


10 - Lower Unit And Tube Parts


11 - Icemaker Parts

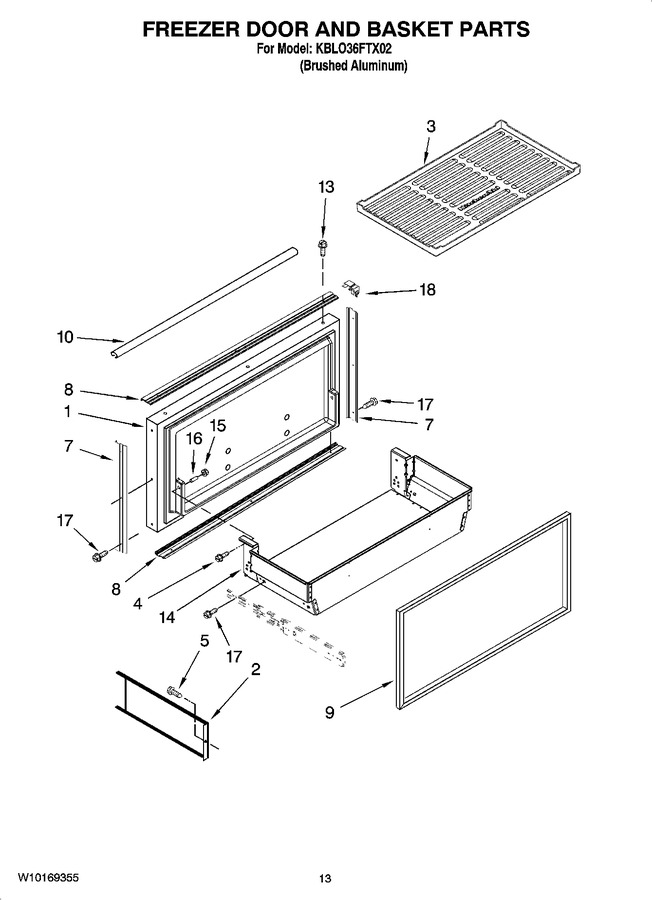

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2327401		Freezer Door Panel (includes Item 9)		Appelez-nous	-
2	2317101		Divider, Basket (2)		Appelez-nous	-
3	2314025		Mat, Basket		Appelez-nous	-
4	W10135775		Screw, 5/16 X 1				$ 14.93
5	WPW10141625		Screw   (Replaces: 488649)				$ 22.22
7	2309477		Trim-door, Side				$ 220.55
8	2309478		Trim-door,				$ 187.20
9	2302710		Door Gasket, Magnetic   (Replaces: 2300185)				$ 307.89
10	2006329		Cover, Trim				$ 95.97
13	WP8281250		Screw 8-15 X 1/2   (Replaces: 8281250)				$ 11.42
14	W10258182		Basket Assembly, Freezer   (Replaces: 2327533)				$ 254.40
15	WP2207454		Nut, Hex   (Replaces: 2207454)				$ 11.38
16	W10001190		Washer				$ 8.80
17	W10109030		Screw, 10-24 X 1/4 (basket To Slide)				$ 15.35
18	2207457		Trim, Corner (2)				$ 57.12
