SELECT A DIAGRAM

01 - Cabinet Back


02 - Compressor


03 - Controls


04 - Crisper Assembly


05 - Evap Fan Assy./crisp Light/waterfilter


06 - Evaporator Assy./rollers/water Tank


07 - Fountain


08 - Freezer Compartment


09 - Freezer Door


10 - Freezer Shelves


11 - Handles


12 - Hinges


13 - Ice Bucket Assy.


14 - Ice Maker


15 - Refrigerator Door


16 - Refrigerator Shelves


17 - Supplemental Information


18 - Wiring Information

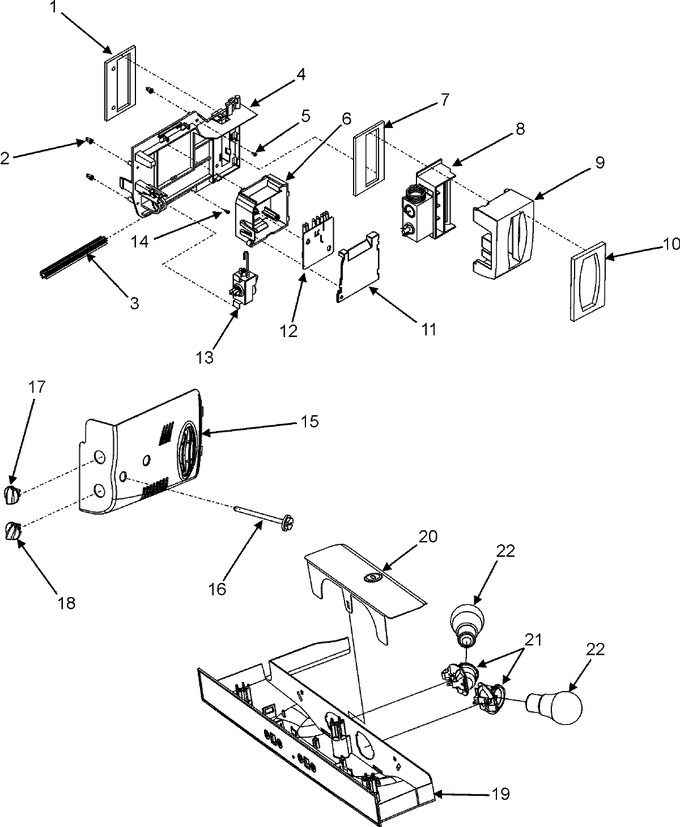

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	67004031		Gasket, Damper	50	Appelez-nous	-
2	M0580205		Grommet, Screw	50	Appelez-nous	-
3	12571801		Extension, Knob	50	Appelez-nous	-
4	67002981		Bracket, Control	50	Appelez-nous	-
5	M0216539		Screw	50	Appelez-nous	-
6	12624801		Box, Defrost Control	50	Appelez-nous	-
7	12582801		Gasket, Damper	50			$ 7.62
8	12571701		Control, Damper	50			$ 107.01
9	12604201		Insulation, Damper	50	Appelez-nous	-
10	12582901		Gasket, Control Cover	50			$ 5.51
11	12624901		Cover, Defrost Control	50	Appelez-nous	-
12	W11227239		Board, Adaptive Defrost   (Replaces: 67003375)	50		Immediately	$ 381.68
13	WP67005335		Control, Fz Temp   (Replaces: 67003815)	50			$ 141.30
14	WP98165		Screw, Sm   (Replaces: M0211018)	50			$ 8.57
15	67004918		Cover, Control	50	Appelez-nous	-
16	M0231426		Screw	50	Appelez-nous	-
17	12581101		Knob, Control	50	Appelez-nous	-
18	12581102		Knob, Control	50	Appelez-nous	-
19	67004240		Housing, Fz Control	50	Appelez-nous	-
19	M0238636		Screw-sm	50	Appelez-nous	-
20	67005038		Reflector, Light	50	Appelez-nous	-
21	W11447232		Socket, Light   (Replaces: Y12570701)	50		Immediately	$ 13.87
22	W11679940		Bulb, Light (40 Watt)   (Replaces: 67003568)	50		Immediately	$ 11.30
23	67004154		Harness, Control	50	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
