Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 2300086S Top Grille Assembly (stainless Steel) Appelez-nous -
2 2259320 Cover, Unit Appelez-nous -
3 2300048 Panel, Insert Appelez-nous -
4 2256466 Back Panel Special Order $ 327.22

5 2259095 Front, Unit Cover Appelez-nous -
6 WP965173 Screw   (Replaces: 487415) In-Stock Immediately $ 11.87

7 2187423 Wire Assembly Appelez-nous -
9 489348 Clamp Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

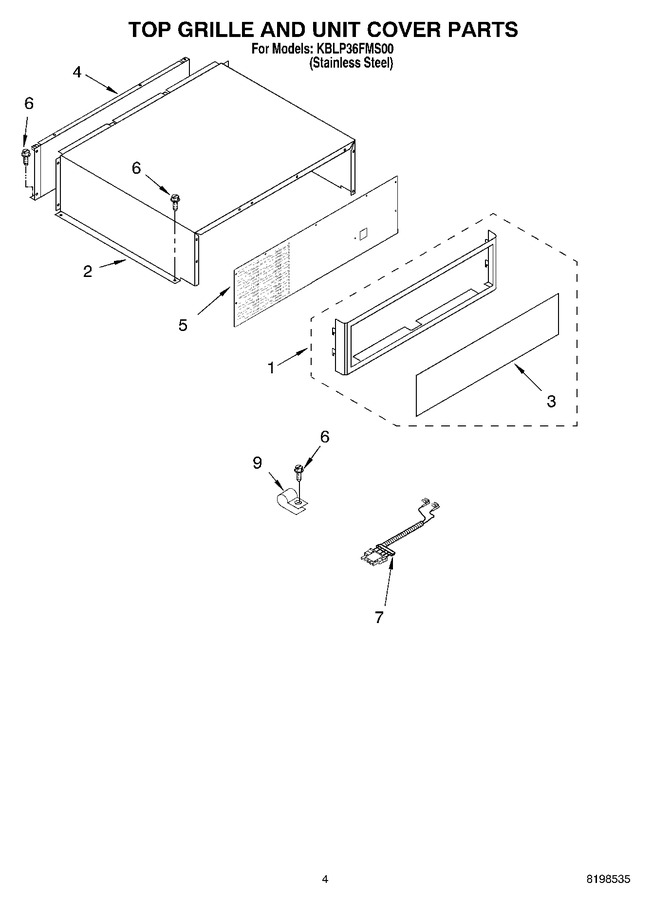

Diagram for KBLP36FMS00
