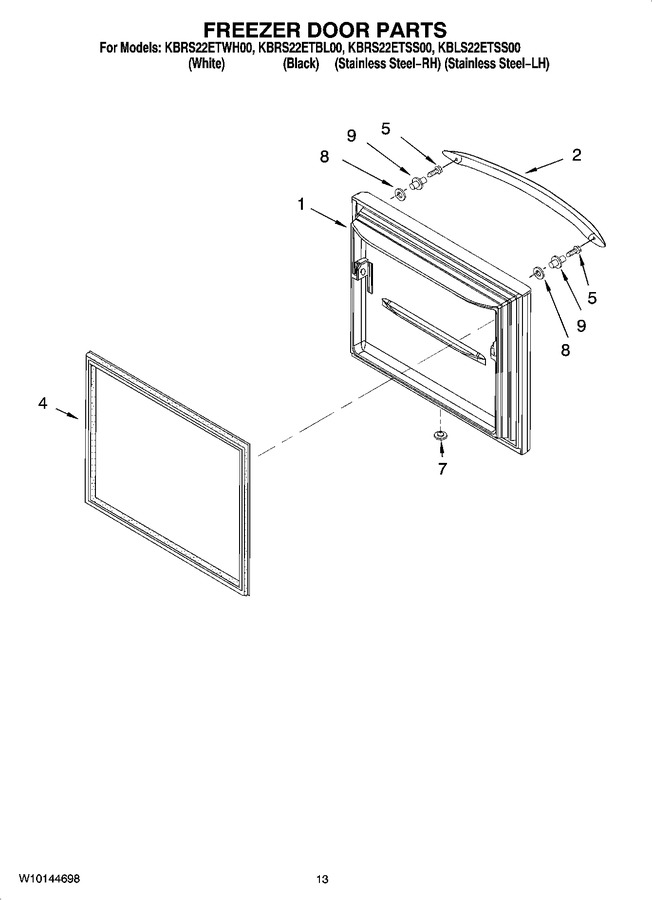

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 67004783 Freezer Door (w/ Insulation) (white) Appelez-nous -
1 67004781 Freezer Door (w/ Insulation) (black) Appelez-nous -
1 12658928SQ Freezer Door (w/ Insulation) (stainless Steel)   (Replaces: 67004784) Special Order $ 716.62

2 2319727W Handle, Door (white) Special Order $ 106.80

2 2319727B Handle, Door (black) Special Order $ 109.87

2 2319727S Handle, Door (stainless Steel) Special Order $ 133.96

4 W10443315 Gasket, Door (white)   (Replaces: 67003554) Special Order $ 235.53

4 WPW10436250 Gasket, Door (black)   (Replaces: 67003555) In-Stock Immediately $ 365.39

5 WP3387230 Screw   (Replaces: 67002935) In-Stock Immediately $ 8.54

7 10712401 Plug, Vent (2) (white) Special Order $ 7.79

7 67004838 Plug, Vent (2) (black) Special Order $ 11.21

8 8171212 Washer Appelez-nous -
9 67004790 Stud, Handle Special Order $ 9.66


    View Diagram in Separate Window     Print Icon   Print Part List
