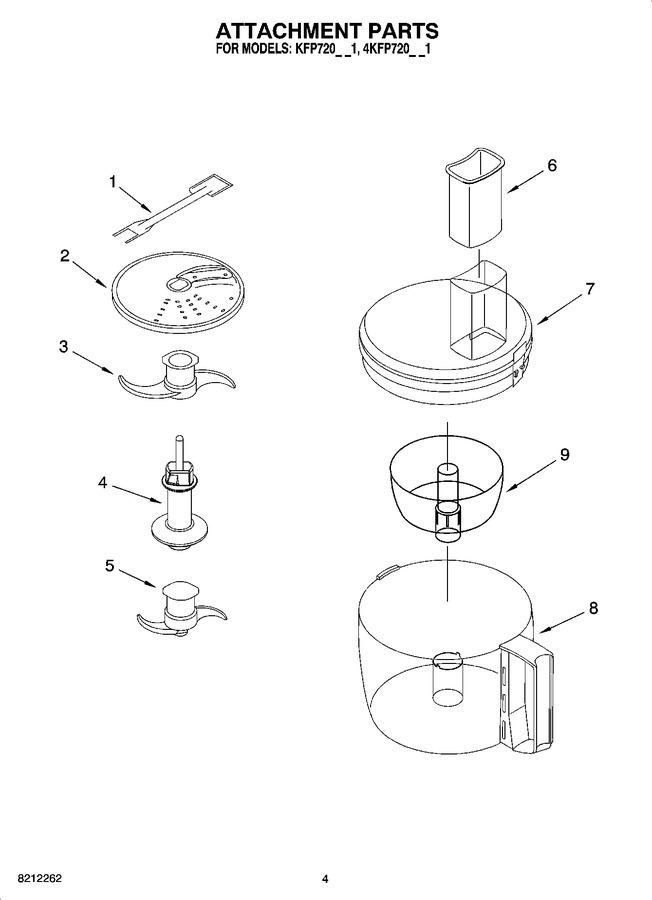

02 - Attachment Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8211760 | Spatula |
|
$ 24.64 | |||||
| 2 | 8211897 | Disc, Slicing 2mm & Grating 4mm |
|
$ 15.33 | |||||
| 3 | 8211902 | Mini Blade |
|
- | |||||
| 4 | 8211900 | Adapter, Shaft & Disc |
|
$ 9.98 | |||||
| 5 | 8211903 | Blade, Multi |
|
$ 31.41 | |||||
| 6 | 8211892 | Pusher, Food (white) |
|
$ 28.68 | |||||
| 6 | 8211893 | Pusher, Food (empire Red) |
|
$ 24.56 | |||||
| 6 | 8211894 | Pusher, Food (onyx Black) |
|
$ 30.48 | |||||
| 6 | 8211895 | Pusher, Food (cobalt Blue) |
|
- | |||||
| 6 | 8212315 | Pusher, Food (blue Willow) |
|
- | |||||
| 7 | 8211891 | Cover, Work Bowl |
|
- | |||||
| 8 | 8211906 | Bowl, Work (white) |
|
$ 22.49 | |||||
| 8 | 8211907 | Bowl, Work (empire Red) |
|
- | |||||
| 8 | 8211908 | Bowl, Work (onyx Black) |
|
$ 106.03 | |||||
| 8 | 8211890 | Bowl, Work (cobalt Blue) |
|
- | |||||
| 8 | 8212314 | Bowl, Work (blue Willow) |
|
$ 68.09 | |||||
| 9 | 8211905 | Bowl, Mini |
|
$ 82.90 | |||||
| 9 | 8211896 | Lid, Mini Bowl |
|
- |
