Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 13023875SQ Door, Refrigerator (stainless-rh) Appelez-nous -
1 13023878SQ Door, Refrigerator (stainless-lh) Appelez-nous -
2 WP3387230 Screw   (Replaces: 3196181) In-Stock Immediately $ 8.54

3 WP67003637 Door, Dairy   (Replaces: 12804701SP) In-Stock Immediately $ 82.67

4 WP67001279 Tray, Dairy   (Replaces: 12369502SP) In-Stock Immediately $ 88.01

5 WPW10371195 Bucket, Medium (3)   (Replaces: 12849114SP) In-Stock Immediately $ 87.37

7 WPW10450021 Gripper, Medium   (Replaces: 12567321SP) In-Stock Immediately $ 100.93

8 W10443314 Gasket, Door (apollo Grey)   (Replaces: W10180621) In-Stock Immediately $ 349.07

9 WPW10314517K Handle, Door (stainless)   (Replaces: W10119644N) Special Order $ 243.37

10 12690502 Retainer, Door Special Order $ 45.03

11 WP12028505AP Closure, Door (apollo Grey)   (Replaces: 12028505AP) In-Stock Immediately $ 61.46

12 W10046610 Nameplate (apollo Grey) Special Order $ 33.40

13 12691403 Mount, Handle Appelez-nous -
14 12643911SP Bucket, Short Special Order $ 43.60

15 WP98165 Screw   (Replaces: 12990504) Special Order $ 8.57

17 W11401472 Stop, Door (apollo Grey)   (Replaces: 10447114) In-Stock Immediately $ 23.56

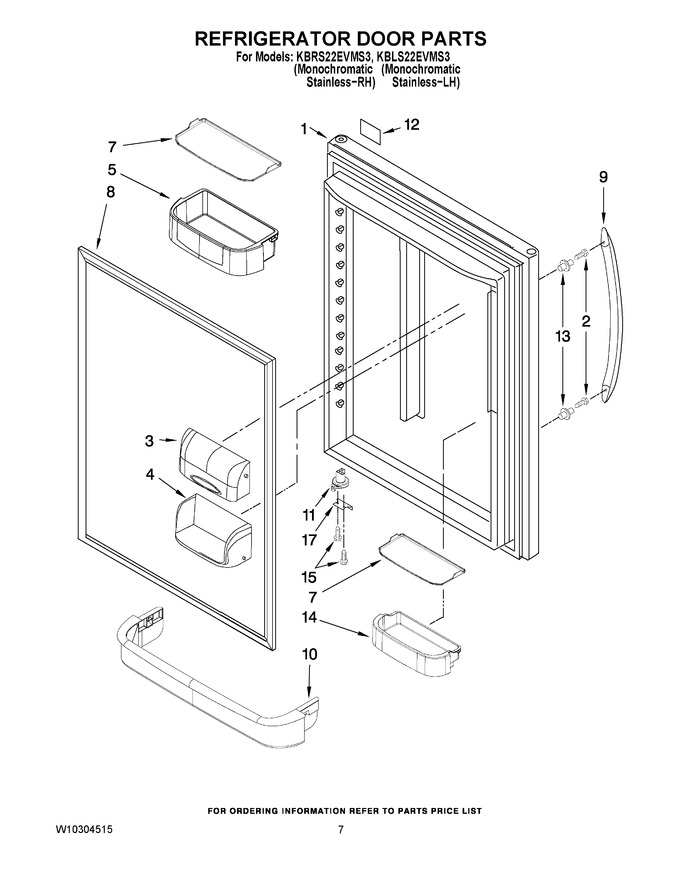

    View Diagram in Separate Window     Print Icon   Print Part List
