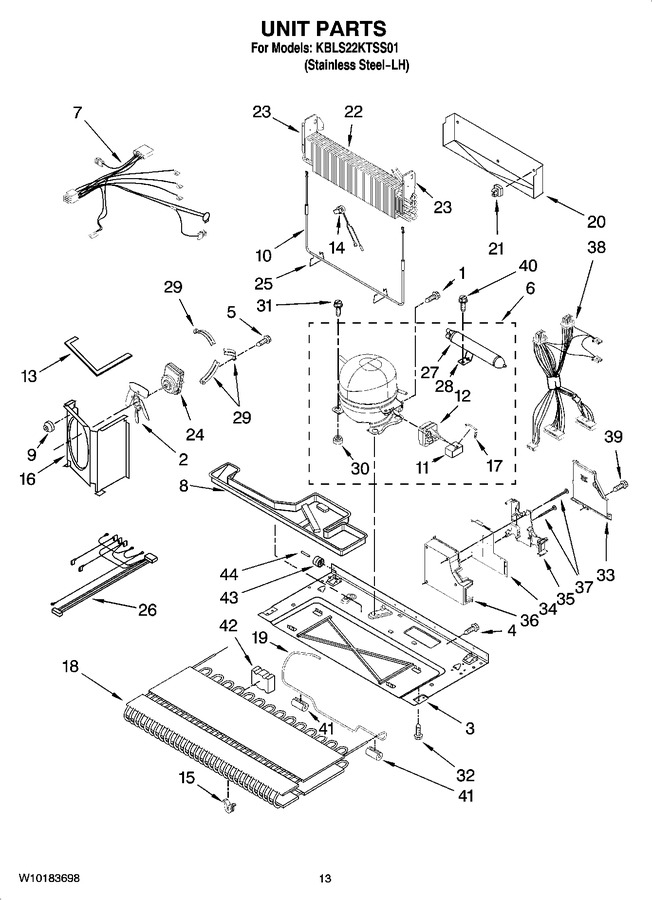

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	12992301		Screw   (Replaces: 67006433)				$ 7.32
2	W10156818		Blade, Fan   (Replaces: W10162928)			Immediately	$ 62.80
3	67005744		Basepan		Appelez-nous	-
4	67006425		Screw (2)			Immediately	$ 7.30
5	WP67004954		Screw   (Replaces: 67004954)				$ 8.18
6	W10130129		Compressor		Appelez-nous	-
7	W10119857		Harness, Evap. Heater				$ 182.26
8	67004713		Drain Pan		Appelez-nous	-
9	61004743		Grommet (3)				$ 5.51
10	WP67001794		Evaporator Heater   (Replaces: 67001794)				$ 168.19
11	WPW10662129		Capacitor   (Replaces: 2264017)			Immediately	$ 58.86
12	WPW10197426		Start Device   (Replaces: W10136414)				$ 162.06
13	WP854334		Gasket   (Replaces: 61003210)				$ 13.94
14	WPW10165425		Thermostat   (Replaces: W10165425)			Immediately	$ 76.53
15	WPW10137529		Grommet (4)   (Replaces: W10137529)				$ 8.76
16	W10158508		Shroud, Condenser		Appelez-nous	-
17	W10136415		Clip, Capacitor				$ 74.09
18	WP67006132		Condenser   (Replaces: 67006132)				$ 319.75
19	W10167036		Tube, Discharge		Appelez-nous	-
20	WPW10292802		Tray, Drip   (Replaces: 67001080)				$ 185.58
21	10623002		Clip, Evaporator				$ 12.11
22	12001919		Evaporator			Immediately	$ 410.85
23	67001083		Dam (left Side)		Appelez-nous	-
23	67001084		Dam (right Side)		Appelez-nous	-
24	W11613295		Motor, Fan   (Replaces: 67004432)			Immediately	$ 143.68
25	W11673433		Clip, Heater   (Replaces: 10428101)				$ 148.18
26	13060202		Harness, Unit Includes Cord				$ 96.21
27	WPB2150504		Drier (service)   (Replaces: B2150504)				$ 136.98
28	10547003		Clip, Drier		Appelez-nous	-
29	WP67004953		Bracket, Fan Motor   (Replaces: 67004953)				$ 72.27
30	WPW10169124		Grommet (4)   (Replaces: W10169124)				$ 7.55
31	12846902		Screw (2)   (Replaces: 67006432)				$ 13.64
32	12992101		Screw   (Replaces: 67006573)		Appelez-nous	-
33	67005421		Cover, Hv Box				$ 64.83
34	W10168780		Board, Hv		Appelez-nous	-
35	67005719		Spacer, Hv		Appelez-nous	-
36	67005718		Box, Hv		Appelez-nous	-
37	67006550		Screw		Appelez-nous	-
38	67005938		Harness, Hv		Appelez-nous	-
39	67006615		Screw (3)		Appelez-nous	-
40	WP33001882		Screw   (Replaces: 67006737)				$ 83.71
41	67005680		Grommer (2)				$ 22.10
42	67005491		Block, Condenser		Appelez-nous	-
43	WP67005149		Roller (2)   (Replaces: 67005149)			Immediately	$ 23.12
44	67006434		Axle, Roller (2)			Immediately	$ 7.90
	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 21.64
	542639		Cement, Alumilastic 1-1/4 Oz.)		Appelez-nous	-
	876764		Valve, Access(3/16``)			Immediately	$ 95.92
	978030		Valve, Access (3/4``)				$ 137.25
	978029		Valve Access (5/8``)				$ 93.85
	978028		Valve, Access (1/2)		Appelez-nous	-
	978026		Valve, Access (5/16``)			Immediately	$ 134.49
	2217192		Cleaner, (stainless Steel)		Appelez-nous	-
	D7824706Q		Complete Icemaker Assembly			Immediately	$ 167.35
	833938		Kit, Terminal Connector				$ 8.47
	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
	WP542638		Grease, Silicone (1/2 Oz.)   (Replaces: 542638)			Immediately	$ 12.78
	479502		Tape, Vinyl 3/4 X 108``)				$ 66.77
	212643		Sealer, Gum (4 Feet)			Immediately	$ 96.42
	799340		Paint, Bulk (1 Qt.) (black (uncut))		Appelez-nous	-
	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
	350942		Paint, Pressurized Spray (12 Oz.) (primer, White)				$ 94.14
	285006		Paint, Pressurized Spray (12 Oz.) (black)   (Replaces: 350939)				$ 59.89
	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 123.84
	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 182.65
	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 110.51
	1117510		Torx Key				$ 5.84
	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 40.12
