SELECT A DIAGRAM
01 - Cover
02 - Control Panel
04 - Door
06 - Tub
08 - Motor & Pump
10 - Frame

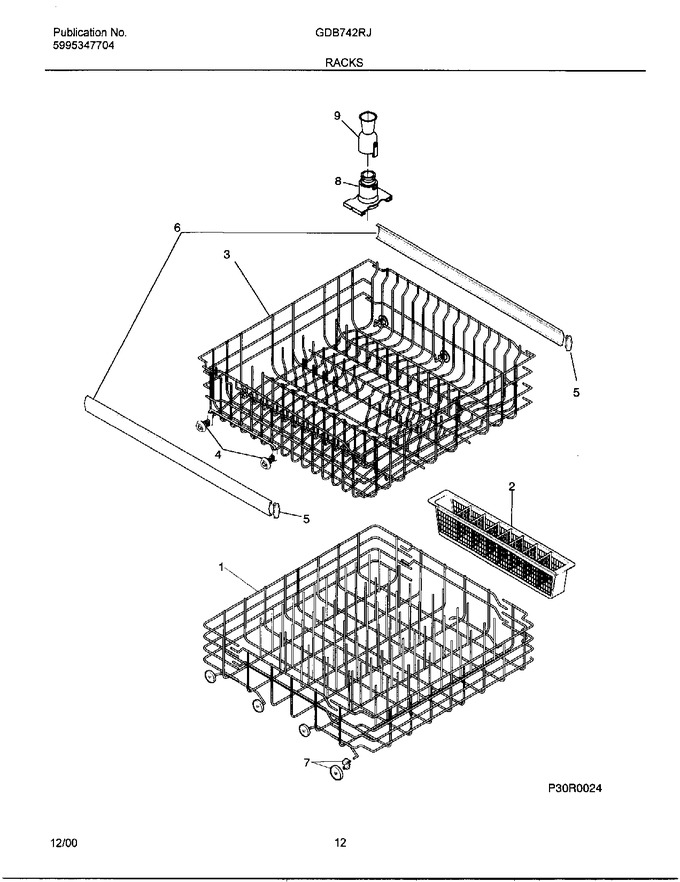

12 - Racks
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304535768 | Rack Assy,lower (Replaces: 154320903) |
|
Immediately | $ 180.68 | ||||
| 2 | 5304509753 | Basket,silverware ,white (Replaces: 154210401) |
|
Immediately | $ 40.97 | ||||
| 3 | 140229954072 | Rack Assy-upper (Replaces: 154321107) |
|
Immediately | $ 161.25 | ||||
| 4 | 154522902 | Wheel & Bushing Assy,upper Rack (Replaces: 5304407064) |
|
$ 43.93 | |||||
| 5 | 5300809927 | Cap,slide ,(4) |
|
Immediately | $ 4.10 | ||||
| 6 | 154597801 | Slide,rack ,(2) (Replaces: 154232701) |
|
Immediately | $ 10.40 | ||||
| 7 | 5304532229 | Wheel & Bracket Assy,lower Rack (Replaces: 154174501) |
|
Immediately | $ 14.17 | ||||
| 8 | 154728001 | Base-funnel (Replaces: 154304001) |
|
$ 30.03 | |||||
| 9 | 154251801 | Funnel |
|
$ 49.88 |
