SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Freezer Liner Parts

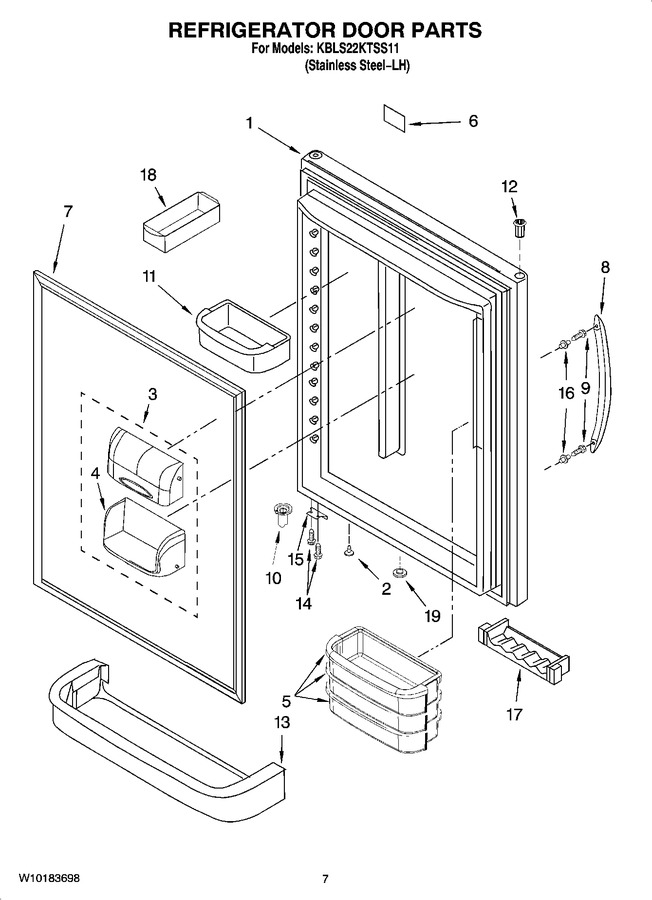

04 - Refrigerator Door Parts


05 - Freezer Door Parts


06 - Shelf Parts


07 - Unit Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10170545		Refrigerator Door (stainless Steel-lh)		Appelez-nous	-
2	67004838		Plug, Vent (black)				$ 11.21
3	WP12744905		Door, Compartment   (Replaces: 67003819)				$ 113.99
4	WP67001279		Tray, Dairy   (Replaces: 67001279)			Immediately	$ 88.01
5	WPW10371195		Bin, Shelf (3) (medium)   (Replaces: 67005672)			Immediately	$ 87.37
6	W10146610		Nameplate (grey)		Appelez-nous	-
7	WPW10436248		Gasket, Door Magnetic (black)   (Replaces: W10131327)				$ 335.15
8	2319727S		Handle, Door (stainless Steel)				$ 133.96
9	WP3387230		Screw   (Replaces: 67002935)			Immediately	$ 8.54
10	WP67003639		Closure, Door (black)   (Replaces: 67003639)				$ 90.32
11	67005724		Bin, Shelf (1) (small)		Appelez-nous	-
12	67004978		Bushing (black)				$ 22.10
13	67001748		Retainer		Appelez-nous	-
14	WP98165		Screw (2)   (Replaces: 67006287)				$ 8.57
15	W11708403		Stop, Door (black)   (Replaces: 67003780)			Immediately	$ 14.75
16	WP67006113		Mount, Handle   (Replaces: 67006113)			Immediately	$ 12.56
17	WP67005626		Caddy, Can   (Replaces: 67005626)				$ 81.49
18	W10136387A		Bin, Egg   (Replaces: W10136387)				$ 19.54
19	67004838		Plug, Button (black)				$ 11.21

    View Diagram in Separate Window       Print Part List
