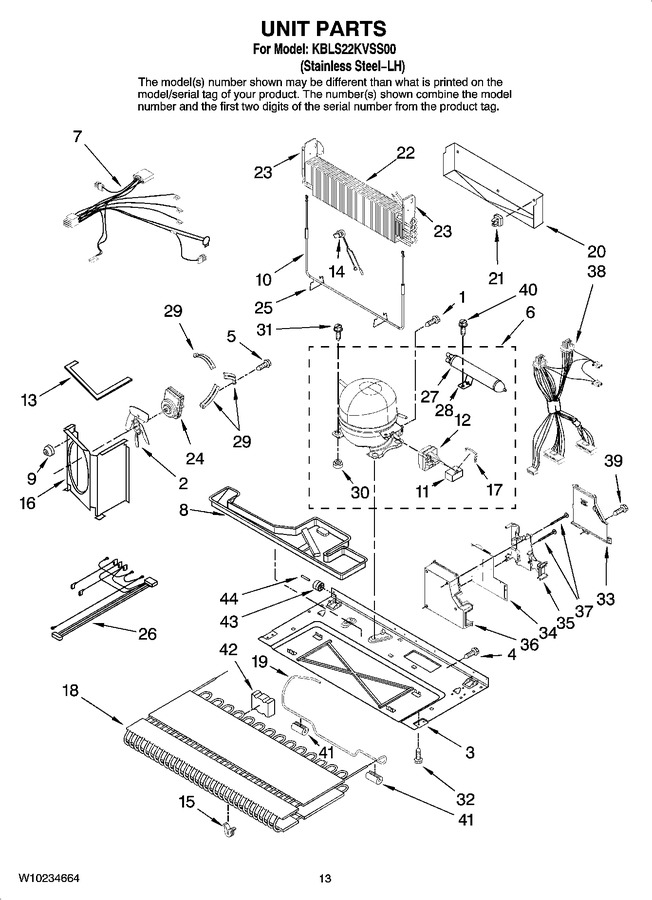

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 12992301 | Screw (Replaces: 67006433) |
|
$ 7.32 | |||||
| 2 | W10156818 | Blade, Fan |
|
Immediately | $ 62.11 | ||||
| 3 | 12591404 | Basepan |
|
- | |||||
| 4 | 67006425 | Screw |
|
Immediately | $ 7.30 | ||||
| 5 | WP67004954 | Screw (Replaces: 67004954) |
|
$ 8.18 | |||||
| 6 | W10130129 | Compressor |
|
- | |||||
| 7 | W10171661 | Harness, Evap Heater |
|
$ 35.79 | |||||
| 8 | 67004713 | Drain Pan |
|
- | |||||
| 9 | 61004743 | Grommet (3) |
|
$ 5.51 | |||||
| 10 | WP67001794 | Heater, Defrost (Replaces: 67001794) |
|
$ 168.19 | |||||
| 11 | WPW10662129 | Capacitor (Replaces: 2264017) |
|
Immediately | $ 58.86 | ||||
| 12 | WPW10197426 | Overload/relay (Replaces: W10136414) |
|
$ 162.06 | |||||
| 13 | WP854334 | Gasket (Replaces: 61003210) |
|
$ 13.94 | |||||
| 14 | WPW10165425 | Thermostat, Defrost (Replaces: W10165425) |
|
Immediately | $ 74.57 | ||||
| 15 | WPW10137529 | Grommet (4) (Replaces: W10137529) |
|
$ 8.76 | |||||
| 16 | 12575309 | Shroud, Condenser |
|
$ 185.38 | |||||
| 17 | W10136415 | Clip, Capacitor |
|
$ 74.09 | |||||
| 18 | WPW10346420 | Condenser (Replaces: W10135027) |
|
$ 294.36 | |||||
| 19 | W10183706 | Tube, Discharge |
|
- | |||||
| 20 | W11547653 | Tray, Drip (Replaces: 67002490) |
|
$ 57.02 | |||||
| 21 | 10623002 | Clip, Evaporator |
|
$ 12.11 | |||||
| 22 | 12001919 | Evaporator (Replaces: 67003719) |
|
Immediately | $ 410.85 | ||||
| 23 | 67001084 | Dam (right Side) |
|
- | |||||
| 23 | 67001083 | Dam (left Side) |
|
- | |||||
| 24 | W11613295 | Motor, Fan (Replaces: 67004432) |
|
Immediately | $ 143.68 | ||||
| 25 | W11673433 | Clip, Heater (Replaces: 10428101) |
|
$ 148.18 | |||||
| 26 | 13060202 | Harness, Unit With Power Cord |
|
$ 96.21 | |||||
| 27 | WPW10143759 | Drier (Replaces: W10143759) |
|
Immediately | $ 30.78 | ||||
| 28 | 10547003 | Clip, Drier |
|
- | |||||
| 29 | WP67004953 | Bracket, Condenser (Replaces: 67004953) |
|
$ 72.27 | |||||
| 30 | WPW10169124 | Grommet (Replaces: W10169124) |
|
$ 7.55 | |||||
| 31 | 12846902 | Screw (3) (Replaces: 67006432) |
|
$ 13.64 | |||||
| 32 | 12992101 | Screw (Replaces: 67006573) |
|
- | |||||
| 33 | 67005421 | Cover, Hv |
|
$ 64.83 | |||||
| 34 | 12782036SP | Board, Hv |
|
$ 305.21 | |||||
| 35 | 67005418 | Spacer, Hv |
|
- | |||||
| 36 | 67004969 | Box, Hv |
|
- | |||||
| 37 | 67006550 | Screw |
|
- | |||||
| 38 | 67005938 | Harness, Hv |
|
- | |||||
| 39 | 67006615 | Screw (3) |
|
- | |||||
| 40 | WP33001882 | Screw (Replaces: 67006737) |
|
$ 83.71 | |||||
| 41 | 67005680 | Grommet (2) |
|
$ 22.10 | |||||
| 42 | 67005491 | Block, Condenser |
|
- | |||||
| 43 | WP67005149 | Roller (2) (Replaces: 67005149) |
|
Immediately | $ 23.12 | ||||
| 44 | 67006434 | Axle, Roller (2) |
|
Immediately | $ 7.90 | ||||
| 1117510 | Torx Key |
|
$ 5.84 | ||||||
| 542639 | Cement, Alumilastic 1-1/4 Oz.) |
|
- | ||||||
| SF5538 | Valve, Access (3/8``) (Replaces: 978027) |
|
$ 21.64 | ||||||
| 978028 | Valve, Access (1/2) |
|
- | ||||||
| 978029 | Valve Access (5/8``) |
|
$ 93.85 | ||||||
| 978030 | Valve, Access (3/4``) |
|
$ 137.25 | ||||||
| 876764 | Valve, Access(3/16``) |
|
Immediately | $ 95.92 | |||||
| 350942 | Paint, Pressurized Spray (12 Oz.) (primer, White) |
|
$ 94.14 | ||||||
| 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 40.12 | |||||
| 285006 | Paint, Pressurized Spray (12 Oz.) (black) (Replaces: 350939) |
|
$ 59.89 | ||||||
| 4392900 | Paint, Bulk (1 Qt.) (biscuit) (uncut) |
|
- | ||||||
| 212643 | Sealer, Gum (4 Feet) |
|
Immediately | $ 82.13 | |||||
| WP542638 | Grease, Silicone (1/2 Oz.) (Replaces: 542638) |
|
Immediately | $ 12.78 | |||||
| 479502 | Tape, Vinyl 3/4 X 108``) |
|
$ 66.77 | ||||||
| 799833 | Kit, Evaporator Repair (aluminum Epoxy) |
|
- | ||||||
| 833938 | Kit, Terminal Connector |
|
$ 8.47 | ||||||
| 799344 | Paint, Bulk (1 Qt.) (black) (uncut) |
|
$ 237.46 | ||||||
| 2217192 | Cleaner, (stainless Steel) |
|
- | ||||||
| WP503695 | Cork, Sealer 1/4 Pound) (Replaces: 503695) |
|
$ 123.84 | ||||||
| WP505587 | Sealer, Mastic (1 Qt.). (Replaces: 505587) |
|
Immediately | $ 182.65 | |||||
| 4392901 | Paint, Pressurized Spray (12oz.) (biscuit) |
|
- | ||||||
| 72032 | Paint, Touch-up 1/2 Oz. (black) |
|
Immediately | $ 18.69 | |||||
| 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 12.30 | |||||
| WP978025 | Valve, Access (1/4``) (Replaces: 978025) |
|
Immediately | $ 110.51 | |||||
| 978026 | Valve, Access (5/16``) |
|
Immediately | $ 134.49 |
