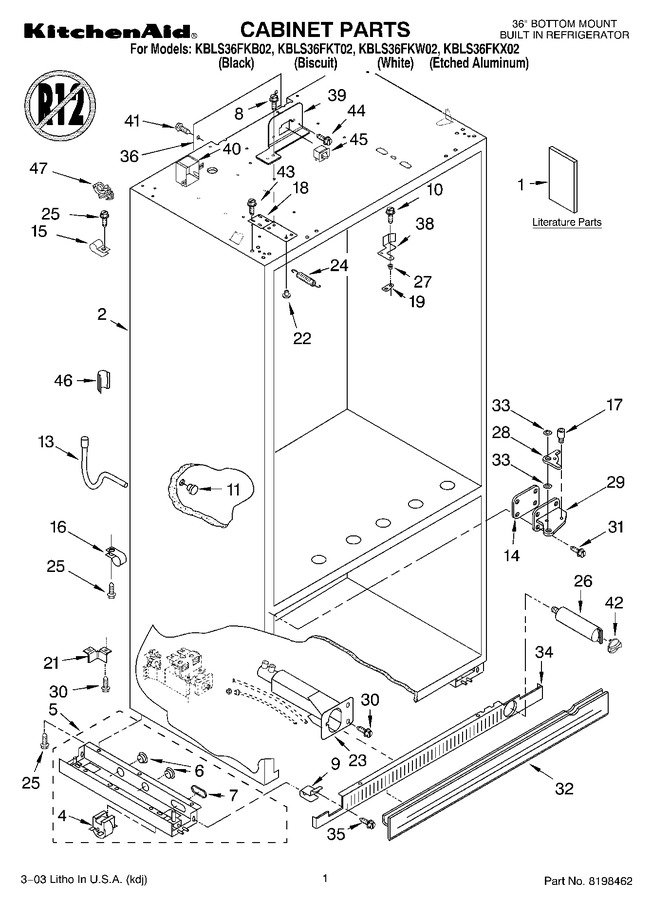

01 - Cabinet Parts


02 - Cabinet And Breaker Trim Parts


03 - Top Grille And Unit Cover Parts


04 - Liner Parts


05 - Refrigerator Shelf Parts


06 - Freezer Door And Basket Parts


07 - Refrigerator Door Parts


08 - Upper Unit Parts


09 - Lower Unit And Tube Parts


10 - Icemaker Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT2254723		Literature Parts (service & Wiring Sheet)		Appelez-nous	-
1	LIT2257388		Literature Parts (use & Care Guide)		Appelez-nous	-
1	LIT2259219		Literature Parts (energy Label)		Appelez-nous	-
1	LIT628370		Modular Icemaker Service Sheet		Appelez-nous	-
1	LIT2266877		Literature Parts (installation Instructions)		Appelez-nous	-
2	N/A		Cabinet (not A Serviceable Part)		Appelez-nous	-
4	WPW10138054		Roller, Front & Rear (4)   (Replaces: 1112023)				$ 43.18
5	W10860448		Support, Leveler Assembly (refrigerator Side)   (Replaces: 2004506)			Immediately	$ 364.76
5	W10860229		Support, Leveler Assembly (freezer Side)   (Replaces: 2004505)				$ 363.65
6	2005006		Grommet, Wiring		Appelez-nous	-
7	2005007		Grommet, Flexible		Appelez-nous	-
8	WP489399		Screw   (Replaces: 489399)				$ 6.95
9	2006442		Mounting Bracket, Grill		Appelez-nous	-
10	2005921		Screw				$ 7.65
11	1112849		Cap, Grommet		Appelez-nous	-
13	2204516		Tube, Drain Condensate		Appelez-nous	-
14	2207470		Shim, Door Hinge			Immediately	$ 49.78
15	W10833902		Clip, Tube   (Replaces: 2221070)				$ 10.99
16	488946		Tube, Clamp				$ 20.45
17	2001295		Screw, Door Stop				$ 42.18
18	2257644		Hinge, Door Refrigerator Top				$ 169.50
19	2005783		Cam-closer, Door				$ 26.20
21	2006617		Bracket, Support		Appelez-nous	-
22	2002903		Bushing				$ 34.41
23	WP2209022		Housing, Water Filter   (Replaces: 2209022)			Immediately	$ 234.82
24	WP2004517		Spring, Door Closure   (Replaces: 2004517)			Immediately	$ 90.89
25	W11624204		Screw   (Replaces: 486194)				$ 14.02
26	EDR5RXD1B		Filter, Water   (Replaces: 2203221)			Immediately	$ 49.99
27	WP2316859		Bushing-arm, Extension   (Replaces: 2006960)			Immediately	$ 51.62
28	W10188434		Gap, Cover (bottom)   (Replaces: 2006388)				$ 64.71
29	2005101		Hinge, Bottom Refrigerator				$ 93.18
30	WP489464		Screw 8-18 X 1/2   (Replaces: 489464)			Immediately	$ 7.83
31	W11474472		Screw   (Replaces: 489282)			Immediately	$ 8.02
32	2209024T		Skirt, Grille- Bottom (biscuit)		Appelez-nous	-
32	2209024W		Skirt, Grille- Bottom (white)		Appelez-nous	-
32	WP2209024B		Skirt-grille, Bottom (black)   (Replaces: 2209024B)				$ 161.78
33	WP2006346		Washer   (Replaces: 2006346)			Immediately	$ 11.20
34	2215889B		Grille Base, Front (black)		Appelez-nous	-
34	2215889T		Grille Base, Front (biscuit)		Appelez-nous	-
34	2215889W		Grille Base, Front (white)		Appelez-nous	-
35	WP489069		Screw   (Replaces: 1157158)			Immediately	$ 7.86
36	2209133		Cover, Rear		Appelez-nous	-
38	WPW10121046		Arm, Extension   (Replaces: 2221094)			Immediately	$ 79.72
39	2221096		Bracket, Switch				$ 93.20
40	2215938		Cover, Switch				$ 90.27
41	WP1163283		Screw   (Replaces: 1163283)				$ 7.19
42	WP2186494B		Cap, Water Filter (black)   (Replaces: 2186494B)			Immediately	$ 53.20
42	WP2186494W		Cap, Water Filter (white)   (Replaces: 2186494W)				$ 55.72
42	WP2186494T		Cap, Water Filter (biscuit)   (Replaces: 2186494T)				$ 11.88
43	W11721628		Screw (4)   (Replaces: 8533913)			Immediately	$ 14.08
44	WP965173		Screw,8-18 X 3/8   (Replaces: 487415)			Immediately	$ 10.72
45	W11384469		Switch, Rocker Arm   (Replaces: 1118894)			Immediately	$ 37.23
46	9791833		Clip		Appelez-nous	-
47	2207578		Clip, Snap-in (2)		Appelez-nous	-
