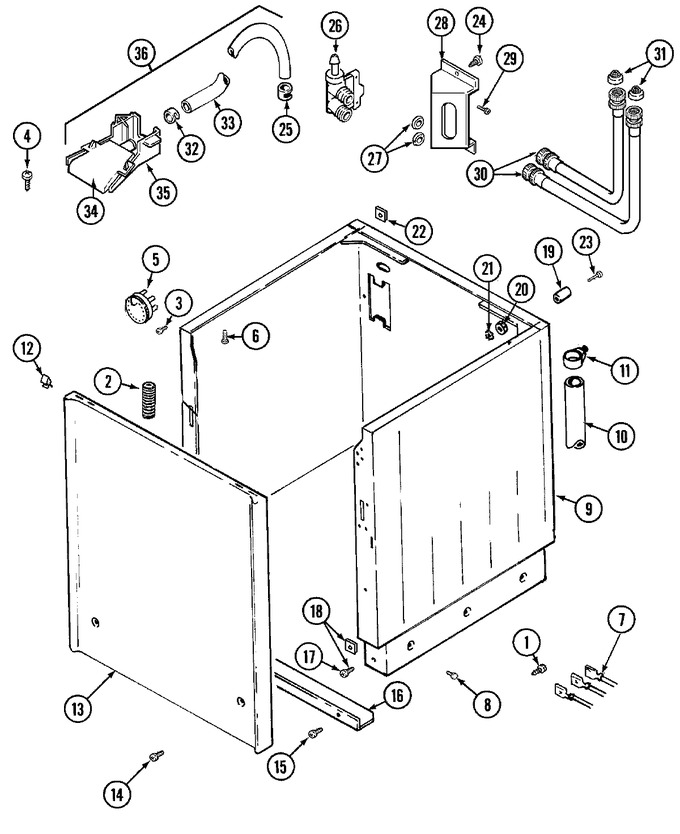

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP3177991 | Screw (Replaces: Y251119) | 10 |
|
Immediately | $ 7.55 | |||
| 2 | Y200832 | Capacitor | 10 |
|
$ 66.37 | ||||
| 2 | 211149 | Clip, Capacitor | 10 |
|
$ 6.23 | ||||
| 3 | WP210720 | Rivet (Replaces: 210720) | 10 |
|
$ 14.16 | ||||
| 4 | 215537 | Screw | 10 |
|
- | ||||
| 5 | 22004231 | Pressure Switch, Three Level | 17 |
|
- | ||||
| 5 | 207787 | Switch, Water Level (pressure) | 10 |
|
- | ||||
| 5 | 208783 | Wire Jumper | 10 |
|
- | ||||
| 6 | 214354 | Screw | 10 |
|
- | ||||
| 7 | 22001585 | Harness, Wire (lower) | 10 |
|
- | ||||
| 8 | 213007 | Screw, Cabinet | 10 |
|
$ 12.82 | ||||
| 9 | 22002133 | Cabinet (wht) | 11 |
|
- | ||||
| 10 | WP22003410 | Hose, Drain (Replaces: 22002700) | 10 |
|
Immediately | $ 52.99 | |||
| 10 | 22002701 | Retainer, Drain Hose | 10 |
|
- | ||||
| 11 | WP3367052 | Clamp, Hose (Replaces: 202574) | 10 |
|
$ 9.10 | ||||
| 12 | 215711 | Fastener, Spring | 10 |
|
- | ||||
| 13 | 207205 | Panel, Front (wht) | 10 |
|
- | ||||
| 14 | 22001898 | Screw (wht) | 10 |
|
- | ||||
| 15 | WP90767 | Screw (Replaces: 211294) | 10 |
|
Immediately | $ 8.25 | |||
| 16 | 213846 | Guard, Belt | 10 |
|
- | ||||
| 17 | WP27001200 | Screw,cbnt.to Frnt Of Base--na (Replaces: 213122) | 10 |
|
$ 8.06 | ||||
| 18 | 204439 | Screw & Fstner Assy(frt.panel) | 10 |
|
$ 8.80 | ||||
| 19 | Y215513 | Spacer Circuit Board | 10 |
|
- | ||||
| 20 | 310557 | Washer | 10 |
|
- | ||||
| 21 | WP486255 | Hex. Nut, No.8-32 (Replaces: Y052655) | 10 |
|
$ 6.47 | ||||
| 22 | 22001009 | Clip, Spring | 10 |
|
- | ||||
| 23 | WP67006908 | Screw (Replaces: 215277) | 10 |
|
Immediately | $ 8.78 | |||
| 24 | WP90767 | Screw----na (Replaces: 22001069) | 10 |
|
Immediately | $ 8.25 | |||
| 25 | WP596669 | Clamp,hose-injec.hose To Valve (Replaces: 216169) | 10 |
|
Immediately | $ 8.82 | |||
| 26 | WP22002360 | Valve, Water (Replaces: 22002360) | 10 |
|
Immediately | $ 152.72 | |||
| 27 | Y013783 | Gasket, Inlet Hose | 10 |
|
$ 18.72 | ||||
| 28 | 22002361 | Bracket, Valve | 10 |
|
- | ||||
| 29 | 22002372 | Screw | 10 |
|
- | ||||
| 30 | WP76314 | Inlet Hose Assy. (Replaces: 200672) | 10 |
|
$ 45.26 | ||||
| 31 | 12001413 | Strainer & Washer Kit | 10 |
|
$ 2.75 | ||||
| 32 | WP489503 | Clamp - 15/16`` (Replaces: 205161) | 10 |
|
Immediately | $ 11.29 | |||
| 33 | 22001191 | Hose, Injector (stack) | 10 |
|
- | ||||
| 34 | 22001187 | Injector (upr) | 10 |
|
$ 35.13 | ||||
| 35 | WP22001186 | Injector (lwr) (Replaces: 22001186) | 10 |
|
Immediately | $ 88.29 | |||
| 36 | 22001175 | Water Injector Assembly | 10 |
|
- | ||||
| 37 | 22001192 | Glide | 10 |
|
- |
