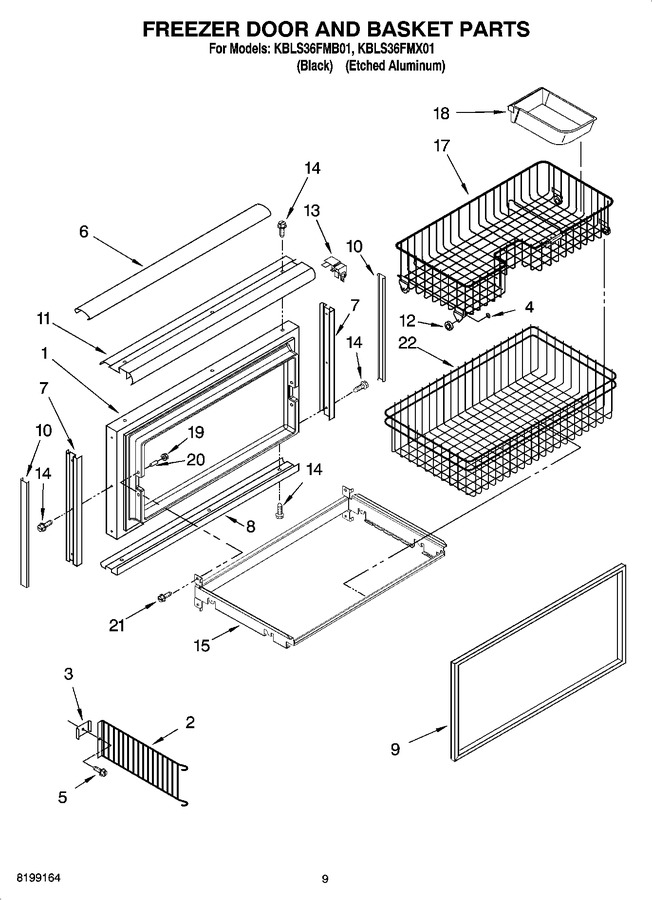

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2300085		Freezer Door Panel (includes Item 9)		Appelez-nous	-
2	2204525		Divider, Basket		Appelez-nous	-
3	2207429		Clamp, Divider		Appelez-nous	-
4	2207415		Nut, Crimp				$ 14.04
5	3190699		Screw		Appelez-nous	-
6	2006327		Trim Cover, Handle (etched Aluminum)		Appelez-nous	-
6	2006331		Trim Cover, Handle (black)		Appelez-nous	-
7	2005868		Door Trim, Side (etched Aluminum)		Appelez-nous	-
7	2006304		Door Trim, Side (black)		Appelez-nous	-
8	2006278		Door Trim, Bottom (etched Aluminum)		Appelez-nous	-
8	2006282		Door Trim, Bottom (black)		Appelez-nous	-
9	2302710		Door Gasket, Magnetic   (Replaces: 2300185)				$ 307.89
10	2006326		Trim Cover, Side (black)		Appelez-nous	-
10	2006322		Trim Cover, Side (etched Aluminum)		Appelez-nous	-
11	2006292		Handle, Door (black)		Appelez-nous	-
11	2005188		Handle, Door (etched Aluminum)		Appelez-nous	-
12	W11214482		Roller   (Replaces: 2204542)				$ 101.03
13	2207457		Corner Trim (chrome)				$ 57.12
13	2006273		Corner Trim (black)		Appelez-nous	-
14	WP8281250		Screw 8-15 X 1/2 (stainless Steel)   (Replaces: 8281250)				$ 11.42
14	W10851443		Screw 8-15 X 1/2 (black)   (Replaces: 8281252)			Immediately	$ 8.13
15	2257426		Bracket Assembly, Freezer Basket		Appelez-nous	-
17	2257442		Basket, Upper		Appelez-nous	-
18	2174124		Pan, Ice Cube		Appelez-nous	-
19	WP2207454		Nut, Hex   (Replaces: 2207454)				$ 11.38
20	2207471		Bushing		Appelez-nous	-
21	3400507		Screw		Appelez-nous	-
22	2257331		Basket, Freezer Lower		Appelez-nous	-
