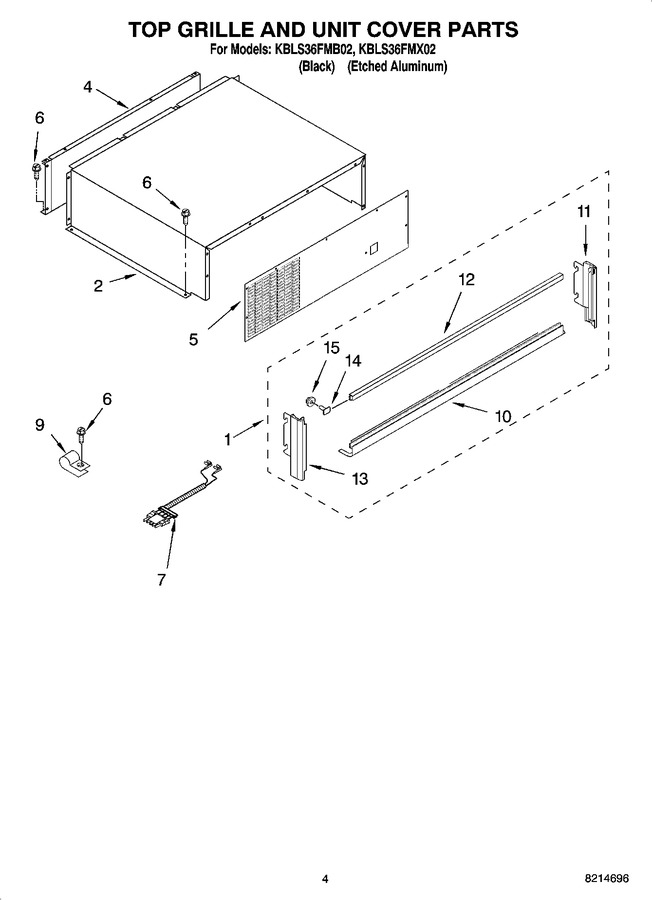

03 - Top Grille And Unit Cover Parts


04 - Liner Parts


05 - Refrigerator Shelf Parts


06 - Freezer Door And Basket Parts


07 - Refrigerator Door Parts


08 - Upper Unit Parts


09 - Lower Unit And Tube Parts


10 - Icemaker Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2259425B		Top Grille Assembly (black)		Appelez-nous	-
1	2259425X		Top Grille Assembly (etched Aluminum)		Appelez-nous	-
2	2259320		Cover, Unit		Appelez-nous	-
4	2256466		Back Panel				$ 327.22
5	2302974		Front, Unit Cover		Appelez-nous	-
6	WP965173		Screw   (Replaces: 487415)			Immediately	$ 11.87
7	2187423		Wire Assembly		Appelez-nous	-
9	489348		Clamp		Appelez-nous	-
10	2259438X		Trim-grille, Bottom (etched Aluminum)		Appelez-nous	-
10	2259438B		Trim-grille, Bottom (black)		Appelez-nous	-
11	2259420B		Trim-grille, Right Side (black)		Appelez-nous	-
11	2259420X		Trim-grille, Right Side (etched Aluminum)		Appelez-nous	-
12	2259440X		Trim-grille, Top (etched Aluminum)		Appelez-nous	-
12	2259440B		Trim-grille, Top (black)		Appelez-nous	-
13	2259421X		Trim-grille, Left Side (etched Aluminum)		Appelez-nous	-
13	2259421B		Trim-grille, Left Side (black)		Appelez-nous	-
14	2003347		Screw				$ 14.99
15	WP488130		Nut   (Replaces: 1161548)				$ 7.32
