SELECT A DIAGRAM

01 - Cabinet Parts


02 - Cabinet And Breaker Trim Parts


03 - Top Grille And Unit Cover Parts


04 - Liner Parts


05 - Refrigerator Shelf Parts


06 - Freezer Door And Basket Parts


07 - Refrigerator Door Parts


08 - Upper Unit Parts


09 - Lower Unit And Tube Parts


10 - Icemaker Parts

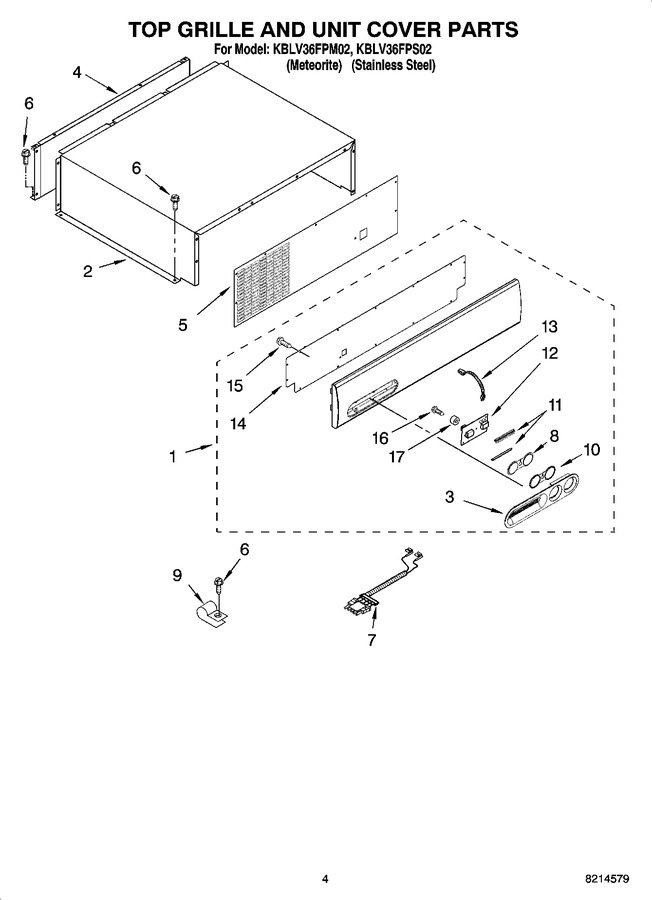

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2307892M		Top Grille Assembly (meteorite)		Appelez-nous	-
1	2307892S		Top Grille Assembly (stainless Steel)		Appelez-nous	-
2	2259320		Cover, Unit		Appelez-nous	-
3	2252304M		Insert, Temp-guage (meteorite)		Appelez-nous	-
3	2252304S		Insert, Temp-guage (stainless Steel)		Appelez-nous	-
4	2256466		Back Panel				$ 327.22
5	2302974		Front, Unit Cover		Appelez-nous	-
6	WP965173		Screw   (Replaces: 487415)			Immediately	$ 11.87
7	2187423		Wire Assembly		Appelez-nous	-
8	2252307		Cover, Temp-guage		Appelez-nous	-
9	489348		Clamp		Appelez-nous	-
10	2252308		Bezel, Temp-guage		Appelez-nous	-
11	2300126B		Edging Panel		Appelez-nous	-
12	2252306		Board, Control				$ 337.89
13	2187682		Jumper Harness, Temp-display		Appelez-nous	-
14	2307897		Rear Panel, Top Grille		Appelez-nous	-
15	WP489069		Screw   (Replaces: 1157158)			Immediately	$ 8.40
16	487522		Screw		Appelez-nous	-
17	2005433		Spacer				$ 23.33
