SELECT A DIAGRAM

01 - Oven, Literature


02 - Control Panel


03 - Microwave Compartment


04 - Cabinet And Stirrer


05 - Top Venting


06 - Microwave Door, Optional

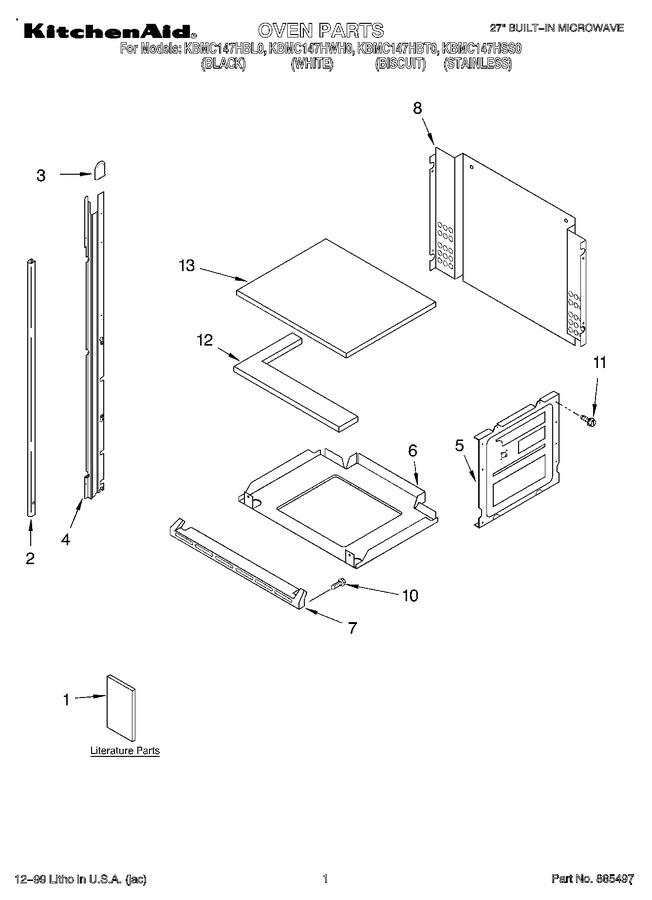

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT4452615		Literature Parts (installation Instructions)		Appelez-nous	-
1	LIT4452614		Literature Parts (use & Care Guide)		Appelez-nous	-
1	LIT4450786		Literature Parts (cook Guide Label)		Appelez-nous	-
1	LIT4451052		Literature Parts (guide-easy Use M/w)		Appelez-nous	-
1	LIT4452613		Literature Parts (tech Sheet)		Appelez-nous	-
1	LIT4449264		Literature Parts (easy Set Guide)		Appelez-nous	-
1	LIT3191638		Safer Cooking Tips		Appelez-nous	-
2	4452625		Trim, Side (lh Black)		Appelez-nous	-
2	4452627		Trim, Side (lh White)		Appelez-nous	-
2	4452972		Trim, Side (lh Biscuit)		Appelez-nous	-
2	4452557		Trim, Side (lh Stainless)		Appelez-nous	-
2	4452556		Trim, Side (rh Stainless)		Appelez-nous	-
2	4452971		Trim, Side (rh Biscuit)		Appelez-nous	-
2	4452626		Trim, Side (rh White)		Appelez-nous	-
2	4452624		Trim, Side (rh Black)		Appelez-nous	-
3	4451605		Cap, Spacer				$ 38.55
4	4452550		Rail, Side (left Side)		Appelez-nous	-
4	4452549		Rail, Side (right Side)		Appelez-nous	-
5	4452559		Side, Chassis (r.h. & L.h.)		Appelez-nous	-
6	4452540		Base, Chassis		Appelez-nous	-
7	4452568		Trim, Bottom (stainless)		Appelez-nous	-
7	4452975		Trim, Bottom (biscuit)		Appelez-nous	-
7	4452622		Trim, Bottom (white)		Appelez-nous	-
7	4452620		Trim, Bottom (black)		Appelez-nous	-
8	4452553		Chassis, Back		Appelez-nous	-
10	WP3400832		Screw   (Replaces: 3400832)			Immediately	$ 8.18
11	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
12	4452492		Insulation-grill		Appelez-nous	-
13	4452491		Insulation-top		Appelez-nous	-
