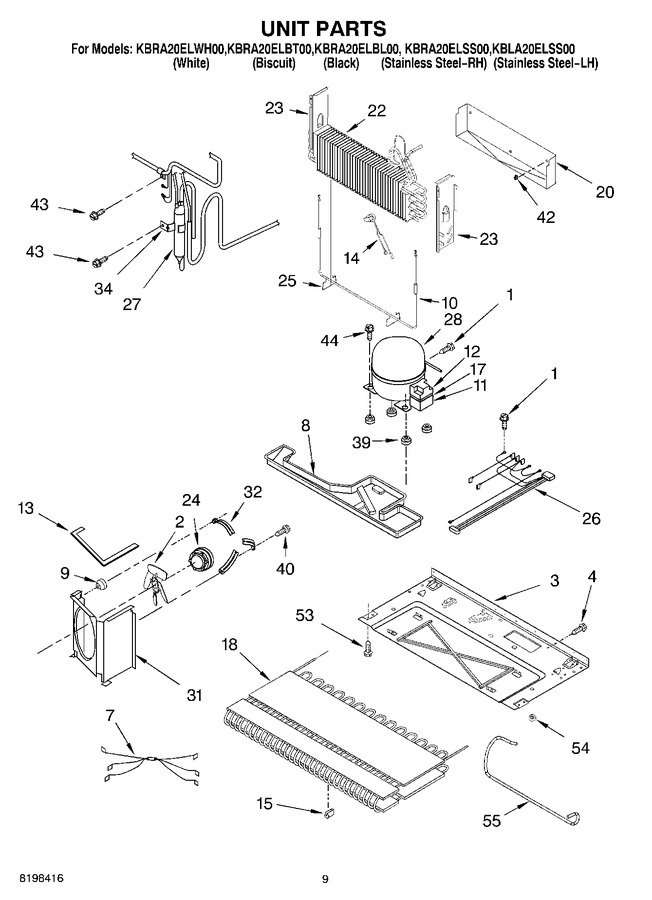

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 12992301 | Screw (Replaces: 4343865) |
|
$ 7.32 | |||||
| 2 | WP12587601 | Blade, Fan (Replaces: 8170909) |
|
$ 133.00 | |||||
| 3 | 8171087 | Base |
|
- | |||||
| 4 | 4344167 | Screw |
|
- | |||||
| 7 | 8170903 | Harness, Evap. Heater |
|
- | |||||
| 8 | 8171089 | Drain Pan |
|
- | |||||
| 9 | 8170908 | Grommet (3) |
|
- | |||||
| 10 | WP67002493 | Evaporator Heater (Replaces: 8171085) |
|
Immediately | $ 153.46 | ||||
| 11 | 8170724 | Strap |
|
$ 7.98 | |||||
| 12 | WP12555902 | Overload (includes Relay) (Replaces: 8170706) |
|
Immediately | $ 141.10 | ||||
| 13 | WP854334 | Gasket (Replaces: 8170914) |
|
$ 13.94 | |||||
| 14 | 12001937 | Bi-metal (Replaces: 8170904) |
|
Immediately | $ 111.60 | ||||
| 15 | 67005680 | Grommet (7) (Replaces: 8170912) |
|
$ 22.10 | |||||
| 17 | WP65889-4 | Capacitor (Replaces: 8170462) |
|
Immediately | $ 69.00 | ||||
| 18 | WP67006131 | Condenser (Replaces: 8171091) |
|
$ 385.08 | |||||
| 20 | 8171081 | Tray, Drip |
|
- | |||||
| 22 | 12002041 | Evaporator (Replaces: 8171084) |
|
$ 366.06 | |||||
| 23 | 8171154 | Dam (left Side) |
|
- | |||||
| 23 | 8171155 | Dam (right Side) |
|
- | |||||
| 24 | 833697 | Motor, Fan (Replaces: 8170704) |
|
Immediately | $ 109.14 | ||||
| 25 | W11673433 | Clip, Heater (Replaces: 4343918) |
|
$ 148.18 | |||||
| 26 | 8171092 | Harness, Unit |
|
- | |||||
| 27 | W10843121 | Drier (Replaces: 4344268) |
|
Immediately | $ 57.13 | ||||
| 28 | W10309990 | Compressor (includes Items 11, 12, 15, 17 & 27) (Replaces: 8171151) |
|
Immediately | $ 648.47 | ||||
| 31 | 8171088 | Shroud |
|
- | |||||
| 32 | 8170907 | Bracket, Fan Motor |
|
- | |||||
| 34 | 8170901 | Clip, Drier |
|
- | |||||
| 39 | 4343845 | Grommet (4) |
|
- | |||||
| 40 | 4344562 | Screw |
|
- | |||||
| 42 | 4344219 | Clip, Evaporator |
|
- | |||||
| 43 | 8171147 | Screw |
|
- | |||||
| 44 | 4343847 | Screw |
|
- | |||||
| 53 | 4344292 | Screw |
|
- | |||||
| 54 | 4344287 | Plug, Button |
|
- | |||||
| 55 | N/A | And Optional Parts Not Included |
|
- | |||||
| 55 | 876764 | Valve, Access(3/16``) |
|
Immediately | $ 95.92 | ||||
| 55 | WP978025 | Valve, Access (1/4``) (Replaces: 978025) |
|
Immediately | $ 110.51 | ||||
| 55 | 8171090 | Tube, Discharge |
|
- | |||||
| 55 | 978026 | Valve, Access (5/16``) |
|
Immediately | $ 134.49 | ||||
| 55 | SF5538 | Valve, Access (3/8``) (Replaces: 978027) |
|
$ 21.64 | |||||
| 55 | 978028 | Valve, Access (1/2) |
|
- | |||||
| 55 | 978029 | Valve Access (5/8``) |
|
$ 93.85 | |||||
| 55 | 978030 | Valve, Access (3/4``) |
|
$ 137.25 |
