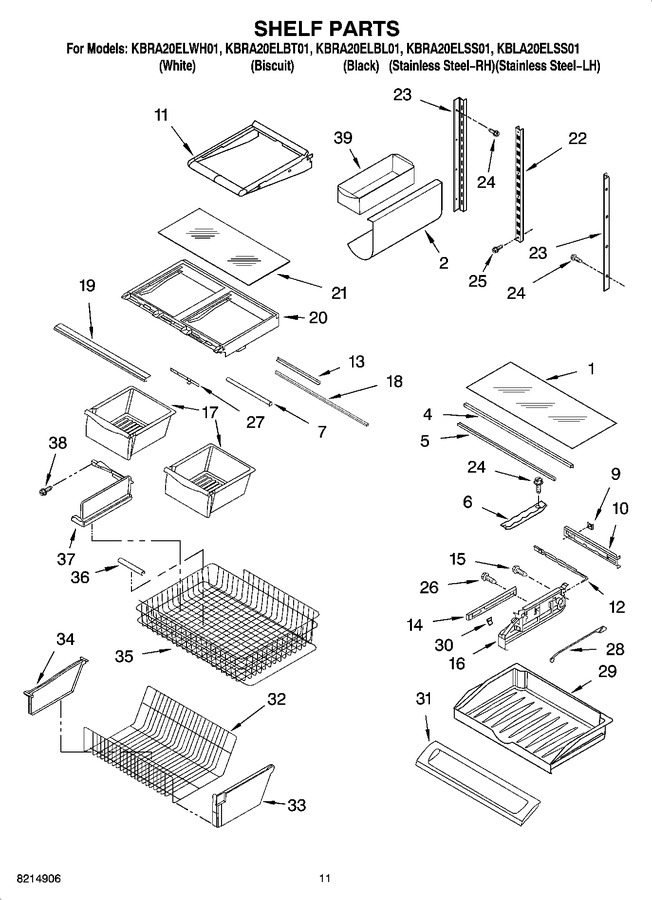

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP67002332 | Glass, Pantry (Replaces: 8171055) |
|
Immediately | $ 251.30 | ||||
| 2 | 8170799 | Rack, Wine |
|
- | |||||
| 4 | W11812285 | Support, Pantry (2) (Replaces: 8171057) |
|
$ 53.33 | |||||
| 5 | WP12227305WD | Brace, Pantry (2) (Replaces: 8171056) |
|
$ 108.36 | |||||
| 6 | WP67001719 | Track, Pantry (Replaces: 8171046) |
|
Immediately | $ 8.99 | ||||
| 7 | WP67003417 | Seal, Front (Replaces: 8171050) |
|
$ 9.70 | |||||
| 9 | 67002329 | Gasket, Pantry (Replaces: 8171054) |
|
$ 22.09 | |||||
| 10 | 12656202 | Housing, Control (Replaces: 8171059) |
|
$ 148.84 | |||||
| 11 | 8171043 | Shelf Assembly |
|
- | |||||
| 12 | WP67003793 | Slide, Temperature (Replaces: 8171044) |
|
Immediately | $ 78.49 | ||||
| 13 | WP67002513 | Seal, Rear Crisper (2) (Replaces: 8171051) |
|
$ 7.98 | |||||
| 14 | WPW10235370 | Glide, Drawer (2) (Replaces: 8171065) |
|
Immediately | $ 298.06 | ||||
| 15 | 4344523 | Screw |
|
- | |||||
| 16 | WP12656105 | Track, Pantry (left) (Replaces: 8171058) |
|
Immediately | $ 58.41 | ||||
| 16 | WP12656018 | Track, Pantry (right) (Replaces: 8171063) |
|
Immediately | $ 61.09 | ||||
| 17 | WP67002659 | Crisper (2) (Replaces: 8171053) |
|
Immediately | $ 171.29 | ||||
| 18 | WP12227304WD | Support, Crisper Cover (Replaces: 8171052) |
|
$ 108.69 | |||||
| 19 | 8171048 | Trim, Crisper |
|
- | |||||
| 20 | WP67006185 | Frame, Crisper (Replaces: 8171047) |
|
$ 245.70 | |||||
| 21 | WP67006655 | Glass, Crisper Cover (Replaces: 8171045) |
|
Immediately | $ 248.69 | ||||
| 22 | 8171068 | Ladder, Center |
|
- | |||||
| 23 | 8171069 | Ladder, Side |
|
- | |||||
| 24 | 67006425 | Screw (Replaces: 4344396) |
|
Immediately | $ 7.30 | ||||
| 25 | 8170578 | Screw |
|
- | |||||
| 26 | WPW10348409 | Screw (Replaces: 4344333) |
|
Immediately | $ 8.20 | ||||
| 27 | WP67005864 | Slide, Humidity Control (Replaces: 8171049) |
|
Immediately | $ 8.20 | ||||
| 28 | 67003794 | Rod, Temperature Control (Replaces: 8171064) |
|
$ 13.82 | |||||
| 29 | W11490183 | Drawer, Pantry (Replaces: 8171061) |
|
Immediately | $ 144.29 | ||||
| 30 | W11498983 | Knob, Temperature Control (Replaces: 8171062) |
|
$ 30.64 | |||||
| 31 | W10827015 | Door, Pantry Drawer (Replaces: 8171060) |
|
Immediately | $ 197.21 | ||||
| 32 | 8170815 | Basket, Freezer Lower |
|
- | |||||
| 33 | 8170820 | Endcap, Basket (right) |
|
- | |||||
| 33 | 8170816 | Endcap, Basket (left) |
|
- | |||||
| 34 | 8171080 | Divider, Lower Basket |
|
- | |||||
| 35 | 8171070 | Basket, Freezer Upper |
|
- | |||||
| 36 | 8171071 | Handle, Freezer Basket |
|
- | |||||
| 37 | 8171072 | Divider, Upper Basket |
|
- | |||||
| 38 | 8171073 | Screw |
|
- | |||||
| 39 | W10136387A | Bin, Egg (Replaces: 8170709) |
|
$ 19.54 |
