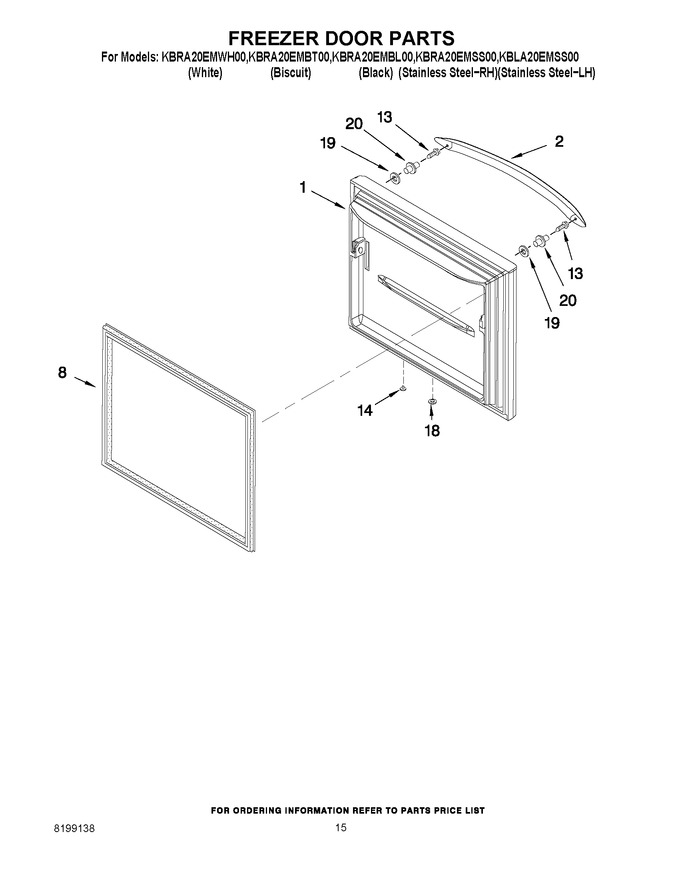

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8171178 | Freezer Door (includes Insulation) (stainless Steel) |
|
- | |||||
| 1 | 8171180 | Freezer Door (includes Insulation) (biscuit) |
|
- | |||||
| 1 | 8171179 | Freezer Door (includes Insulation) (black) |
|
- | |||||
| 1 | 8171181 | Freezer Door (includes Insulation) (white) |
|
- | |||||
| 2 | 8171182 | Handle (black) |
|
- | |||||
| 2 | 8171183 | Handle (biscuit) |
|
- | |||||
| 2 | 8171184 | Handle (white) |
|
- | |||||
| 2 | 8171176 | Handle (stainless) |
|
- | |||||
| 8 | W10436252 | Door Gasket, Magnetic (black) (Replaces: 8171186) |
|
Immediately | $ 362.28 | ||||
| 8 | 8171185 | Door Gasket, Magnetic (white) |
|
- | |||||
| 13 | WP3387230 | Screw (Replaces: 8170956) |
|
Immediately | $ 8.54 | ||||
| 14 | 67004838 | Plug, Button (black) (Replaces: 8170979) |
|
$ 11.21 | |||||
| 14 | 8170978 | Plug, Button (white) |
|
- | |||||
| 18 | 4343926 | Plug, Button (black) |
|
- | |||||
| 18 | 8170953 | Plug, Button (white) |
|
- | |||||
| 19 | 8171021 | Washer |
|
- | |||||
| 20 | 8171017 | Stud, Handle |
|
- |
