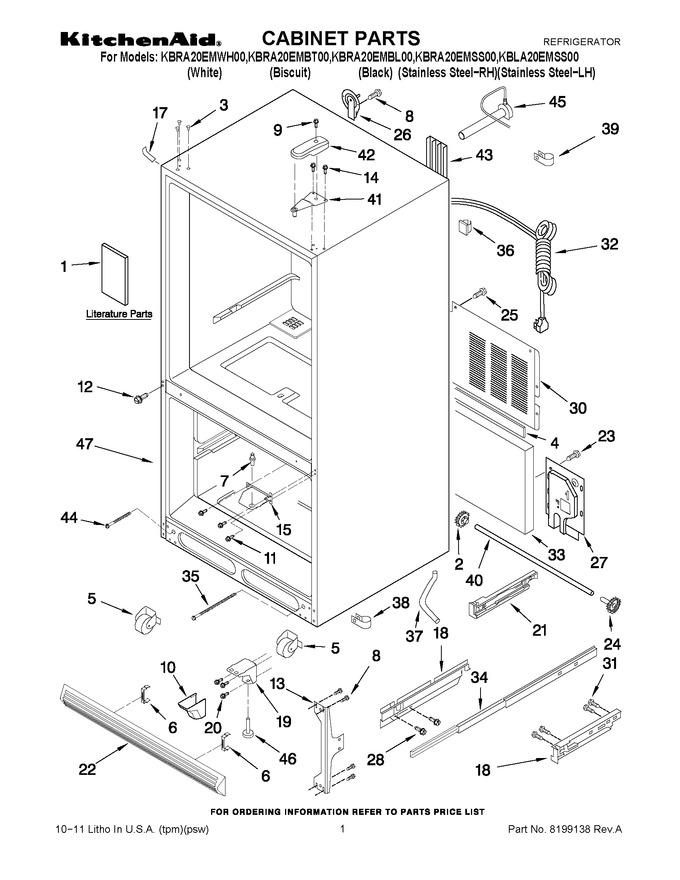

01 - Cabinet Parts


02 - Freezer Liner Parts


03 - Refrigerator Liner Parts


04 - Refrigerator Door Parts


05 - Unit Parts


06 - Shelf Parts


07 - Icemaker Parts


08 - Freezer Door Parts


09 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8208158		Tech Sheet		Appelez-nous	-
1	8208159		Owners Manual		Appelez-nous	-
1	8208160		Guide, Energy		Appelez-nous	-
2	12002497		Gear (l.h.)   (Replaces: 8171236)			Immediately	$ 22.51
3	WP2189000		Plug, Button (3) (white)   (Replaces: 4344209)			Immediately	$ 7.77
3	8170487		Plug, Button (3) (biscuit)		Appelez-nous	-
3	WP2189009		Plug, Button (3) (black)   (Replaces: 4344208)				$ 7.61
4	8170924		Gasket		Appelez-nous	-
5	8170886		Roller Assembly		Appelez-nous	-
6	8170869		Clip, Grille		Appelez-nous	-
7	12002311		Pin, Center Hinge   (Replaces: 8171216)				$ 8.24
8	WP98165		Screw   (Replaces: 4343675)				$ 8.57
9	4343715		Screw		Appelez-nous	-
10	8171004		Hinge Cover, Bottom (white)		Appelez-nous	-
10	8171002		Hinge Cover, Bottom (black)		Appelez-nous	-
10	8171003		Hinge Cover, Bottom (biscuit)		Appelez-nous	-
11	W11573362		Screw   (Replaces: 4344186)				$ 14.72
12	WP489349		Screw   (Replaces: 8170373)			Immediately	$ 8.43
13	WPW10330991		Bracket, Door (left Side)   (Replaces: 8171270)				$ 164.31
13	WPW10330993		Bracket, Door (right Side)   (Replaces: 8171271)				$ 166.09
14	WP489349		Screw   (Replaces: 4344198)			Immediately	$ 8.43
15	W11689473		Hinge, Center (white)   (Replaces: 8170981)				$ 69.79
15	WP12607104ED		Hinge, Center (black)   (Replaces: 8170980)				$ 167.35
17	8170859		Cover, Corner (biscuit)		Appelez-nous	-
17	67003484		Cover, Corner (white)   (Replaces: 8170860)				$ 21.42
17	67003485		Cover, Corner (black)   (Replaces: 8170858)			Immediately	$ 22.14
18	8171269		Bracket, Slide (2) (right)		Appelez-nous	-
18	8171268		Bracket, Slide (2) (left)		Appelez-nous	-
19	8171067		Hinge Bottom (white)		Appelez-nous	-
19	8171066		Hinge Bottom (black)		Appelez-nous	-
20	WP67006715		Screw   (Replaces: 8170455)				$ 7.55
21	W10251557		Bracket, Gear (left Side)   (Replaces: 8171273)				$ 110.04
21	W10251557		Bracket, Gear (right Side)   (Replaces: 8171274)				$ 110.04
22	8170866		Grille Assembly (includes Clips) (white)		Appelez-nous	-
22	8170867		Grille Assembly (includes Clips) (black)		Appelez-nous	-
22	8170868		Grille Assembly (includes Clips) (biscuit)		Appelez-nous	-
23	681390		Screw   (Replaces: 4343694)				$ 13.71
24	12002497		Gear (r.h.)   (Replaces: 8171237)			Immediately	$ 22.51
25	4344167		Screw		Appelez-nous	-
26	12726003		Cover, Water Line   (Replaces: 8208155)				$ 19.19
27	8171287		Cover, Water Valve		Appelez-nous	-
28	WP489474		Screw   (Replaces: 4343690)			Immediately	$ 8.55
30	8171093		Cover, Unit		Appelez-nous	-
31	WP489474		Screw   (Replaces: 4343690)			Immediately	$ 8.55
32	WP67006506		Power Cord   (Replaces: 8170925)				$ 27.74
33	8171247		Insulation, Sound		Appelez-nous	-
34	8171267		Slide, Drawer (2)		Appelez-nous	-
35	8170967		Bolt, Adjusting (rear)		Appelez-nous	-
36	8171100		Clip, Cord		Appelez-nous	-
37	8170861		Tube, Drain		Appelez-nous	-
38	67001067		Clip, Drain Tube   (Replaces: 8170862)				$ 9.66
39	8208156		Clamp, Tube		Appelez-nous	-
40	W11028221		Shaft   (Replaces: 8171278)				$ 33.24
41	WP12566606ED		Hinge, Top   (Replaces: 8170974)			Immediately	$ 47.13
42	8170976		Cover, Hinge (biscuit)		Appelez-nous	-
42	67001012		Cover, Hinge (black)   (Replaces: 8170975)				$ 49.71
42	67001014		Cover, Hinge (white)   (Replaces: 8170977)				$ 22.34
43	8208152		Track, Water Line		Appelez-nous	-
44	71003131		Bolt, Adjusting (front)   (Replaces: 8170972)			Immediately	$ 7.08
45	W11817981		Fill Tube Assy.   (Replaces: 8208154)			Immediately	$ 91.27
46	W11177593		Foot Break   (Replaces: 8171272)				$ 12.18
47	N/P		Cabinet (not A Serviceable Part)		Appelez-nous	-
