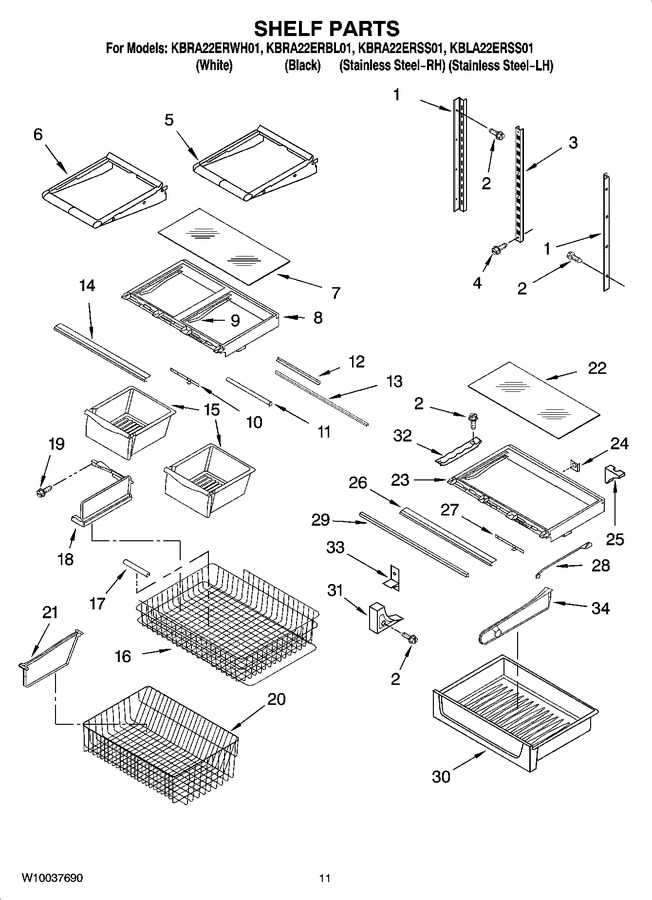

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8208370 | Ladder, Side |
|
- | |||||
| 2 | 67006425 | Screw (Replaces: 4344396) |
|
Immediately | $ 7.30 | ||||
| 3 | 67001073 | Ladder, Center (Replaces: 8208336) |
|
$ 56.89 | |||||
| 4 | 8170578 | Screw |
|
- | |||||
| 5 | 8208351 | Shelf, Fixed (2) |
|
- | |||||
| 6 | 8208352 | Shelf, Glide (2) |
|
- | |||||
| 7 | WP67006878 | Glass, Crisper (Replaces: 8208353) |
|
Immediately | $ 223.47 | ||||
| 8 | WPW10568041 | Frame, Crisper (Replaces: 8171129) |
|
Immediately | $ 157.90 | ||||
| 9 | WPW10671238 | Support, Center Crisper Drawer (Replaces: 8208354) |
|
Immediately | $ 118.46 | ||||
| 10 | WP67005864 | Slide, Humidity Control (Replaces: 8171049) |
|
Immediately | $ 8.20 | ||||
| 11 | 8208355 | Seal, Front Crisper (2) |
|
- | |||||
| 12 | 8208356 | Seal, Rear Crisper (2) |
|
- | |||||
| 13 | WP12227303WD | Support, Crisper Frame (Replaces: 8208357) |
|
$ 111.25 | |||||
| 14 | W10231483 | Trim, Crisper (Replaces: 8208358) |
|
$ 117.01 | |||||
| 15 | 8208359 | Pan, Crisper (2) |
|
- | |||||
| 16 | 8171130 | Basket, Freezer (upper) |
|
- | |||||
| 17 | 8208220 | Handle, Basket |
|
- | |||||
| 18 | 8171226 | Divider, Upper Basket |
|
- | |||||
| 19 | 8171073 | Screw |
|
- | |||||
| 20 | 8171225 | Basket, Freezer (lower) |
|
- | |||||
| 21 | 8171227 | Divider, Lower Basket |
|
- | |||||
| 22 | WP67006878 | Glass, Pantry (Replaces: 8208353) |
|
Immediately | $ 223.47 | ||||
| 23 | WPW10568041 | Frame, Pantry (Replaces: 8171129) |
|
Immediately | $ 157.90 | ||||
| 24 | 8208361 | Gasket, Pantry |
|
- | |||||
| 25 | WP12531601 | Air Duct, Pantry (Replaces: 8208360) |
|
$ 11.04 | |||||
| 26 | W10656985 | Trim, Pantry (Replaces: 8208362) |
|
$ 137.68 | |||||
| 27 | 8208363 | Slide, Pantry Control |
|
- | |||||
| 28 | 8208364 | Rod, Temperature Control |
|
- | |||||
| 29 | WP12227303WD | Support, Rear (Replaces: 8208357) |
|
$ 111.25 | |||||
| 30 | 8208375 | Drawer, Pantry |
|
- | |||||
| 31 | WP67001722 | Support, Pantry (right) (Replaces: 8208367) |
|
Immediately | $ 8.93 | ||||
| 31 | WP67001721 | Support, Pantry (left) (Replaces: 8208366) |
|
Immediately | $ 8.70 | ||||
| 32 | WP67001719 | Track, Pantry (Replaces: 8171046) |
|
Immediately | $ 8.99 | ||||
| 33 | WP67001716 | Hook (2) (Replaces: 8208369) |
|
Immediately | $ 11.14 | ||||
| 34 | 8208383 | Divider, Pantry |
|
- |
