Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 8171193 Refrigerator Door Panel (includes Insulation) (biscuit) Appelez-nous -
1 12658533BQ Refrigerator Door Panel (includes Insulation) (black)   (Replaces: 8171196) Special Order $ 706.61

1 8171195 Refrigerator Door Panel (includes Insulation) (stainless Steel Rh) Appelez-nous -
1 8171174 Refrigerator Door Panel (includes Insulation) (stainless Steel Lh) Appelez-nous -
1 8171194 Refrigerator Door Panel (includes Insulation) (white) Appelez-nous -
3 WP12744905 Door, Dairy (includes 4)   (Replaces: 8171204) Special Order $ 113.99

4 WP67001279 Tray, Dairy   (Replaces: 8170793) In-Stock Immediately $ 88.01

5 8170751 Shelf Bin (3) (medium) Appelez-nous -
6 WP67001130 Plug, Handle Hole (white)   (Replaces: 8170791) In-Stock Immediately $ 8.21

6 WP12246608 Plug, Handle Hole (black)   (Replaces: 8170792) In-Stock Immediately $ 8.15

6 8171018 Plug, Handle Hole (biscuit) Appelez-nous -
7 WP67005626 Caddy, Can   (Replaces: 8171020) Special Order $ 81.49

8 8171197 Door Gasket, Magnetic (white) Appelez-nous -
8 WPW10436248 Door Gasket, Magnetic (black)   (Replaces: 8170758) Special Order $ 335.15

9 8171176 Door Handle (stainless Steel) Appelez-nous -
9 8171184 Door Handle (white) Appelez-nous -
9 8171183 Door Handle (biscuit) Appelez-nous -
9 8171182 Door Handle (black) Appelez-nous -
10 4344296 Dish, Butter Appelez-nous -
11 WP67003638 Door Closure (white)   (Replaces: 8171245) In-Stock Immediately $ 8.15

11 WP67003639 Door Closure (black)   (Replaces: 8171246) Special Order $ 90.32

14 8170795 Trim, Door Shelf Appelez-nous -
15 8171212 Washer Appelez-nous -
16 8171017 Stud, Handle Appelez-nous -
17 W11708403 Stop, Door (black)   (Replaces: 8171214) In-Stock Immediately $ 14.75

17 67003781 Stop, Door (biscuit)   (Replaces: 8171206) Special Order $ 83.12

17 12968202W Stop, Door (white)   (Replaces: 8171205) Special Order $ 69.29

18 67004838 Plug, Button (black)   (Replaces: 8170979) Special Order $ 11.21

18 8170978 Plug, Button (white) Appelez-nous -
21 WPW10348409 Screw   (Replaces: 4344333) In-Stock Immediately $ 8.20

22 WP3387230 Screw   (Replaces: 8170956) In-Stock Immediately $ 8.54

23 67004978 Bushing (black)   (Replaces: 8171213) Special Order $ 22.10

23 4344362 Bushing (white) Appelez-nous -
24 8170953 Plug, Button (white) Appelez-nous -
24 4343926 Plug, Button (black) Appelez-nous -
25 8170733 Nameplate (biscuit) Appelez-nous -
25 8170732 Nameplate (black) Appelez-nous -
25 8170734 Nameplate (white) Appelez-nous -

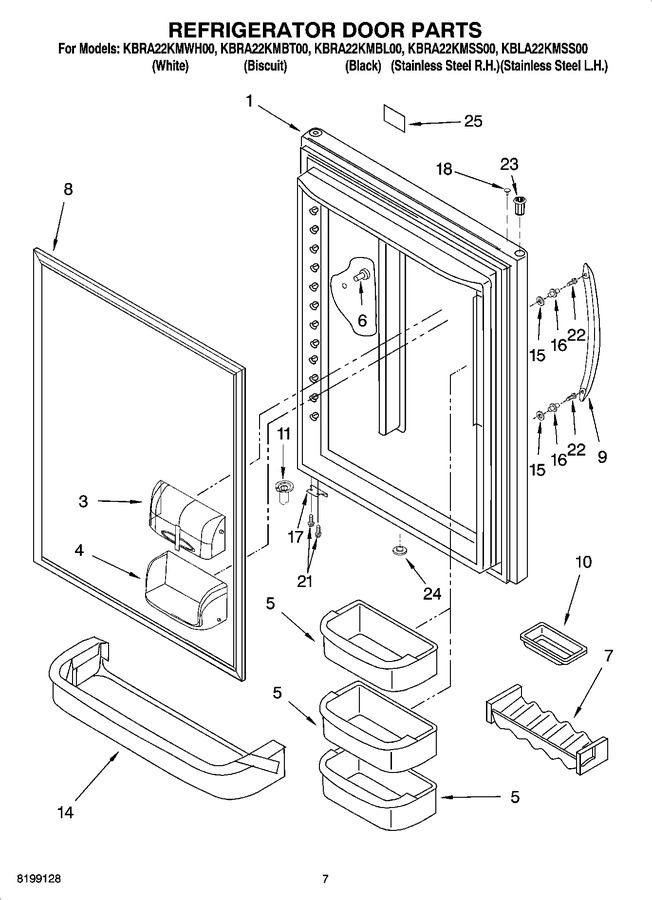

    View Diagram in Separate Window     Print Icon   Print Part List
