Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 8171194 Refrigerator Door (w/ Insulation) (white) Appelez-nous -
1 12658533BQ Refrigerator Door (w/ Insulation) (black)   (Replaces: 8171196) Special Order $ 706.61

1 8171195 Refrigerator Door (w/ Insulation) (stainless Steel-rh) Appelez-nous -
1 8171174 Refrigerator Door (w/ Insulation) (stainless Steel-lh) Appelez-nous -
2 67004838 Plug, Vent (black)   (Replaces: 8208213) Special Order $ 11.21

2 8208212 Plug, Vent (white) Appelez-nous -
3 WP12744905 Door, Compartment   (Replaces: 8171204) Special Order $ 113.99

4 WP67001279 Tray, Dairy   (Replaces: 8170793) In-Stock Immediately $ 88.01

5 WPW10371195 Bin, Shelf (3) (medium)   (Replaces: 8208272) In-Stock Immediately $ 87.37

6 WP67001130 Plug, Handle Hole (white)   (Replaces: 8170791) In-Stock Immediately $ 8.21

6 WP12246608 Plug, Handle Hole (black)   (Replaces: 8170792) In-Stock Immediately $ 8.15

7 4344296 Dish, Butter Appelez-nous -
8 WPW10436248 Gasket, Door Magnetic (black)   (Replaces: 8170758) Special Order $ 335.15

8 8171197 Gasket, Door Magnetic (white) Appelez-nous -
9 8171182 Handle, Door (black) Appelez-nous -
9 8171184 Handle, Door (white) Appelez-nous -
9 8171176 Handle, Door (stainless Steel) Appelez-nous -
10 WP3387230 Screw   (Replaces: 8170956) In-Stock Immediately $ 8.54

11 WP67003638 Closure, Door (white)   (Replaces: 8171245) In-Stock Immediately $ 8.15

11 WP67003639 Closure, Door (black)   (Replaces: 8171246) Special Order $ 90.32

12 8208310 Bin, Shelf (1) (small) Appelez-nous -
13 WP67004977 Bushing (white)   (Replaces: 8208208) Special Order $ 8.20

13 67004978 Bushing (black)   (Replaces: 8171213) Special Order $ 22.10

14 8170795 Trim, Door Shelf Appelez-nous -
15 WP98165 Screw   (Replaces: 8208166) Special Order $ 8.57

16 8171212 Washer Appelez-nous -
17 12968202W Stop, Door (white)   (Replaces: 8171205) Special Order $ 69.29

17 W11708403 Stop, Door (black)   (Replaces: 8171214) In-Stock Immediately $ 14.75

18 8171220 Stud, Handle Appelez-nous -
19 WP67005626 Caddy, Can   (Replaces: 8208274) Special Order $ 81.49

20 W10136387A Bin, Egg   (Replaces: 8170709) Special Order $ 19.54

22 4343926 Plug, Button (black) Appelez-nous -
22 8170953 Plug, Button (white) Appelez-nous -
23 8170732 Nameplate (black) Appelez-nous -
23 8170734 Nameplate (white) Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

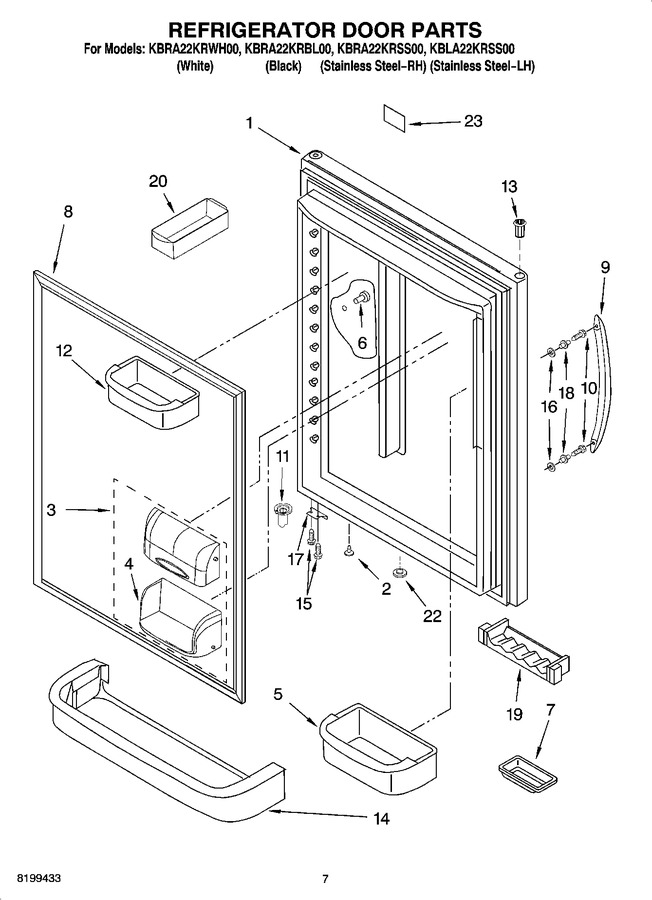

Diagram for KBRA22KRWH00
