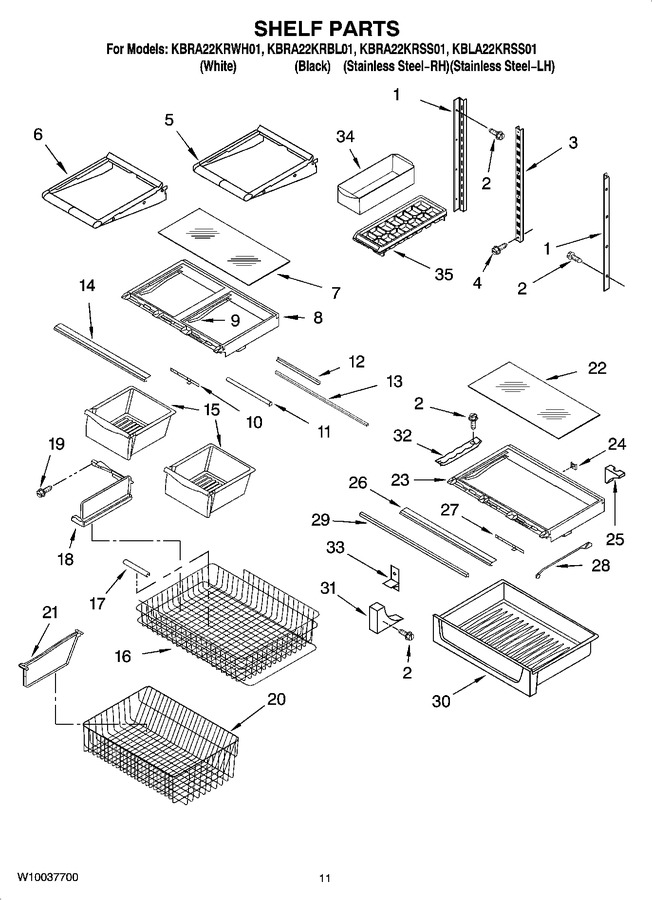

SELECT A DIAGRAM

01 - Cabinet Parts


02 - Freezer Liner Parts


03 - Freezer Door Parts


04 - Refrigerator Liner Parts


05 - Refrigerator Door Parts


06 - Unit Parts


07 - Shelf Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8208370		Ladder, Side		Appelez-nous	-
2	67006425		Screw   (Replaces: 4344396)			Immediately	$ 7.30
3	67001073		Ladder, Center   (Replaces: 8208336)				$ 56.89
4	8170578		Screw		Appelez-nous	-
5	8208351		Shelf, Fixed (2)		Appelez-nous	-
6	8208352		Shelf, Glide (2)		Appelez-nous	-
7	WP67006878		Glass, Crisper   (Replaces: 8208353)			Immediately	$ 223.47
8	WPW10568041		Frame, Crisper   (Replaces: 8171129)			Immediately	$ 157.90
9	WPW10671238		Support, Center Crisper Drawer   (Replaces: 8208354)			Immediately	$ 118.46
10	WP67005864		Slide, Humidity Control   (Replaces: 8171049)			Immediately	$ 8.20
11	8208355		Seal, Front Crisper (2)		Appelez-nous	-
12	8208356		Seal, Rear Crisper (2)		Appelez-nous	-
13	WP12227303WD		Support, Crisper Frame   (Replaces: 8208357)				$ 111.25
14	W10231483		Trim, Crisper   (Replaces: 8208358)				$ 117.01
15	8208359		Pan, Crisper (2)		Appelez-nous	-
16	8171130		Basket, Freezer (upper)		Appelez-nous	-
17	8208220		Handle, Basket		Appelez-nous	-
18	8171226		Divider, Upper Basket		Appelez-nous	-
19	8171073		Screw		Appelez-nous	-
20	8171225		Basket, Freezer (lower)		Appelez-nous	-
21	8171227		Divider, Lower Basket		Appelez-nous	-
22	WP67006878		Glass, Pantry   (Replaces: 8208353)			Immediately	$ 223.47
23	WPW10568041		Frame, Pantry   (Replaces: 8171129)			Immediately	$ 157.90
24	8208361		Gasket, Pantry		Appelez-nous	-
25	WP12531601		Air Duct, Pantry   (Replaces: 8208360)				$ 11.04
26	W10656985		Trim, Pantry   (Replaces: 8208362)				$ 137.68
27	8208363		Slide, Pantry Control		Appelez-nous	-
28	8208364		Rod, Temperature Control		Appelez-nous	-
29	WP12227303WD		Support, Rear   (Replaces: 8208357)				$ 111.25
30	8208365		Drawer, Pantry		Appelez-nous	-
31	WP67001721		Support, Pantry (left)   (Replaces: 8208366)			Immediately	$ 8.70
31	WP67001722		Support, Pantry (right)   (Replaces: 8208367)			Immediately	$ 8.93
32	WP67001719		Track, Pantry   (Replaces: 8171046)			Immediately	$ 8.99
33	WP67001716		Hook (2)   (Replaces: 8208369)			Immediately	$ 11.14
34	8208348		Bin, Utility		Appelez-nous	-
35	WP841180A		Tray, Ice Cube   (Replaces: 8170800)			Immediately	$ 47.84
	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 40.12
	542639		Cement, Alumilastic 1-1/4 Oz.)		Appelez-nous	-
	833938		Kit, Terminal Connector				$ 8.47
	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
	479502		Tape, Vinyl 3/4 X 108``)				$ 66.77
	212643		Sealer, Gum (4 Feet)			Immediately	$ 96.42
	N/A		Miscellaneous		Appelez-nous	-
	799340		Paint, Bulk (1 Qt.) (black (uncut))		Appelez-nous	-
	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
	350942		Paint, Pressurized Spray (12 Oz.) (primer, White)				$ 94.14
	285006		Paint, Pressurized Spray (12 Oz.) (black)   (Replaces: 350939)				$ 59.89
	WP542638		Grease, Silicone (1/2 Oz.)   (Replaces: 542638)			Immediately	$ 12.78
	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 123.84
	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 182.65
	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
	1117510		Torx Key				$ 5.84
	2217192		Cleaner, (stainless Steel)		Appelez-nous	-
	4396418		Amkit02				$ 383.28
