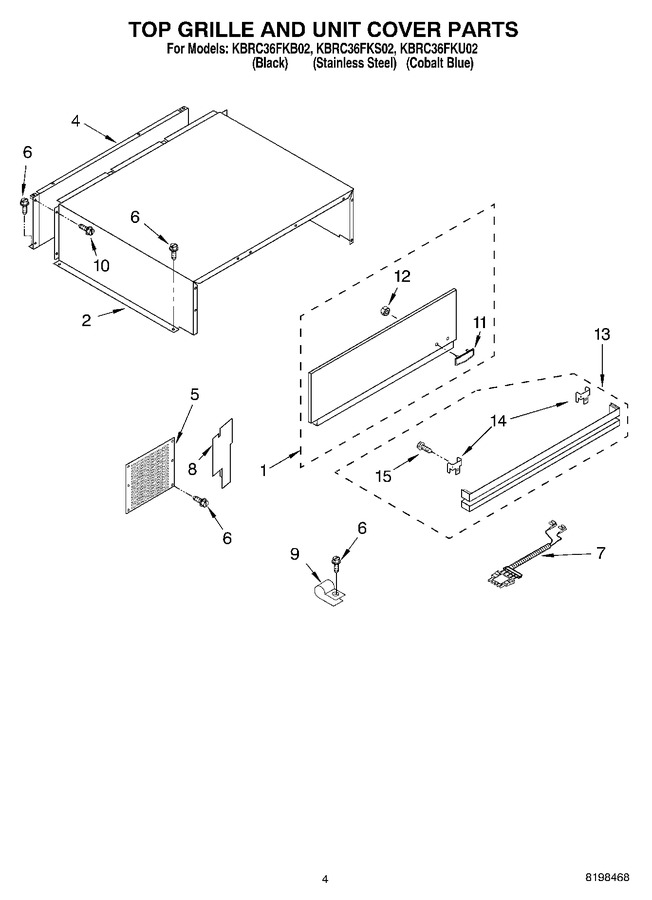

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2215952S		Top Grille Assembly (stainless Steel)		Appelez-nous	-
1	2259198CB		Top Grille Assembly (cobalt Blue)		Appelez-nous	-
1	2215952B		Top Grille Assembly (black)		Appelez-nous	-
2	2209490		Cover, Unit		Appelez-nous	-
4	2256466		Back Panel   (Replaces: 2215830)				$ 327.22
5	2209492		Guard, Wiring		Appelez-nous	-
6	WP965173		Screw   (Replaces: 487415)			Immediately	$ 11.87
7	2187423		Wire Assembly		Appelez-nous	-
8	2215684		Baffle-air, Condenser		Appelez-nous	-
9	489348		Clamp		Appelez-nous	-
10	WP681414		Screw, 10-12 X 1/2   (Replaces: 488908)			Immediately	$ 8.47
11	2005292		Nameplate (flat Black)				$ 52.20
11	8270201		Nameplate (cobalt Blue)		Appelez-nous	-
12	WP2004333		Nut   (Replaces: 2004333)				$ 11.24
13	2215970B		Louver, Vent (black)		Appelez-nous	-
13	2215970S		Louver, Vent (stainless Steel)		Appelez-nous	-
14	2254759		Bracket, Louver		Appelez-nous	-
15	303776		Screw, 8-32 X 5/16   (Replaces: 488879)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
