Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 2257410S Top Grille Assembly (stainless Steel) Appelez-nous -
2 2259320 Cover, Unit Appelez-nous -
4 2256466 Back Panel Special Order $ 327.22

5 2259095 Front, Unit Cover Appelez-nous -
6 WP965173 Screw   (Replaces: 487415) In-Stock Immediately $ 11.87

7 2187423 Wire Assembly Appelez-nous -
9 489348 Clamp Appelez-nous -
11 2005292 Nameplate Special Order $ 52.20

12 WP2004333 Nut   (Replaces: 2004333) Special Order $ 11.24

13 2254765S Louver, Vent (stainless Steel) Appelez-nous -
14 2254759 Bracket, Louver Appelez-nous -
15 303776 Screw, 8-32 X 5/16   (Replaces: 488879) Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

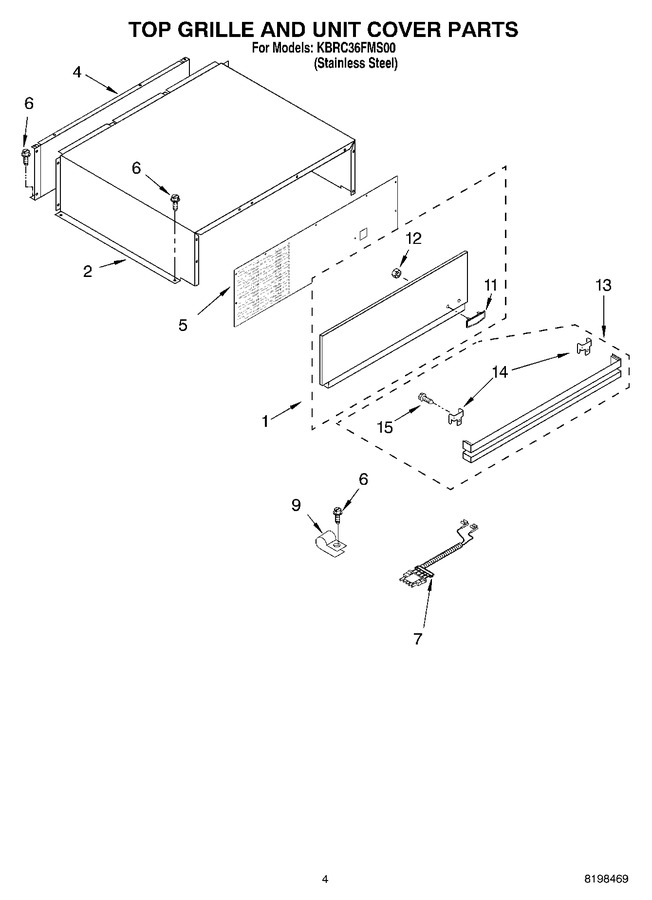

Diagram for KBRC36FMS00
